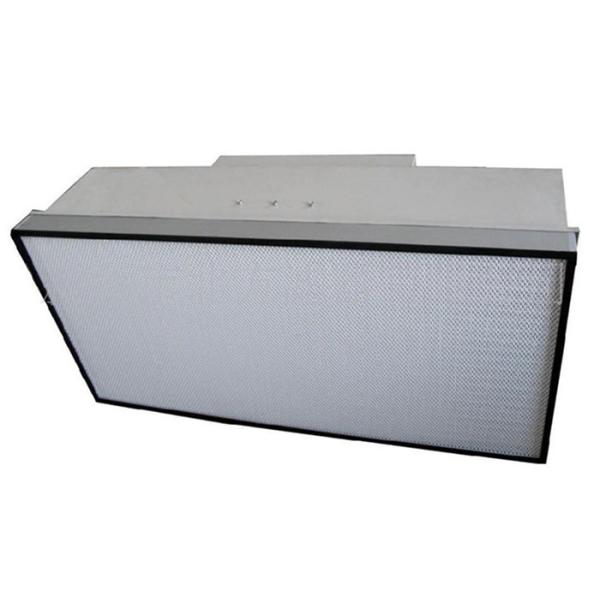

220V HEPA Filter Box For Semi - conduction Workshop / Large Air Volume Fan Filter Unit
220V HEPA Filter Box For Semi - conduction Workshop / Large Air Volume Fan Filter Unit
220V HEPA Filter Box For Semi - conduction Workshop / Large Air Volume Fan Filter Unit
220V HEPA Filter Box For Semi - conduction Workshop / Large Air Volume Fan Filter Unit
Specifications
Brand Name :
KELING
Model Number :
KEL-FFU Series
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 Sets per month
Delivery Time :
7-15 working days for sample order
Packaging Details :
Standard carton and Polywood packing
Name :
Hepa Fan Filter Unit
Material :
SS304
External Size :
920X615X350mm
Air Flow :
900m³/h
Air Velocity :
0.3-0.6m/S
Power Supply :
220V
Description

Semi-conduction Workshop Cleanroom Large Air Volume Fan Filter Unit

CUSTOMIZED DESIGN IS AVAILABLE

Introduction:

It is designed to provide filtered laminar air flow over a specific area, the unit integrates a high efficiency fan together with a HEPA/ULPA Filter. the FFU in contaminated air from the top of the module and exhausts filtered clean air vertically in a unidirectional air stream at its base.

Applications: conventional clean room construction, soft wall or hard wall clean room,

Operating features:

1: Light weight, corrosion-resistance construction is completely smooth and clean room –compatible.

2: Proprietary construction technology creates better air flow uniformity across the entire filter face for superior laminar flow band protection.

3: Standard blower speed controller allows for easy adjusting of the FFU speed controller. equipped with overheating protection inside.

4:it is operates at low noise and power consumption levels

Warranty:


Our equipment is warranty for 2 years excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.

Basic Info:

Product Name Hepa Fan Filter Unit/Clean Room FFU Air Purifier/Hepa Filter FFU Air Purifier
Brand OEM/ODM
Material SUS304,SUS201,SS304, Cold rolled plate
Size Customized
MOQ 1 SET
Delivery Time 7-15 working days
Shipping Port Guangzhou, Shenzhen, Shanghai
Warranty 2 years
Packing Polywood packing
Payment T/T,L/C, West Union, D/P, Cash

Specifications:

MODEL KEL-FFU615 KEL-FFU920 KEL-FFU1175 KEL-FFU1225

External size (mm)

(WXDXH)

 615X615X350 920x615x350 1175x575x350 1225X615X350
Material Steel plate with painting/galvanized steel/aluminum/stainless steel
Air flow(m3/h) 600 800 1000 1200
Air velocity (m/s) 0.3/0.35/0.4/0.45/0.5
Pressure(pa) 97(10mmAq)
Control system 1: Power on/off 2: Control air speed up/down
HEPA FILTER Size(mm) 610X610X69 915X610X69 1170x570x69 1220x610x69
Efficiency(%) 99.995% @ 0.3um
Pressure (pa) <220pa @ 0.45m/s
Power supply 220V/110V ,50/60HZ
Power (w) 115w 115w 123w 172w
Noise (Db) 57 57 57 57
