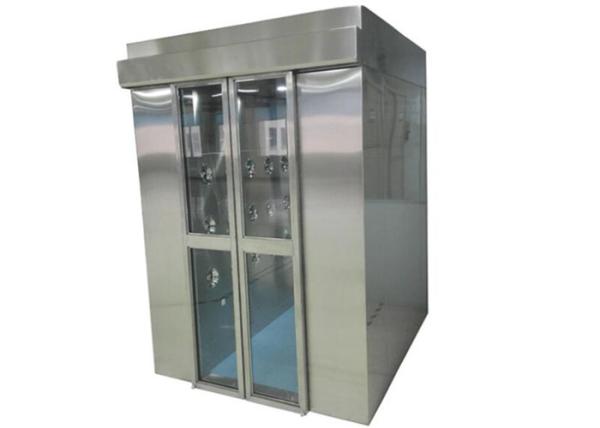

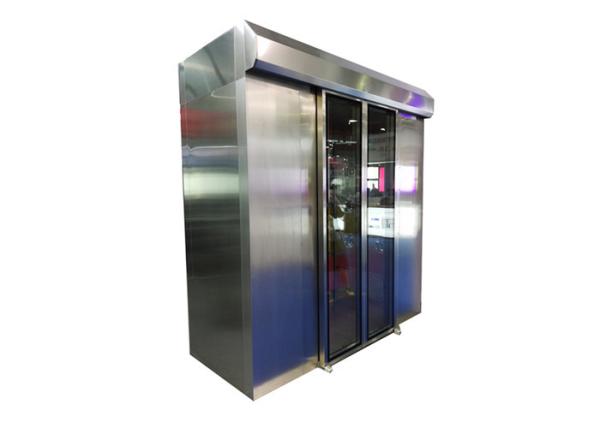

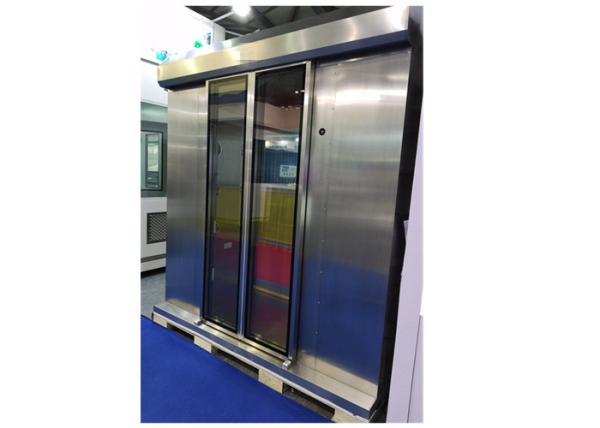

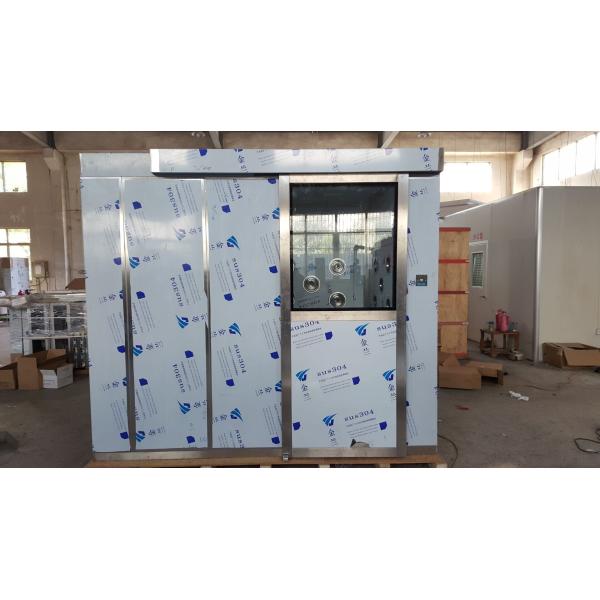

Auto Slide Door Clean Room Air Shower With Three Side Blowing Class 1000
Auto Slide Door Clean Room Air Shower With Three Side Blowing Class 1000
Auto Slide Door Clean Room Air Shower With Three Side Blowing Class 1000
Auto Slide Door Clean Room Air Shower With Three Side Blowing Class 1000
Auto Slide Door Clean Room Air Shower With Three Side Blowing Class 1000
Auto Slide Door Clean Room Air Shower With Three Side Blowing Class 1000
Auto Slide Door Clean Room Air Shower With Three Side Blowing Class 1000
Auto Slide Door Clean Room Air Shower With Three Side Blowing Class 1000
Auto Slide Door Clean Room Air Shower With Three Side Blowing Class 1000
Auto Slide Door Clean Room Air Shower With Three Side Blowing Class 1000
Specifications
Brand Name :
KELING
Model Number :
KEL-AS2000P2
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
7-15 working days
Packaging Details :
Polywood packing
Name :
Auto door air shower
Material :
Stainless Steeel
Air speed :
>25m/s
Features :
AUTO Door
Capacity :
1-2 person
Packing :
Polywood packing
Description

AUTO Slide Door Clean Room Air Shower With Three Side Blowing Class 1000

CUSTOMIZED DESIGN IS AVAILABLE

General Trade Information:

Brand: KELING

Material: inside and outside is stainless steel304 (t=1.0mm)

OEM /ODM: Yes

Certificated: CE and Rosh

Start port: Guangzhou, Shenzhen

MOQ: 1set

Supply ability: 50 sets/one month

Payment term: T/T , L/C , Western union ,

Products Parameter:

MODEL KEL-AS2000P2 KEL-AS2000P3

External size (mm)

(W*D*H)

 2000x2000x2200mm 2000x3000x2200mm

Work zone (mm)

(W*D*H)

 1500x1930x2000mm 1500x2930x2000mm
Air speed (m/s) >25m/s
Door material Stainless steel frame with half glass or full glass
Door control system Auto sliding double door

Material

(Option)

1:Entirety Sus304.(T=1.0/1.2/1.5mm)

2:Entirety sus201. (T=1.0/1.2/1.5mm)

3:External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm)

4:External is steel with power coated. Internal is SUS201(T=1.0/1.2/1.5mm)
Control system

1: Control system with LED display for the shower time.

2: The shower time from 0-99second. (Adjustable)

3: Infrared ray inductor for inside personal shower automatic.

4: Three side blowing with Human voice prompt system.

5: with CE remark.
The power of fan 380V/50HZ/0.75KW(4 sets) 380V/50HZ/0.75KW (6sets)
Nozzle in stain less steel 32 pcs 48pcs
Noise level(dB) <75dB
HEPA FILTER Size(mm) 630X630X80mm (4 sets) 630X630X80mm(6 sets)
Efficiency (%) 99.995% @ 0.3um mini-pleats HEPA Air Filter
Air velocity 1000(m3/h)
Initial resistance(pa) <180pa
Pre-filter Size(mm) 775x380x17
Efficiency (%) 75% @ 0.5um
G3
resistance(pa) <30Pa
parameter Power supply 380v/50HZ 3P 380v/50HZ 3P
Net power(kw) 3kw 4.5 kw
Packing material Standard Export Poly wood Packing(Fumigant free material)
Weigh 650kgs 960kgs

Description:

Air Shower for Cleanroom with air shower nozzles

Air shower is a frequently used equipment in clean room.
It removes dust particles on the surface of the goods effectively to so that dusts will not be brought in to the clean room by goods.
Meanwhile, air shower works as an air lock which separates clean area and unclean area to keep the pressure in the clean room steady.

Application: Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care,
Pharmacy,auto glass and precision parts.

Auto Slide Door Clean Room Air Shower With Three Side Blowing Class 1000

Auto Slide Door Clean Room Air Shower With Three Side Blowing Class 1000
