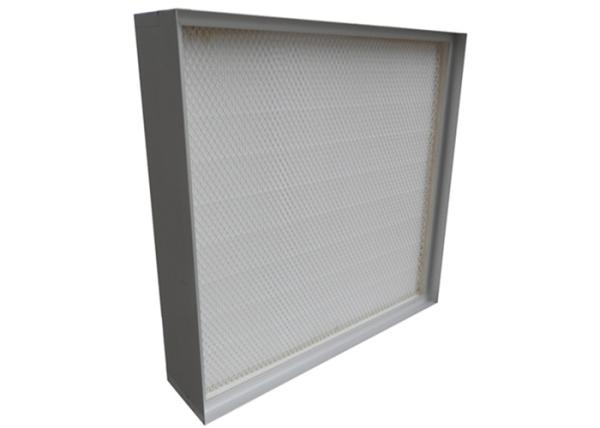

Customized Knife - Egde Frame HEPA Air Filter For GMP Easy Installation
Customized Knife - Egde Frame HEPA Air Filter For GMP Easy Installation
Customized Knife - Egde Frame HEPA Air Filter For GMP Easy Installation
Customized Knife - Egde Frame HEPA Air Filter For GMP Easy Installation
Specifications
Brand Name :
KELING
Model Number :
KEL-KE001
Certification :
SGS
Place of Origin :
China
MOQ :
1PC
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
7-15 working days for sample order
Packaging Details :
Standard carton and Polywood packing
Name :
Knife-Egde HEPA Filter
Size :
915X610X110mm
Air Flow :
2150m³/h
Media Area :
21.22sq.m
Dust Holding :
1330g
Efficiency :
H13-H14
Description

Cleanroom Customized Knife-Egde Frame HEPA Filter For GMP and Industry

Knife-edge HEPA Filters provide fine particulate control to meet the requirements of today’s high technology cleanrooms and clean areas. Offering
configuration and performance flexibility, the Pharmaseal filter will provide the highest level of protection for product processes and personnel. Standard
gel seal filters contain polyurethane gel for knife edge seal.

Features:

1.Knife-edge HEPA air filter is the finally filtration in clean room that use for filter the particles more than 0.3um

2.The media adopt the ultra-thin glass fiber , the hot-melt glue spacing each pleats in regular so that achieve high dust volume , all of the media area can be used in completely .

3.The anodized aluminum frame so that it is anticorrosion in long time. The sealant around the media so that the air filter without any air leaking

4.The both side of Knife-edge HEPA air filter is metal screen with power coated so that the media without any damage.

5.The air flow exit side have knife-edge frame for the filter with good sealant.

6.Laser to scan the each air filter one by one.

7.The Knife-edge HEPA air filter efficiency range: H13, H14 99.97%-99.999%@0.3um (EN1822).


Features:
1.Lightweight and compact
2.Easy installation — no corrugated separators
3.Mini-pleat design features maximum media cleaning potential
4.Lowest possible pressure drop reduces operating costs
5.Available in a range of cleaning efficiencies

Specification:

Customer Size is Available.

Nominal Size Actually Size Thickness Screen Rate air flow Face Velocity Rate Primary Resistance
(Feet)(W*H*D) (mm)(W*H*D) (mm) (m3/h) (m/s) (Pa)
2x2 570x570 90 Both side 472 0.45 H13 :75pa
H14: 80Pa
U15: 90Pa
U16:110Pa
4x2 1170x570 90 Both side 1000 0.45
2x1 610x305 90 Both side 258 0.45
2x2 610x610 90 Both side 545 0.45
2.5x2 762x610 90 Both side 687 0.45
3x2 915x610 90 Both side 831 0.45
4x3 1170x870 90 Both side 1550 0.45
4x4 1170x1170 90 Both side 2100 0.45
2x2 570x570 110 Both side 472 0.45 H13 :60pa
H14: 65Pa
U15: 70Pa
U16:85Pa
4x2 1170x570 110 Both side 1000 0.45
2x1 610x305 110 Both side 258 0.45
2x2 610x610 110 Both side 545 0.45
2.5x2 762x610 110 Both side 687 0.45
3x2 915x610 110 Both side 831 0.45
4x3 1170x870 110 Both side 1550 0.45
4x4 1170x1170 110 Both side 2100 0.45
