Adjustable Clean Purification Air Shower Room For GMP Workshop , 3 Directional Blowing

Application :

Telecommunications Industry: Cleanroom air showers are essential in the telecommunications industry to prevent defects in electronic components used in telecommunications equipment. The air showers help to remove particles and other contaminants from personnel and equipment before they enter the cleanroom, helping to ensure the highest level of reliability in telecommunications equipment.

Quickly detail

External Size: 1300x2000x2180mm

internal size : 800x1930x1910mm

single person with three side blowing

HEPA filter efficiency: 99.999%@0.3um

Personal per cycle: 2-4 person

SUS nozzle: 32pcs

Air speed :>25m/s

Power: 380V/50HZ or 380V/50HZ, 440V/50HZ, 415V/50HZ

Introduction:

cleanroom Air shower are self-contained chambers installed at entrances to clean room and other controlled environments, they minimize particulate matter entering or exiting the clean space, personnel and materials entering or exiting the controlled environment are filtration by high velocity HEPA-filtered air jets with velocities of 22-30m/s, then contaminated air is drawn through the base within the unit, filtered and re-circulated,Also known as air shower, air shower, clean purification air shower, air shower room, shower room, air shower door, shower room, shower, blowing dust air shower channel, air shower.

operating features :

1) Material: inside is stainless steeel 304, outside is cold rolled steel or stainless steel 304

2) HEPA filter with efficiency 99.99% up to 0.3um

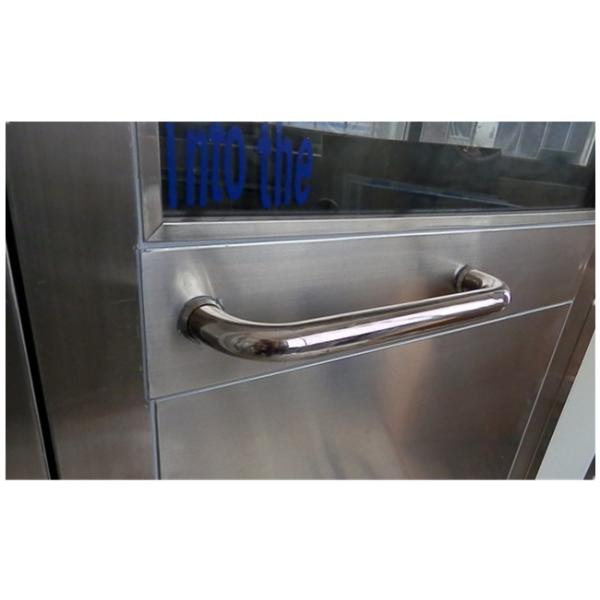

3) Toughened glass for the door's window

4) Fully-automatic infrared induction blowers and showers

5)Two emergencys inside and outside, it could stop the working if need.

6) LED display

7) Adjustable range: 0 - 99s

8) Doors will close automatically when activated

9) Stainless steel nozzle on two sides, it's more effieciency to blow.

10) The air velocity is greater than 25m/s

11) Low noise level

12) Arc corner 100-rank static state, patented product
13) customized designe is available.

Parameter :

1: Control panel 2: SUS Nozzle 3: Infrared ray inductor

4: Per-filter 5: Power inductor 6: working inductor

7: Emergency switch 8: HEPA filter 9: Door

10: Blower

Application :

ITO mode/ liquid crystal and conductive photoelectric suggests,the industry/ PCB/ SMT manufacturing industry/ aerospacevoyage/ aumomobie manufacturing industry/ Electronic/ microelectronics/ precision electronic/ biological manufacturing industry/ medical industry/ food processing/dust-free painting industry and other industry,

Factory test:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

--functional test and visual inspection

--electrical safety tests

--air velocity testing

--purification rank test (if need)

Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.

Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.
