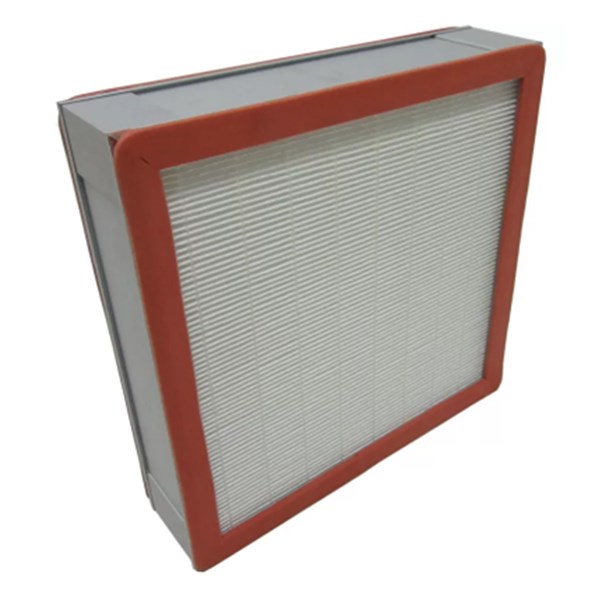

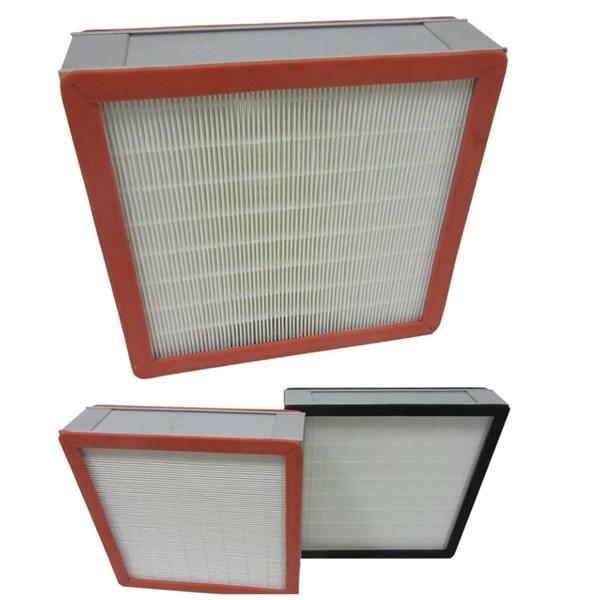

Glass Fiber Media Air Flow HVAC System HEPA Air Filter
Glass Fiber Media Air Flow HVAC System HEPA Air Filter
Glass Fiber Media Air Flow HVAC System HEPA Air Filter
Glass Fiber Media Air Flow HVAC System HEPA Air Filter
Specifications
Brand Name :
K-LING
Model Number :
KEL-HF
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sets per month
Delivery Time :
7-15 working days
Packaging Details :
Plywood packing
Media :
glass fiber
Air flow :
Large air flow
Application :
HVAC System
Feature :
easy installation
Max. humidity :
80%RH
Max. temperature :
80°C
Description

Glass Fiber Media Large Air Flow HVAC System HEPA Air Filter Easy Installation

Application Industries:

Operating Room HVAC System

1. Clean rooms ( suitable for use in multilayer filter filtration system or micro component electronic manufacture & assembly)


2. Food processing industry.


3. Pharmaceutical Processing


4. Aerospace Engineering


5. Genetic & Biological research


6. Biohazard Atmosphere


7. Laminar Flow Workstations


8. Bio Safe Hoods(Biological Safety Cabinets)


9. Hospital Operating Theaters & Intensive care units


10. Atomic Research

11.hepa air filter used for electronic, medicament,food.

Material And Performance:

Frame Material Aluminum
Filter medium Glass fiber
Sealant Polyurethane adhesive
Partition Hot melt adhesive
Max. humidity 80%RH
Max. temperature 80°C

Specification And Technical Parameters:
Model

Nominal Size

WxHxD (inch)

Actual Size

WxHxD(mm)

Rated Airflow

(m³/h)

Surface Wind Speed

(m/s)

 Initial Resistance (pa) Efficiency (Colorimetric Method)
HA-HF 12 x12 x 2 305x305x50 400 0.45 ≤220 H13/H14
HA-HF 12 x 24 x 2 305x610x50 500 0.45
HA-HF 24 x 24 x 2 610x610x50 700 0.52
HA-HF 36 x 24 x 2 915x610x50 1100 0.52
HA-HF 48 x 24 x 2 1220x610x50 1400 0.52
HA-HF 24 x 24 x 2-3/4 610x610x69 1000 0.75
HA-HF 48 x 24 x 2-3/4 1220x610x69 2000 0.75
Special size can be customized.

Features:

Large air flow,

Easy installation,

Long operating life.

Low initial pressure drop,

Economical and practical,

High dust holding capacity.

1,It is used patent technology to ensure the full use of v-type passage;

2,The frame is extruded and anodized aluminium;

3,Using the high end sealing technology;the effect keeps for a long time and the airflow is even.

Anti-aging technology;

Not changeful form;

A low resistance and long life-span.

Glass Fiber Media Air Flow HVAC System HEPA Air Filter
