Custom Gel - Seal HEPA Filter Box With DOP Detection Port 2 Years Warranty
Custom Gel - Seal HEPA Filter Box With DOP Detection Port 2 Years Warranty
Custom Gel - Seal HEPA Filter Box With DOP Detection Port 2 Years Warranty
Custom Gel - Seal HEPA Filter Box With DOP Detection Port 2 Years Warranty
Specifications
Brand Name :
K-LING
Model Number :
KEL-HU554
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
7-15 working days
Packaging Details :
Plywood packing
Filter primary resistance :
＜200 Pa
Filter finally resistance :
400-600 pa
Install Size :
554×554×380 mm
Filter Size :
484×484×96 mm
Flange Size :
200×320/ Φ300
Air Flow :
1000 m3/h
Description

Product Manual:


Gel-seal HEPA filter box can be widely used in medical fields, biopharmaceuticals, semiconductors, liquid crystal manufacturing, precision machinery, optics and other technical fields.
The surface of the cabinet is electrostatically sprayed, which is highly resistant to corrosion. The tank seal design further enhances its sealing.

Features

The Terminal HEPA Filter Box is designed to provide high-efficiency air filtration in a compact, easy-to-maintain package. Its key features include a HEPA filter with an efficiency rating of up to 99.99%, a compact design that can be mounted directly onto the wall or ceiling, and a low-noise fan for quiet operation. The box also comes with an easy-to-use filter replacement system and a durable, long-lasting housing material.

Application

The Terminal HEPA Filter Box is ideal for use in a wide range of applications where air quality is of the utmost importance. Such applications include hospitals, laboratories, cleanrooms, and pharmaceutical manufacturing facilities. It is also suitable for use in commercial and industrial settings, such as offices, warehouses, and factories.

Product Drawings

Custom Gel - Seal HEPA Filter Box With DOP Detection Port 2 Years Warranty

1.flange 2.ring 3.air duct diffuser 4.DOP/PAO test port 5.HEPA filter
6.Gel-sealant glue 7.diffuser plate

Product Specification:

Model Install size Filter size Flange size Air flow
Tube on top/side (BXAXH)mm (H13) (mm) M3/h
KEL-320 390x390x380 320X320X96 200x200/Ø300 500
KEL-484 554x554x380 484X484X96 200x320/Ø300 1000
KEL-610 680x680x380 610X610X96 200x400/Ø300 1500
KEL-915 680x985x380 610X915X96 200x500/Ø300 2000
KEL-1220 680x1290x380 610x1220x96 300x500/Ø300 3000

Customized design is available.

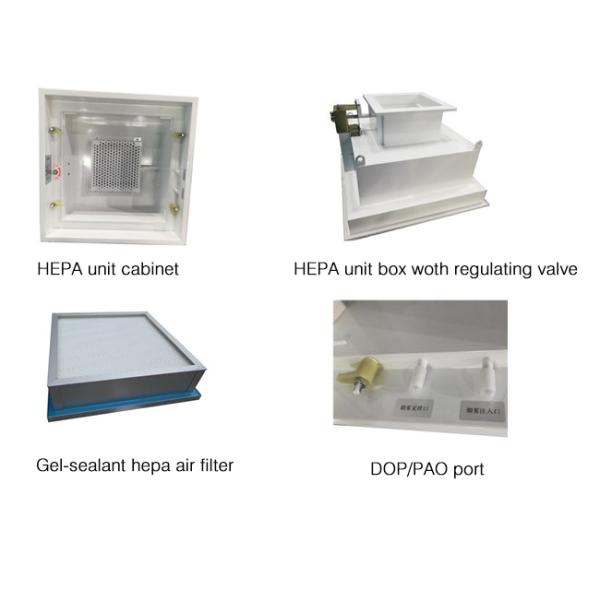

Detail image
Custom Gel - Seal HEPA Filter Box With DOP Detection Port 2 Years Warranty

About us

Keling Purification Technology Co., Ltd engaged in air purification field for many years, that is

Professional manufactory with research and development, produce, sales of air purification equipment and HVAC air filter.

Custom Gel - Seal HEPA Filter Box With DOP Detection Port 2 Years Warranty
