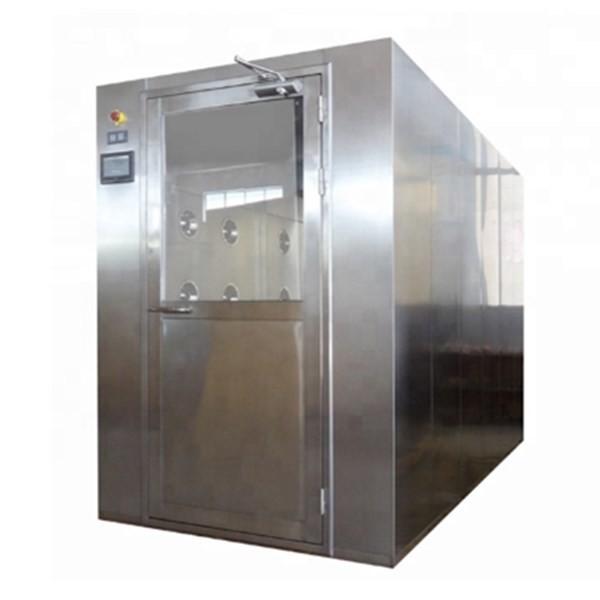

Acid And Alkali Resistant Air Shower Tunnel For Pharmaceutical Clean Room

Introduction

Air shower tunnel is a kind of partial purifying equipment of strong universality. With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance, it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields. It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first. The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.

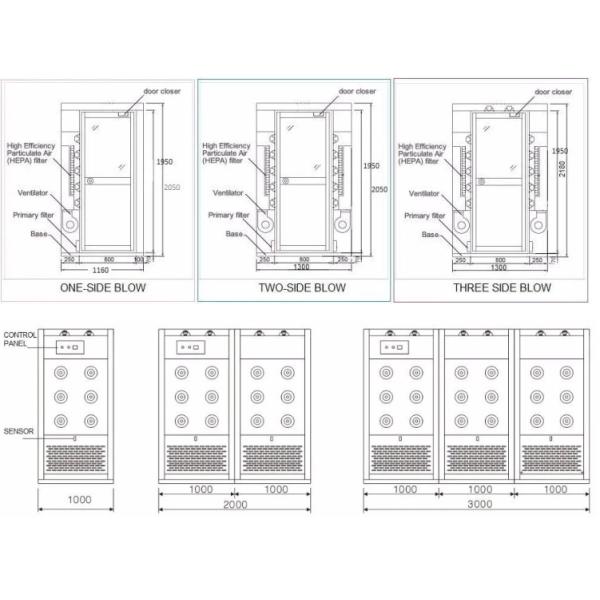

Dimensions
The equipment dimensions vary depending on the configuration. The dimensions of the standard equipment are approximately 1400mmx1710mmx 2300mm.

Air Volume Capacity
The air volume capacity also varies depending on the configuration. The range varies between 800m3/h to 2400m3/h.

Airflow Velocity
The airflow velocity provided by the Airshower Tunnel ranges between 20m/s to 25m/s. The velocity is designed to provide a laminar, high-speed airflow that can effectively remove any loose contamination present on the surface of the personnel or material.

Material Composition
The Airshower Tunnel is made of high-quality materials that are durable and resistant to corrosion. The equipment is primarily composed of high-grade stainless steel, while the panels are made of high-quality cold-rolled steel sheets. The floors are coated with anti-static flooring, while the ceilings are integrated with LED lights for optimal lighting conditions.

Working Principle
The air shower principle of the equipment is based on high-speed, turbulent airflows generated by nozzles located at specific positions, ensuring the desired level of flow and turbulence is achieved. The velocity of the airflow ensures that loose contaminants on the personnel or material are exposed to strong air streams that can blow them off.

Applicable Areas
The Airshower Tunnel is used in various cleanroom environments in semiconductor, electronics, and other industries. The equipment is crucial in maintaining a clean environment that ensures high-quality outcomes.
