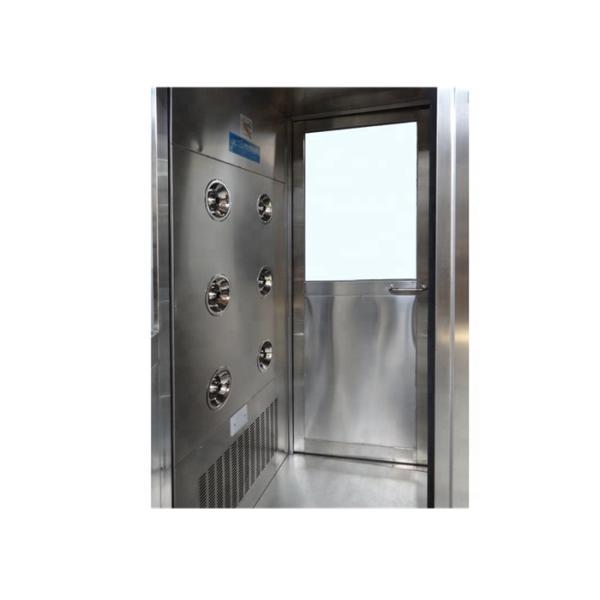

Explosion – Proof Cleanroom Air Shower For Oil Refinery Easy To Modify
Explosion – Proof Cleanroom Air Shower For Oil Refinery Easy To Modify
Explosion – Proof Cleanroom Air Shower For Oil Refinery Easy To Modify
Explosion – Proof Cleanroom Air Shower For Oil Refinery Easy To Modify
Specifications
Brand Name :
KELING
Model Number :
KEL-AS1600P1
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
800 Sets per month
Delivery Time :
7-15 working days for sample order
Packaging Details :
Polywood Pallet Box Packing
Name :
Explosion –Proof Air Shower
Material :
Coldrolled Steel With Bake Painting,SS304
Features :
Explosion –Proof
Person per cycle :
1-6 person
Air flow of fan(m3/h) :
1500
Nozzle in stain less steel :
16 pcs
Description

High Performance Clean Room Explosion –Proof Air Shower For Oil Refinery

Company Information

Our factory with competitive price
Automatic production line.
Nearly 20 years experience in cleanroom industry.
We are an expert in providing customized solutions.
Timely delivery with perfect quality.
Fortune 500 companies’ choice.
Have passed ISO9001.2008 certification.

Our Services
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing

Warranty:
Our equipment is warranty for 2 years excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.

Features:
1.Small size,high static pressure,reduced main body size (200mm), increased air jet velocity, saving the high cost of clean room constructions and allowing flexibility in space arrangement.
2.Graphical user interface, easy to understand.
3.Single chip microcontroller. With modulus control panel and the intelligent programming, the control system provides stable quality.
4.Unified specifications, easy to modify, can be customized per request.
5.Strong aluminum door, giving a good appearance as well as a durable structure.

Explosion –Proof Air Shower Specification:

Customer Design is Available.

MODEL KEL-AS1600P1 KEL-AS1600P2 KEL-AS1600P3

External size (mm)

(W*D*H)

 1600x1000x2180mm 1600x2000x2180mm 1600x3000x2180mm

Work zone (mm)

(W*D*H)

 800x930x1910mm 800x1930x1910mm 800x2930x1910mm
Persons per cycle 1-2 person 2-4 person 3-6 person

Material

(Option)

1:Entirety Sus304.(T=1.0/1.2/1.5mm)

2:Entirety sus201. (T=1.0/1.2/1.5mm)

3:External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm)

4:External is steel with power coated. Internal is SUS201(T=1.0/1.2/1.5mm)
Control system

1: Control system with LED display for the shower time.

2: The shower time from 0-99second. (Adjustable)

3: Infrared ray inductor for inside personal shower automatic.

4: Three side blowing with Human voice prompt system.

5: The Air shower electric control system ,big blowing fan and purification

light is explosion –Proof

6: with CE remark.
The power of fan

380V/50HZ/0.75KW

(2 set)

380V/50HZ/0.75KW

(4 sets)

380V/50HZ/0.75KW

(6sets)
Air flow of fan(m3/h) 1500 1500 1500
Fan run (r/min) 2800 2800 2800
Nozzle in stain less steel 16 pcs 32 pcs 48pcs
Wind speed(m/s) >25m/s
Noise level(dB) <75dB
HEPA FILTER Size(mm)

630X630X80mm

(2 sets)

630X630X80mm

(4 sets)

630X630X80mm

(6 sets)
Efficiency (%) 99.995% @ 0.3um mini-pleats HEPA Air Filter
Air velocity 1000(m3/h)
Initial resistance(pa) <180pa
Pre-filter Size(mm) 775x380x17 775x380x17 775x380x17
Efficiency (%) 75% @ 0.5um 75% @ 0.5um 75% @ 0.5um
G3 G3 G3
resistance(pa) <30 Pa <30Pa <30 Pa
parameter Power supply 380v/50HZ 3P 380v/50HZ 3P 380v/50HZ 3P
Net power(kw) 1.5 kw 3kw 4.5 kw
packing size (mm) 1750x1200x2250mm 1750x2200x2250mm 1750x3200x2250mm
Packing material Standard Export Poly wood Packing(Fumigant free material)
Weight 320kgs 650kgs 960kgs
