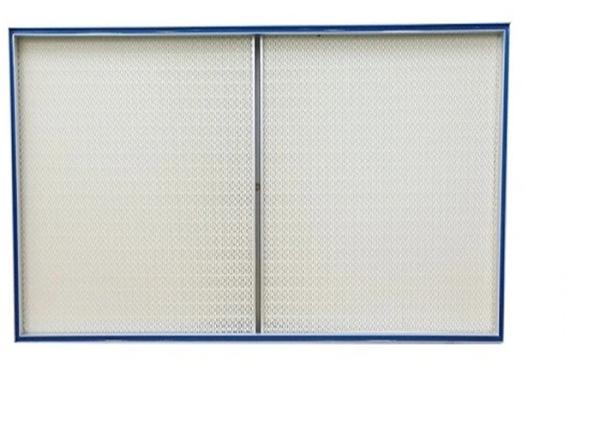

GMP Clean Room Gel Seal HEPA Filter For HVAC Air Purification Ventilated System
GMP Clean Room Gel Seal HEPA Filter For HVAC Air Purification Ventilated System
GMP Clean Room Gel Seal HEPA Filter For HVAC Air Purification Ventilated System
GMP Clean Room Gel Seal HEPA Filter For HVAC Air Purification Ventilated System
Specifications
Brand Name :
KEL
Model Number :
KEL-AF
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000 set/ month
Delivery Time :
8-15 working day
Packaging Details :
plywood packing
structure :
gel seal filter
efficiency :
99.99%@0.3um
application :
GMP factory
certification :
CE
warranty :
1 year
original :
China
Description

GMP Factory Clean Room Gel Seal HEPA Filter For HVAC Air Purification Ventilated System


Features And Applications:


100% leak test,making use of high-strength glassfiber medium,optium pleat geometry and equidistance,assured leak-proof mounting,long useful time and cost-effecient. HEPA/ULPA with Gel-channel/knife-edge fluid sealing system is widely used in Class 100 clean room for semiconductor and bio-pharmaceuticals,and also taken as end-filtration in hospitals and purifying equipment.

Application:


Widely used in demanding clean rooms, large area vertical laminar flow, 100 laminar flow hood and HEPA high efficiency filter installation.
Liquid tank sealed high efficiency filter current thickness of 70mm,93 mm,(according to customer's requirements or market requirements to increase the thickness of the aluminum mold production of different thickness of the tank sealed filter products.)

GMP Clean Room Gel Seal HEPA Filter For HVAC Air Purification Ventilated System

Materials And Operating Conditions:

Frame material Anodized aluminum
Medium Micro glass-fiber
Gasket Gel-channel;knife-edge fluid system
Max.working temperature 80ºC


Standard Specifications:
Model Dimension(mm) Filter class
EN1822		 Rated Air flow
M3/h		 Initial Resistance
(Pa)
Upper Gel Side Gel
HA-H13/H14/U15 570*570*81 570*570*69 H13/H14/U15 540 110/135/140
HA-H13/H14/U15 1180*570*81 1180*570*69 H13/H14/U15 1080 110/135/140
HA-H13/H14/U15 610*610*84 610*610*70 H13/H14/U15 600 110/135/140
HA-H13/H14/U15 1220*610*84 1220*610*70 H13/H14/U15 1200 110/135/140
HA-H13/H14/U15 610*610*95 610*610*90 H13/H14/U15 1000 145/160/190
HA-H13/H14/U15 1220*610*95 1220*610*90 H13/H14/U15 2000 145/160/190
HA-H13/H14/U15 610*610*104 610*610*110 H13/H14/U15 1200 100/120/160
HA-H13/H14/U15 1220*610*104 1220*610*110 H13/H14/U15 2400 100/120/160
