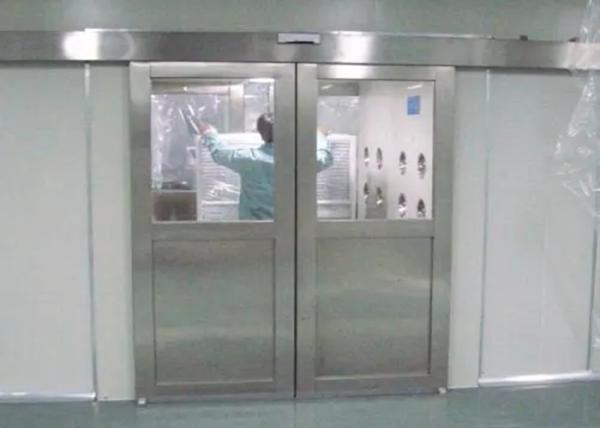

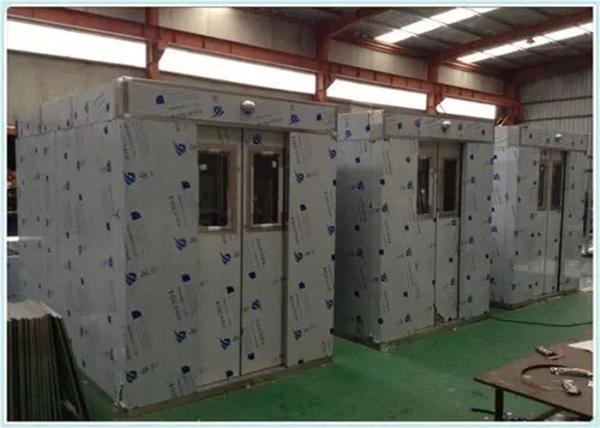

GMP Factory 380V SS Air Shower Room With Centrifugal Fan
GMP Factory 380V SS Air Shower Room With Centrifugal Fan
GMP Factory 380V SS Air Shower Room With Centrifugal Fan
GMP Factory 380V SS Air Shower Room With Centrifugal Fan
Specifications
Brand Name :
KEL
Model Number :
KEL-AS
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 set/ month
Delivery Time :
8-15 working day
Packaging Details :
plywood packing
material :
stainless steel 304/ 201/316L
name :
automatic air shower
application :
modular clean room
standard :
CE
air speed :
25m/s
original :
China
Description

Automatical Door Air Shower Tunnel For GMP Factory With Customized Size

Information :

Air Shower Room is made of full stainless steel. It is equipped with centrifugal fan and the primary and high efficiency air filters. The product has the features of elegant appearance, compact structure, easy maintenance and simple operation. Meanwhile, we can produce the people and cargo air shower room with the electronic interlocking and infrared sensing device according to customers' needs.

Specification :


Model:KEL-AS01(Suitable for 1 person)
Material: SUS 304
Overall Dimension(mm): 1400(W)*1000(D)*2100(H)
Air Shower Area Dimension (mm): 800(W)*900(D)* 1960(H)
Nozzle Number: 12(two-side blowing),
Nozzle Material: stainless steel
Diameter of Nozzle Mouth: Φ30mm
Air Velocity at the Nozzle: ≥25m/s
Filters:pre-filter*2pcs,HEPA filter*2pcs, filters are produced in Class 10,000 clean room; Efficiency: ≥99.995% (sodium flame method), particle siz≥0.3µm
Lamp: LED lamp* 1 pcs
Air Shower Mode: automatic and manual
Fan: low-noise, high-pressure, centrifugal fan*2pc; Power: 1.1KW
Shower Time: 0-99s adjustable
Control Panel: New touch-screen panel, Electronic Interlocking
Power Supply: 380V,50Hz, Three-phase five-line (can be customized)
Package: wooden case
Door: automatic Door

Parameter

Model KEL-AS-1160 KEL-AS-1500 KEL-AS-2000 KEL-AS-2500
External size 1160*1000*2050 1290*1500*2050 1390*2000*2050 1390*2500*2050
internal size 790*1000*1950 790*1500*1950 790*2000*1950 800*2500*1950
power supply AC,1PH,220V 50/60HZ or AC, 3PH, 380V, 50/60HZ
consumed power 1100w 1500w 2200w 2500W
No of nozzles 12pcs 18pcs 24pcs 48pcs
air speed 20-25m/s
air shower time 0-99s adjustable, standard is 10s
HEPA FILTER H13 or H14, 99.99%@0.3um or 99.995%@0.3um
material SUS304, SUS201, baking finished optional
NO. of person capacity 1-2 2-3 3-4 4-6
Remark specification can be customized according to customer's requirement
