Specifications
Brand Name :
N / M
Model Number :
YF6455
Certification :
CE And Rohs
Place of Origin :
China
MOQ :
Negotiation
Delivery Time :
One month after receiving 30% deposit
Packaging Details :
Bubble Bag with Foam, Color box and Strong Carton
Price :
Ask for Advice
Supply Ability :
3500 pcs 4 weeks
Water Resistant :
IP 67
Color :
Black and Silver
Material :
Steel
Original :
China
Power :
Heavy duty
Brand :
OEM
Voltage :
12V
Air Flow :
70L/Min
Description

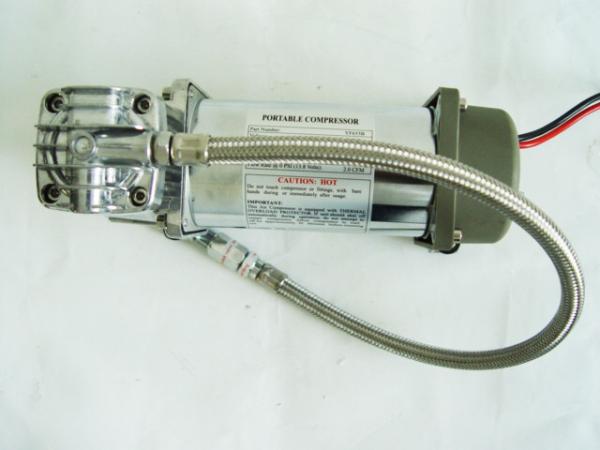

YF6455B Portable Off Road Suspension Compressor

► Description

YF6455BH is a hardmount compressor that pumps a massive 2.18CFM flow at zero PSI head pressure. The 400H comes with a built-in, moisture resistant ON-OFF power switch. Features include a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.

►Company information:

Yuyao Yurui Electrical is a professional factory dealing in the suspension air compressor, inflator, car fan vacuum cleaners, heater fans and other car accessories. With more than 15 years history, we have our own inspection team that is around 15 persons and engineers 3 persons. That controls the quality and explore new products.

► Used with

• Air tanks in different sizes

• Pnuematic system

• Air horns

► Our Advantages

1 . One year warranty

2 . Competitive price among manufactures

3 . Portable to carry with

4 . High quality

5 . Can be pumped more than 20 , 000 times

6 . Fast inflation and low noise

7 . Anti-dust and explosion-proof

8 . Water resistant : IP 67, working in the water for 2 hours

► SPECIFICATION

2.18CFM 150PSI

• 12 Volt

• Duty Cycle: 33% @ 100 PSI

• Max. Working Pressure: 150 PSI

• 12V Max. Amp Draw: 30 Amps

• 1/4"NPT Inlet port

• Net Weight: 8.95 lbs

11.25"Lx4"Wx6.75"H

►PERFORMANCE DATA

PSI 0 40 90 150
AMPS 15 23 24 25
CFM 2.18 1.48 1.2 0.84
LPM 62 42 34 24
BAR 0 3 6 10

► RECOMMENDED TANKHeavy Duty Air Ride Suspension Compressor Truck Offroad Metal Air Ride Pneumatic 12v Chrome

TANK FILL DATA

2.0 Gallon Tank

0 to 150 psi 2 min 5 sec

120 to 150 psi 40 sec

♦ DUTY CYCLE REFERENCE CHART

Duty Cycle: 100PSI @ 72◦F Max. Run Time / Min. Rest Time

Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%
9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72◦F

Heavy Duty Air Ride Suspension Compressor Truck Offroad Metal Air Ride Pneumatic 12v Chrome
