Plastic Piston Truck Air Spring W01-M58-9131 Firestone Air Bellows 4159NP09 1R12-721
Plastic Piston Truck Air Spring W01-M58-9131 Firestone Air Bellows 4159NP09 1R12-721
Plastic Piston Truck Air Spring W01-M58-9131 Firestone Air Bellows 4159NP09 1R12-721
Plastic Piston Truck Air Spring W01-M58-9131 Firestone Air Bellows 4159NP09 1R12-721
Plastic Piston Truck Air Spring W01-M58-9131 Firestone Air Bellows 4159NP09 1R12-721
Plastic Piston Truck Air Spring W01-M58-9131 Firestone Air Bellows 4159NP09 1R12-721
Specifications
Place of Origin :
Guangdong, China
Brand Name :
VKNTECH
Certification :
IATF16949/ISO9000
Packaging Details :
CARTON/PALLET
Supply Ability :
2000000pcs/Year
MOQ :
10 Pieces
Price :
$1.00 - $45.00/Pieces
Model Number :
1K9131
OE NO. :
4159NP09
Warranty :
12 Months
Type :
by sea/by truck/by air
Car Model :
For bus/truck&trailer
Price condition :
FOB China
Sample :
Available
Material :
Imported Natrul Rubber
Operation :
Gas-filled
Brand :
VKNTECH or customized
Service offered :
OEM
Suspension system :
Air Suspension Spring
Type of Goods :
Air Spring/Air bags/Air Ballons
Package :
Standard packing or customized
Payment term :
T/T&L/C
Port :
Guangzhou
Description

W01-M58-9131 Air Bellow 4159NP09/ Rubber Air Suspension System Truck Spare Parts Plastic Piston 1R12-721

OEM

CF GOMMA 1T 323-40 FRUEHAUF M00 1774
CONTITECH 4159 N P09 　 UJB 0358
DUNLOP FR D12B04 TRAILOR M00 1774
FIRESTONE 1T15M-9 WABCO 951 812 721 0
FIRESTONE 2 W01 379 9131 　 　
GOODYEAR 1R12-721 　 　
PHOENIX 1 DK 21 B-8 　 　
TAURUS KR-509-9131 　 　

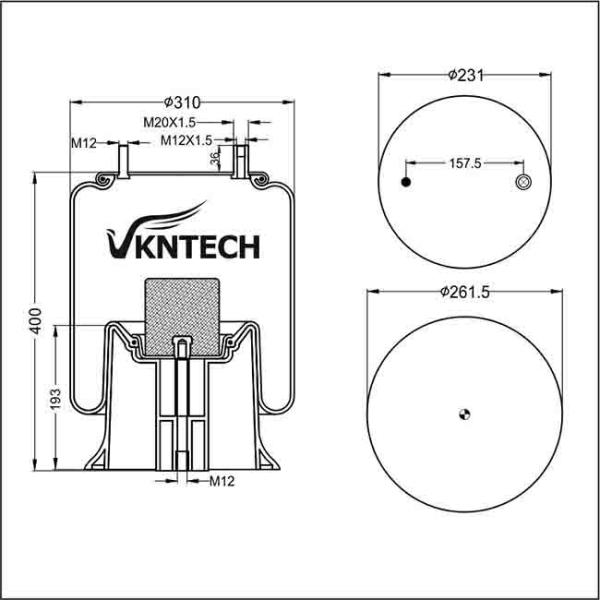

Drawing

Plastic Piston Truck Air Spring W01-M58-9131 Firestone Air Bellows 4159NP09 1R12-721

Technical Data

Max height (mm)
700
Piston
Plastic
Piston Ø (mm)
261
Including top plate
　
Min height (mm)
239
Bellow Ø (mm)
257
Weight (kg)
7.17
Piston included
　
Air bellow type
SMB
Lower mounting type
Single bolt base
Top plate diameter (mm)
229
Number of chambers
1

Features

Only level and stable vehicles provide safe and proper headlight aiming - critical for night driving safty
When towing a trailer, air springs permit precise vehicle height adjustment for exact alignment, eliminating trailer sway
Air springs increase spring rate and vastly improve vehicle stability. less roll means a safer and more comfortable ride
Air springs's progressive spring rate soaks up bumps, keeping tires on the road for better handing
Front tires account for the maiority of breaking and steering. Air springs ensure that weight is properly distributed to all four tires for optimal breaking and steering
Proper weight distribution to all tires improves steering, breaking and tire wear. This is especially important while towing: adjust the air springs to accept the tongue weight of the trailer
