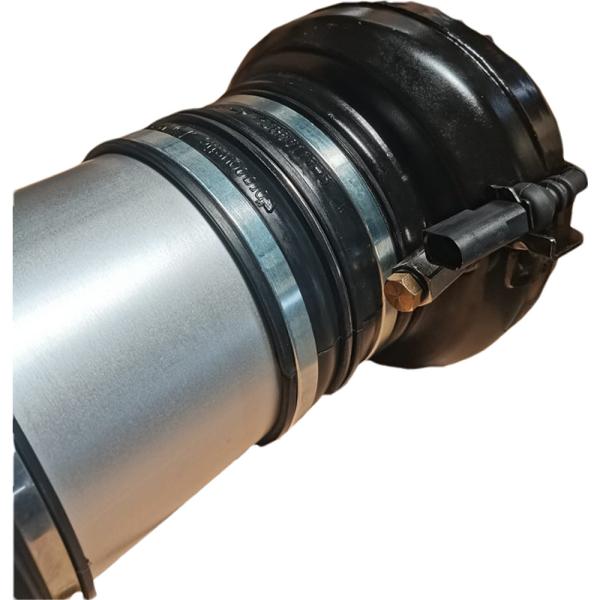

Porsche 95b Macan GTS Air Suspension Shock Absorber Struts Air Spring 95B616039 95B412383

Quick detail

Enclosed installation instructions of the manufacturer must be observed!

Can be installed in the following vehicles:
Audi A8 4H D4 (2009-2017)
Audi S8 4H D4 Quattro (2009-2017)

porsche Macan 95B GTS Sport S Diesel Sport Turbo Sport 2015-2018
.
Original spare part number OE:
4H0616039,4H0616039AE,4H0616039AF,4H0616039AK
4H6616039G,4H6616039F,4H6616039E,4H6616039F
4H0616039T,4H0616039M,4H0616039H,4H0616039G
4H0616039AD,4H0616039D,4H0616039P,4H0616039R
4H0616039AB,4H0616040D,4H0616040AD,4H0616040AE
4H0616040AF,4H0616040AK
4G0616039L,4G0616039N,4G0616039AD,4G0616039T
4G0616039AB,4H0616039J
3Y5616039C,3Y5616039E,3Y5616039F,3Y5616039G
3Y5616039J,3Y5616039K,3Y5616039M,3Y5616040C
3Y5616040E,3Y5616040F,3Y5616040G,3Y5616040J
3Y5616040K,3Y5616040M,95B616039
95B616039, 95B616039B, 95B616039D, 95B616039E
3Y5616039E,3Y5616039F,3Y5616039G,3Y5616039J
3Y5616039K,3Y5616039M,3Y5616040C,3Y5616040E
3Y5616040F,3Y5616040G,3Y5616040J,3Y5616040K
3Y5616040M

Features

As the car's suspension system is an often-overlooked area. From a comfort and safety standpoint, your car's suspension is integral to how your car drives. Shock absorbers and coil springs help absorb and direct road force, maintaining wheel oscillation, jounce and rebound.
However, every time you add or take away weight to a vehicle, speed up or slow down, or turn left or right, this challenges what the shock absorbers and springs are capable of. Traditional stock shocks and springs are designed and installed with only a fixed set of situations in mind.
Honggu Air suspension systems essentially replace a vehicle's coil springs with air springs. The air springs are simply tough rubber and plastic bags inflated to a certain pressure and height to mimic the coil springs. But the similarities end there. By adding in an on-board air compressor, sensors and electronic controls, today's air suspension systems provide several advantages over all-metal, conventional springs, including near-instant tuning, and the ability to adapt handling to different situations and vary load capability.
Whether the system is manual or electronic, or installed by a weekend mechanic or a seasoned tech, air suspension can lower a car to improve its street cred, even out a heavy payload, or simply improve the ride of a vintage Detroit metal street monster.

Description

Air Suspension

Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs. Computer-operated vents on the air springs, suspension sensors, and an onboard air compressor allow the system to main tain ride height and vary the suspension's ride characteristics.

Air Spring

An air spring is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities. As the air pressure increases, the air spring can support more load while the spring rate increases. The larger the air spring, the greater the maximum load it can support.

Air Shock

An air shock is a type of overlade shock absorber that can be inflated with air to increase the suspension’s load carrying ability

With this product (4H0616039D 4H0616040F) you get the original suspension from the original manufacturer HONGGU for your Audi A8 / S8 (D4 4H).

The HONGGU air suspension module offers optimum safety and durability. Don't be satisfied with less than BILSTEIN if you need OE replacement.
.
HONGGU air suspension module for maximum driving comfort.
The revolutionary design provides damping, suspension and level control in one single part.
HONGGU air suspension module is available for active and passive systems and is therefore the ideal OE replacement part for a perfect driving experience as on day one.

Advantage :

1. Air springs increase spring rate and vastly improve vehicle stability, that means a safer and more comfortable ride.
2. Soaks up bumps, reduces the frequency of vibration while driving on the road, prevents the damage of the other parts from the heavy loading vehicles.
3. The cushioning principle is adopted, the shock absorption performance is obviously improved, and the passenger comfort is improved.

The 8 steps to install a New Air Spring on Your Vehicle:

Replacing a broken air spring may require the help of a mechanic, but you can cut down your expenses by simply installing it yourself.
1: Parking your car on a level surface then using the floor jack to lift it up. Place the jack stands underneath the vehicle for support.
2: Remove the wheels by detaching its lug nuts one by one. Use a wrench for this procedure.
3: Deflate the air spring by opening the air mouth on the top.
4: Detach the set of fasteners that secure the air spring in place. You can generally find these bolts on the control arm and under the hood. Keep in mind that the set of procedures for removing an air spring vary for each car, so make it a point to consult your owner's manual to see exactly how yours is removed.
5: Remove the old air spring away from the shock carefully. If needed, use a spring compressor to make the remove easier. You may reuse the O rings connecting the air spring to the shock.
6: Put the new air spring on the place where you removed the old one.
7: Reconnect it to the shock using the O rings you removed earlier. Make sure you apply lubricant on them before putting them back.
8: Reattach all the components that you removed. Recheck if there are no missing bolts, nuts and fittings.

FAQ

Advantage

1. we are top 3 of professional air suspension manufacturer in China.
2. our factory has 120 staff, and we only produce 100% newly air suspension products for 10 years.
3. we have cooperated with 80 overseas companies with stable relationships. many are also brands or big sellers at Amazon or EBAY websites.
4. we have our own cars to test our products,except normal test machine and IATF16949:2016 certificate standard.
5. we have complete production line, Mercedes Benz,BMW Audi,Porsche,Land Rover,Volkswagen-these are our products,we has complete products line.
6. Our air suspension/air compressor/air strut/air suspension parts 100% NEWLY manufactured to instead OEM
7. We manufacture air suspension/air strut/air compressor to instead OEM ;
8. Constant temperature workshop for core parts;
9. Japan automatic welding machine to weld

OEM/ODM Service:

- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Standard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- International air: CA, AA, EA, etc
- By sea
- Standard export sea port: Huangpu, Hongkong, Shunde
- Standard export airport: Shenzhen, Hongkong, Guangzhou
