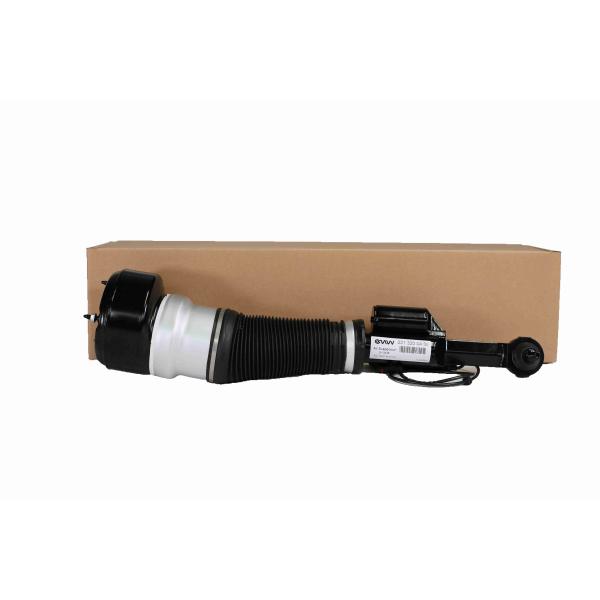

Shock Absorber Air Suspension Spring Damper For Mercedes Benz W221 S Class 2213200438

Quick Detail

Applications

For 2008 - 2011 Mercedes Benz S450 With Airmatic
For 2007 - 2013 Mercedes Benz S550 With Airmatic and With 4Matic
For 2009 - 2014 Mercedes Benz CL550 With Airmatic
For S-Class Vehicles With 4MATIC (AWD) Suspension Only.
NOT fit on Vehicles Equipped with Base RWD or ABC Suspension Models
Reference OE/OEM Number:
2213200438, 221 320 04 38, 2213200238, 2213203113 ,2213205313, 2213201738, 2213200538, 221 320 05 38, 2213200338, 2213203213 ,2213205413 , 2213201838, 2213200538 2213200038 2213207413 2213209813 2213205413 2213200438 2213205113 2213209713 2213205313 2213201738

Performance:

What is an air suspension struts?

A strut is a major structural part of a suspension. It takes the place of the upper control arm and upper ball joint used in conventional suspensions. Because of its design, a strut is lighter and takes up less space than the shock absorbers in conventional suspension systems.
A struts perform two main jobs. First, struts perform a damping function. A piston is attached to the end of the piston rod and works against hydraulic fluid to control spring and suspension movement. Just like shock absorbers, the valving generates resistance to forces created by the up and down motion of the suspension. Also like shock absorbers, a strut is velocity sensitive, so that the amount of resistance can increase or decrease depending on how fast the suspension moves.
A struts also perform a second job. Unlike shock absorbers, struts provide structural support for the vehicle suspension, support the spring, and hold the tire in an aligned position. Additionally, they bear much of the side load placed on the vehicle's suspension. As a result, struts affect riding comfort and handling as well as vehicle control, braking, steering, wheel alignment and wear on other suspension.

The Advantages of Air Spring
The two front tires bear the majority of braking and steering. Air spring ensures that weight is properly distributed to all four tires for optimal braking and steering. Progressive rate air springs significantly improve ride quality by better absorbing road inputs, while keeping your tires on the road for better handling.
The productive principle of Air spring
Honggu Air Springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs incorporating fabric-reinforced natural rubber flex-member construction and corrosion-protected end retainers, Air Springs provide superior quality and performance. As actuators, Honggu Air Springs can provide either linear or angular motion.

Air Suspension
Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs. Computer-operated vents on the air springs, suspension sensors, and an onboard air compressor allow the system to main tain ride height and vary the suspension's ride characteristics.
Air Spring
An air spring is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities. As the air pressure increases, the air spring can support more load while the spring rate increases. The larger the air spring, the greater the maximum load it can support.

FAQ

Advantage

1. we are top 3 of professional air suspension manufacturer in China.
2. our factory has 120 staff, and we only produce 100% newly air suspension products for 10 years.
3. we have cooperated with 80 overseas companies with stable relationships. many are also brands or big sellers at Amazon or EBAY websites.
4. we have our own cars to test our products,except normal test machine and IATF16949:2016 certificate standard.
5. we have complete production line, Mercedes Benz,BMW Audi,Porsche,Land Rover,Volkswagen-these are our products,we has complete products line.
6. Our air suspension/air compressor/air strut/air suspension parts 100% NEWLY manufactured to instead OEM
7. We manufacture air suspension/air strut/air compressor to instead OEM ;
8. Constant temperature workshop for core parts;
9. Japan automatic welding machine to weld.

OEM/ODM Service:

- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Standard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- International air: CA, AA, EA, etc
- By sea
- Standard export sea port: Huangpu, Hongkong, Shunde
- Standard export airport: Shenzhen, Hongkong, Guangzhou
