ODM 8 Bolts 12 Inch Electric Brake Drums With Bearing Cup Pressed
ODM 8 Bolts 12 Inch Electric Brake Drums With Bearing Cup Pressed
ODM 8 Bolts 12 Inch Electric Brake Drums With Bearing Cup Pressed
ODM 8 Bolts 12 Inch Electric Brake Drums With Bearing Cup Pressed
Specifications
Brand Name :
Airui
Model Number :
AC002
Certification :
ISO/TS16949
Place of Origin :
Shandong，China
MOQ :
Deliberations
Price :
Deliberations
Payment Terms :
L/C, T/T
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
carton, pallet ,plywood case
Use :
Trailer Axle Parts
Size :
12 "
Hub drum body :
5*4.5"/5*4.75"/5*5.0/5*5.5/8 bolts
Dust cap :
O.D. 68.9 mm drive in
Oil seal :
I.D. 57.15 mm single clip
Wheel Nut :
1/2" cone wheel nut
bearing :
25580 & 14125A
Brake :
electric brake with parking lever
Description

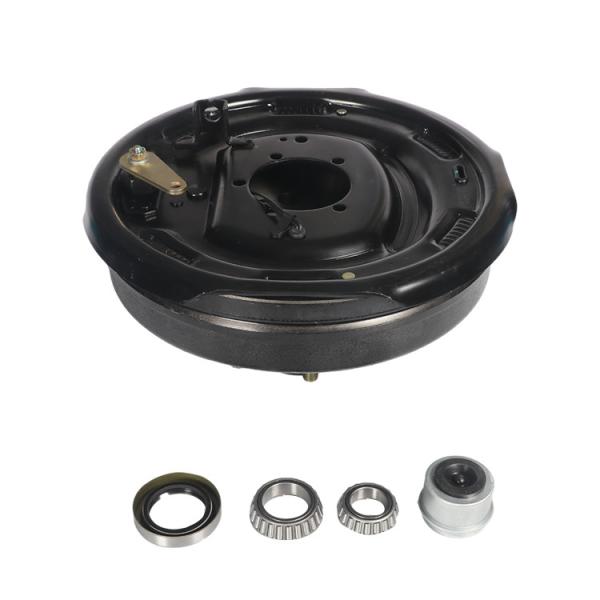

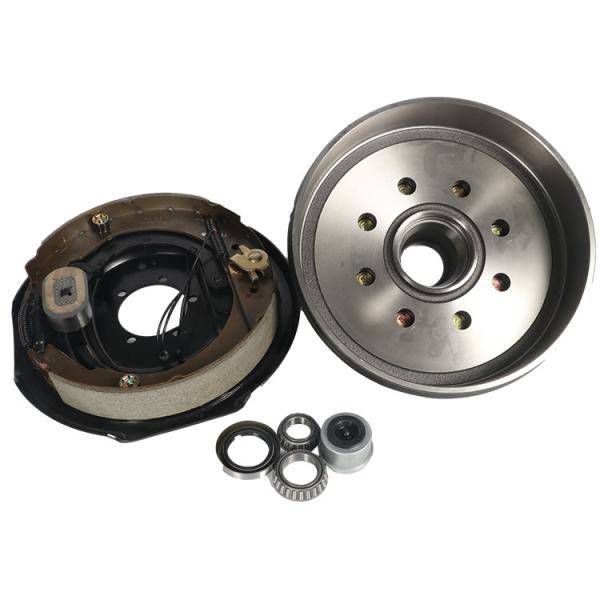

8 Studs 12"×2 Inch Brake Drum With Electric Brake With Parking Lever For Trailer

Detailed Specification

1. PCD: 4-4", 5-4. 5", 5-4. 75", 5-5", 5-5. 5", 6-5. 5", 8-6. 5"

2. Bearing:

L-44610, L-68111, LM-67010, 15245, 14276.
L-44643, L-44649, L-68149, LM-67047. LM-67048, 15123, 14125A, 25580.

3. Size: 120mm, 6inch, 9inch, 10inch, 12inch, 12 1/8inch

4. 1/2 inch stud, 7/16

5. with bearing cup pressed

6. supply you with all parts for axles.

Hub Drum bearing oil seal Dust cap wheel nut
AC00200300C 25580 & 15123

AC00200400

LD. 57.15mm single lip

 AC00200601B AC00500302A

Hub drum body cA/v 6 * 5.5" bolts

& 25520115245 bearing race

 inner / outer bearing

AT01700302

LD. 48.5mm single lip

 O.D. 62.2mm drive in 1/2" cone wheel nut
AC00200300 25580 & 14125A AC00200400 AC00200601 AC00500302A

Hub drum body cA/v 8 * 6.5" bolts

& 25520 /14276 bearing race

 inner / outer bearing I.D. 57.15mm single lip O.D. 68.9mm drive in 1/2" cone wheel nut

Features:

Single-piece assembly makes installation a snap, whether you're retrofitting or switching from drum brakes

Machined process minimizes runout and warping

Contaminants can't get in between rotor and hub

Balanced unit provides smooth ride

Vented design effectively dissipates heat, preventing heat-related damage

1/2" Wheel studs and industry-standard races are included

Cast iron construction ensures a favorable friction coefficient for necessary stopping power

Packaging & Shipping

As for the transportation of products, our company supports various sea, land and air international transportation. Please confirm the specific transportation plan during the negotiation.


ODM 8 Bolts 12 Inch Electric Brake Drums With Bearing Cup PressedODM 8 Bolts 12 Inch Electric Brake Drums With Bearing Cup Pressed

FAQ:

1: Could you please make us an offer as soon as possible?

In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.

2: Could you please provide us with the specifications of the products?

Sure, please confirm the product code you need before that.

3: How can you guarantee the quality of your products?

Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.

4: How to solve the problems in the later stage?

We are confident in our products. We pack them well to make sure they are well protected.
