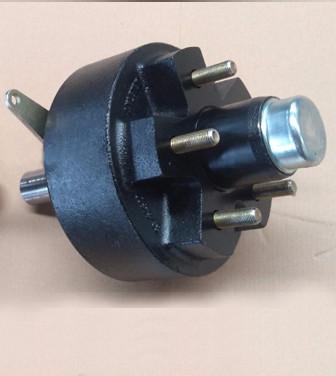

7 Brake Drum 2000-2200Lbs 5 Lug Trailer Hub Assembly 5*114.3 PCD
7 Brake Drum 2000-2200Lbs 5 Lug Trailer Hub Assembly 5*114.3 PCD
7 Brake Drum 2000-2200Lbs 5 Lug Trailer Hub Assembly 5*114.3 PCD
7 Brake Drum 2000-2200Lbs 5 Lug Trailer Hub Assembly 5*114.3 PCD
Specifications
Brand Name :
Airui
Model Number :
AT01700300A
Certification :
ISO/TS16949
Place of Origin :
Shandong，China
MOQ :
Deliberations
Price :
Deliberations
Payment Terms :
L/C, T/T
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
carton, pallet ,plywood case
Use :
Trailer Parts
Size :
7 "
Hub drum body :
5*4.5"/5*4.75"/5*5.0/5*5.5 bolts
Dust cap :
O.D. 62.2 mm drive in
Oil seal :
I.D. 49.2 mm single clip
Wheel Nut :
1/2" cone wheel nut
bearing :
L68149 & LM67048
Quality :
100% Guaranteed
Description

2000-2200 Lbs 5 Studs 7" Hub Drum Assembly Trailer Axle

2000-2200 lbs, 7" brake drum, double 44643 or 44649 bearing, AT01700300A, 5*114.3 PCD.

Hub DrumBearingOil sealDust capWheel nut
AC00500300AL68149 & LM12749AC00500201AC00500405AT01600600
Hub drum body cJw 5 * 425" bolts & L68110 /LM12710 bearing raceinner / outer bearingLD. 43.5rr)m single lipO.D. 45.4mm drive in7/16" cone wheel nut
AC00500300FLM67048& LM11949AC00900500AC00500405AT01600600
Hub drum body cAv 5 * 425" bolts & LM67010 / LM11910 bearing raceinner / outer bearingLD. 36.5mm single lipO.D. 45.4mm drive in7/16" cone wheel nut
AC00500300BL68149 & LM12749AC00500201AC00500405AC00500302A
Hub drum body cA/v 5 * 4.5" bolts & L68110/LM12710bearirQ raceinner / outer bearingLD. 43.5mm single lipO.D. 45.4mm drive in1/2" cone wheel nut
AC00500300GLM67048& LM11949AC00900500AC00500405AC00500302A
Hub drum body cA/v 5 * 4.5" bolts & LM67010 / LM11910 bearing raceinner / outer bearingLD. 36.5mm single lipO.D. 45.4mm drive in1/2" cone wheel nut
AC00500300KLM67048& LM11949AC00900500AC00500405AT01600600
HUb drum body cAv5 * 120mm bdts & LM67010/LM11910 bearing raceinner / outer bearingLD. 36.5mm single lipO.D. 45.4mm drive in7/16" cone wheel nut
AC00500300LBL68149 & LM12749AC00500201AC00500405AC00500302A
HUb drum body dw5 * 120mm bolts &L68110/LM12710 bearing raceinner / outer bearingLD. 43.5rr)m single lipO.D. 45.4mm drive in1/2" cone wheel nut
AC00500300CL68149 & LM12749AC00500201AC00500405AT01600600
Hub drum body cAv 5 * 4.75" bolts & L68110/LM12710bearirQ raceinner / outer bearingLD. 43.5mm single lipO.D. 45.4mm drive in7/16" cone wheel nut
AC00500300HLM67048& LM11949AC00900500AC00500405AT01600600
Hub drum body cAv5* 475" bolts & LM67010 / LM11910 bearing raceinner / outer bearingLD. 36.5mm single lipO.D. 45.4mm drive in7/16" cone wheel nut
AC005003000L68149 & LM12749AC00500201AC00500405AT01700134C
Hub drum body cAa/5* 150mm bolts &L68110/LM12710 bearing raceinner / outer bearingLD. 43.5mm single lipO.D. 45.4mm drive in9/16" cone wheel nut
AC00500300DL68149 & LM12749AC00500201AC00500405AC00500302A
Hub drum body cAv 6 * 5.5" boHs & L68110/LM12710 bearing raceinner / outer bearingLD. 43.5rr)m single lipO.D. 45.4mm drive in1/2" cone wheel nut
AC00500300ILM67048& LM11949AC00900500AC00500405AC00500302A
Hub drum body c/v 6 * 5.5" bolts & LM67010 / LM11910 bearing raceinner / outer bearingLD. 36.5mm single lipO.D. 45.4mm drive in1/2" cone wheel nut
AC00500300DAL68149 & LM12749AC00500201AC00500405AC00500302A
Hub drum body c/a/6* 140mm bolts &L68110/LM12710 bearing raceinner / outer bearingLD. 43.5rr)m single lipO.D. 45.4mm drive in1/2" cone wheel nut


7


Features

  • Single-piece assembly makes installation a snap, whether you're retrofitting or switching from drum brakes
  • Machined process minimizes runout and warping
  • Contaminants can't get in between rotor and hub
  • Balanced unit provides smooth ride
  • Vented design effectively dissipates heat, preventing heat-related damage
  • 1/2" Wheel studs and industry-standard races are included
  • Cast iron construction ensures a favorable friction coefficient for necessary stopping power

Our Advantage


1. We have Researching and Development Department in Detroit,so we are also capable of developing products according drawing or samples to meet the special requirement of our customes.
2. We can supply 7 inch,10 inch,12 inch and 12.25 inch brakes for the moment.
3. All the parts for the brakes are produced by ourself,so we can supply our customer high quality products with resonable price.
