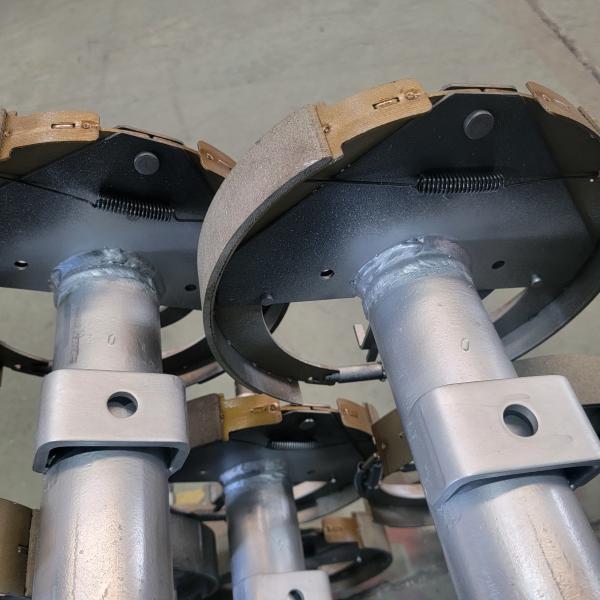

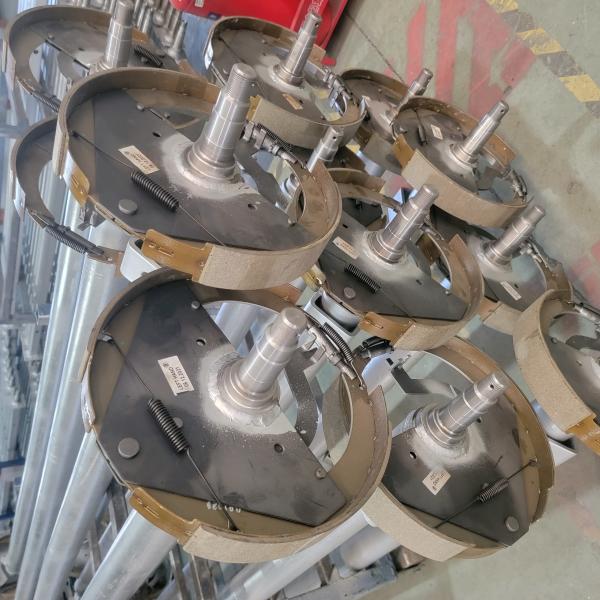

76MM 6000 Lb Galvanized Torsion Axle Mobile Home Trailer Axles
76MM 6000 Lb Galvanized Torsion Axle Mobile Home Trailer Axles
76MM 6000 Lb Galvanized Torsion Axle Mobile Home Trailer Axles
76MM 6000 Lb Galvanized Torsion Axle Mobile Home Trailer Axles
Specifications
Brand Name :
Airui
Model Number :
AC016
Certification :
ISO/TS16949
Place of Origin :
Shandong，China
MOQ :
Deliberations
Price :
Deliberations
Payment Terms :
L/C, T/T
Supply Ability :
20000 Set/Sets per Month
Delivery Time :
5-8 work days
Packaging Details :
1. Hot shrink poly per set/box and ten boxes in one carton. 2. Pallet packing. 3. As your requirements
Use :
Trailer Parts
Max Payload :
6000 lbs
Size :
12 inch
Material :
Steel
Quality :
100% Guaranteed
Length :
Customer Model
Tube :
60 mm square
Bolts :
5 bolts
Description

6000 Lbs 76 MM Square Solid Tube Straight Mobile House Trailer Axle

BOLT PATTERN
Use the distance between the center of one bolt hole to the center of the bolt hole adjacent to it:
If the distance is:
2-5/8" - the bolt pattern is 5 on 4-1/2
2-3/4" - the bolt pattern is 5 on 4-3/4
3" - the bolt pattern is 5 on 5
3-1/4" - the bolt pattern is 5 on 5-1/2

Hub Face (HF):

measure from one end of the axle where the lug bolts protrude out from to the other end at the same point. This is the Hub Face.

Spring Center (SC):

Measure from the middle of the spring on one axle to the center of the other spring on the same axle.

There should be about 15" difference between the Hub Face and the Spring Center measurement. (7-1/2" each side

NO. Description QTY option 1 option 2
1 axle shaft 1 76mm round tube 60mm Rd / Sq solid
2 oil seal 2 AC01600201
3 inner bearing 2 L68149/11
4 12" MH electric brake plate 2 AZ00500000UR
5 brake drum 2 AC01600300A
6 outer bearing 2 LM67048/10
7 flat washer 2 AC00201001
8 castle nut 2 AC00200701
9 split pin 2 AC00200404
10 dust cap 2 AC00300601
11 spring seat 2 AC01600601

76MM 6000 Lb Galvanized Torsion Axle Mobile Home Trailer Axles76MM 6000 Lb Galvanized Torsion Axle Mobile Home Trailer Axles

FAQ:

1: Could you please make us an offer as soon as possible?

In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.

2: Could you please provide us with the specifications of the products?

Sure, please confirm the product code you need before that.

3: How can you guarantee the quality of your products?

Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.

4: How to solve the problems in the later stage?

We are confident in our products. We pack them well to make sure they are well protected.

We are based in Shandong, China, start from 2006,sell to North America(67.00%),Oceania(20.00%),Domestic Market(6.00%),South America(00.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Africa(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%). There are total about 301-500 people in our office.
