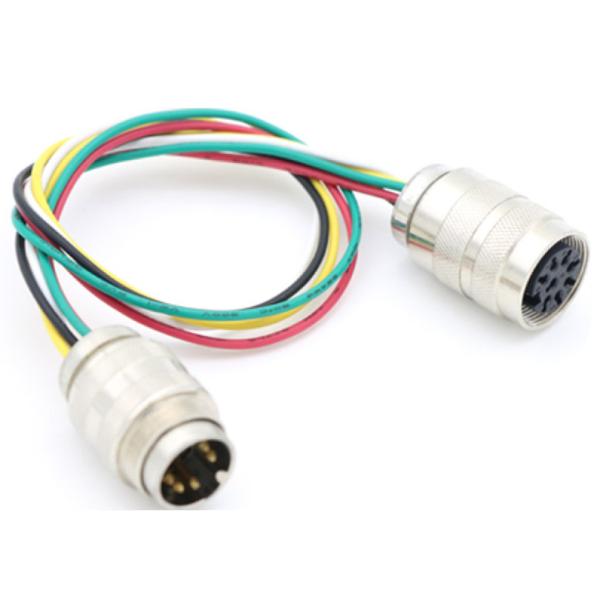

Automative waterproof wire M12 Male 5 PIN 8 PIN screw thread AISG panel amount PCB connector
Automative waterproof wire M12 Male 5 PIN 8 PIN screw thread AISG panel amount PCB connector
Automative waterproof wire M12 Male 5 PIN 8 PIN screw thread AISG panel amount PCB connector
Automative waterproof wire M12 Male 5 PIN 8 PIN screw thread AISG panel amount PCB connector
Automative waterproof wire M12 Male 5 PIN 8 PIN screw thread AISG panel amount PCB connector
Automative waterproof wire M12 Male 5 PIN 8 PIN screw thread AISG panel amount PCB connector
Automative waterproof wire M12 Male 5 PIN 8 PIN screw thread AISG panel amount PCB connector
Automative waterproof wire M12 Male 5 PIN 8 PIN screw thread AISG panel amount PCB connector
Specifications
Brand Name :
RITIAN
Model Number :
M12 AISG connector
Certification :
CE RoHs SASO IEC
Place of Origin :
China
MOQ :
negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 units per month
Delivery Time :
15 days
Packaging Details :
Packing of 1 unit per carton
Model :
M12 connector
Application :
wireless infrastructure industry
coupling Type :
screw shread
shell material :
Zinc alloys with nikelplated
contact material :
Brass with gold plated
termination :
solder
Gender :
Male
Pin :
3, 4, 5, 8, 12 pin
Protection class :
IP67
Description

Automative waterproof wire M12 Male 5 PIN 8 PIN screw thread AISG panel amount PCB connector

Generally Description:
Connector Series: M12
Standard: IEC 61076-2-101
Coding: A
Pins: 8
Gender: Male
Connector Design: Panel mount
Connector Locking System: Fix screw
Waterproof Rating: IP67/IP68
Ambient Temperature: -25℃~+85℃

Material:
Connector Body: PA66+GF
Contacts: Brass with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM
Glue: Black epoxy resin
Wire Jacket: PVC

Electrical data:
Rated Current: 2A
Rated Voltage: 30V
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ

Electrical & Mechanical data
AISG m16 8pin
Stardard
IEC 61076-2-106
Rated current
5a
Rated voltage
500v
Couplingg nut
Brass with nikel palsted screw
Orientation
straight
IP rating
IP67
Connector contacts
Brass with gold plated
Ambient temperature
-25°C ~ + 85°C

Automative waterproof wire M12 Male 5 PIN 8 PIN screw thread AISG panel amount PCB connectorAutomative waterproof wire M12 Male 5 PIN 8 PIN screw thread AISG panel amount PCB connectorAutomative waterproof wire M12 Male 5 PIN 8 PIN screw thread AISG panel amount PCB connector
