Specifications
Brand Name :
Ritian communication
Model Number :
RET-AISG
Certification :
UL CE ROHS
Place of Origin :
Guangdong, China
MOQ :
100 PCS
Price :
Negotiable
Supply Ability :
10000 Unit/Units per Month
Delivery Time :
1-2weeks
Packaging Details :
Packaging Details Plastic Bag Packing
Type :
Circular Connector
Description :
AISG M16 Connector
Orientation :
Straight
Contact Count :
2/3/4/5/6/8
Protection Level :
IP67
Description

DIN PIN M12 8pin 5pin Crimp press solder type electrical Cable assembly circular waterproof connector

M12 Male Angled PCB Mount Connector

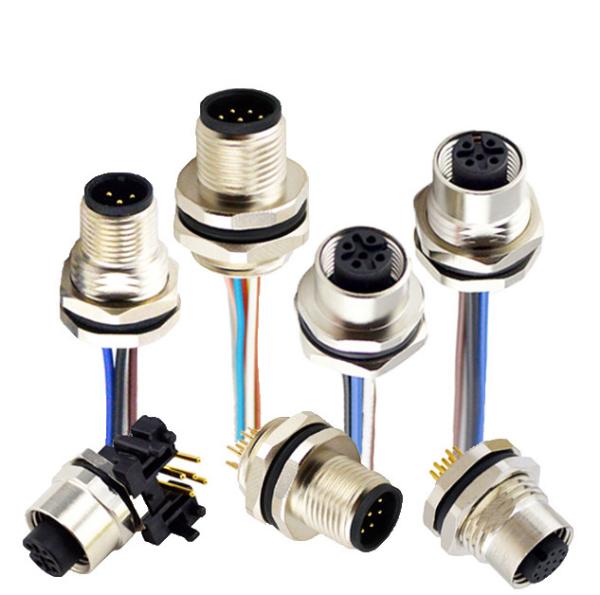

M12 panel connectors are available with Front mount, Back mount and Angled PCB mount

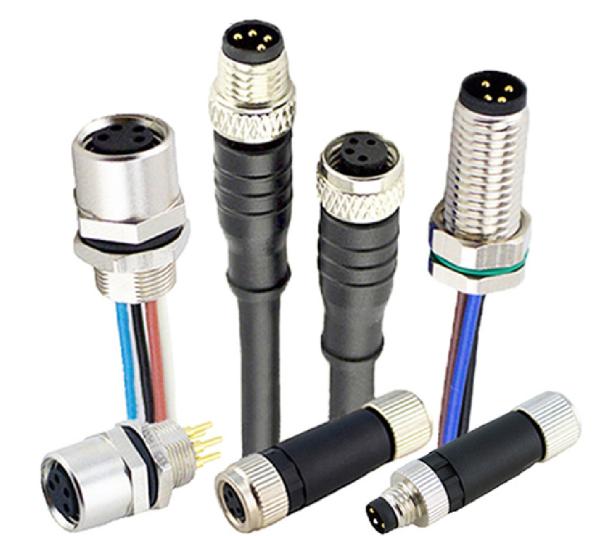

The M8 panel receptacles are ideal for compact and space-sensitive industrial applications.
RENHOTEC M8 panel connectors are available with solder termination and PCB panel assembly type, with rear mounting and front mounting.

· Operating voltage 60V / 30V, rated current 3A / 1A.
· 3 , 4 , 5 (B-Coding) , 6 , 8 ,12 , 17 poles are available.
· Protection degree IP67.
· Temperature range: -40℃~+105℃.
· Cable length 1m , 2m , 3m or upon customized specification.
· UL94-VO flame retardant degree.

Advantages :
Alternative mount arrangements for solder cup or PCB
Panel Mount and distribution version available
Available as a loose piece or as a pre-made M12 cables


M12 Panel Receptacles Connector
Coding
A / B / D
Number of Positions
3 / 4 / 5 / 8 / 12 / 17 Pin
Gender
Male / Female
Orientation
Straight / Right Angle
Mounting Type
PCB Mount / Panel Mount / Cable
Termination Style
Solder Type
Mounting Feature
Front Mount / Back Mount / 4 Hole Flange
Rated Current
4A / 2A / 1.5A
Operating Voltage
250V / 60V / 30V
Temperature Range
-25°C ~ + 80°C
IP Rating
IP67



Characteristics of M16 Series

General Characteristics
Number of contact 2 3DIN 4 5 5DIN 6DIN 7 7DIN 8DIN 12 14 19 24
Locking system screw M16*0.75
Termination solder, moulded on cable
Wire guage in mm² max 0.75 max 0.25 0.14
Wire guage in AWG max 20 max 24 26
Shell protection IP67/IP68
Mechanical operation ＞500 mating cycles
Upper temperature +85℃
Lower temperature -25℃
Electrical Characteristics
Rated voltage 250V 60V 250V 125V 60V
Test voltage 1750V 550V 1750V 910V 550V
Rated current(40℃) 7A 6A 5A 3A 1A
Pollution degree III
Contact resistance ≤5mΩ ≤3mΩ
Insulation resistance ≥10³MΩ
Materials
Pin contact CuZn
Socket contact CuSn
contact plating Au
Upper temperature PA66(UL 94V-0)
Female insent PA66(UL 94V-0)
Material of cable jacket PVC or PUR
Screw CuZn
Nut CuZn
