Competitive 4CH Full D1 128GB SD Card Mobile DVR With Optional GPS 3G
Competitive 4CH Full D1 128GB SD Card Mobile DVR With Optional GPS 3G
Competitive 4CH Full D1 128GB SD Card Mobile DVR With Optional GPS 3G
Competitive 4CH Full D1 128GB SD Card Mobile DVR With Optional GPS 3G
Competitive 4CH Full D1 128GB SD Card Mobile DVR With Optional GPS 3G
Competitive 4CH Full D1 128GB SD Card Mobile DVR With Optional GPS 3G
Competitive 4CH Full D1 128GB SD Card Mobile DVR With Optional GPS 3G
Competitive 4CH Full D1 128GB SD Card Mobile DVR With Optional GPS 3G
Specifications
Place of Origin :
Shenzhen
Brand Name :
A&S/ OEM
Certification :
CE/ FCC
Model Number :
AS-M610
MOQ :
1pc
Price :
US$200~300
Packaging Details :
Color Box
Delivery Time :
Within 3 Working Days
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs Per Month
Description

Main Features
1) 8V~36V Wide Range Power Input;
2) 4 Channel Full D1 Realtime Video/ Audio Recording;
3) Supports 2pcs of 128GB SD Card at the Same Time (maximum);
4) Motion Detect/ G-Sensor Alarm Record/ High Speed/ Low Speed Alarm;
5) 6 I/O Alarm Input & 1 Alarm Output;
6) UPS Technology (3~5s Power-off delay after power cut);
7) Max. 4 Hours Power-off Delay after ACC-off;
8) GPS Tracking;
9) 3G/ 4G Remote View on PC or Smartphone;
10) Supports talkback function (2 Ways Audio);
11) Geo-Fence/ Remote Engine Stopping/ Remote Oil Cut, etc;
12) Up to 98% Accuracy Passenger Counting (Optional).
Specifications

Power

Voltage Input

DC8-36V

Voltage Output

DC12V (+/-0.2V, max. 2.0A)

DC5V (+/-0.2V, max. 0.5A)

System

Language

Chinese/English

OSD

Graphical User interface OSD menu

Password

Users Password/ Administrator Password

Video

Video input

4CH Video Inputs (1.0Vp-p/ 75 Ohms)

Video output

2CH Video Inputs (1.0Vp-p/ 75 Ohms)

Preview

1 CH/ 4 CH Preview.

Recording Ratio

PAL: 25 Frame/s; NTSC: 30 Frame/s

Image Compression

H.264 Main profile

Audio

Audio input

4-CH

Audio output

1-CH

Recording mode

Audio & Video sync.

Image processing

& Storage

Video Quality

D1/HD1/CIF adjustable for each channel;

Highest Video Quality: 4CH Full D1

Bit Rate

D1: 800Kbps~3Mbps,

HD1: 600Kbps~2Mbps, CIF: 256Kbps ~ 1.5Mbps

8 levels optional.

Storage

2pcs of 128GB SD Card (maximum)

Alarm

Alarm input

6 alarm inputs

Alarm output

1 alarm output,

Communication Port

RJ45 Interface

Yes

RS232 Interface

2-RS232 interface

Wireless

3G

Built in WCDMA/ CDMA2000 Module (Optional)

Wi-Fi

Built in Wi-Fi Module (Optional)

GPS

Built-in GPS module

G-Sensor

Yes

Upgrade

Support HDD & SD card Firmware Upgrading

Operation Environment

Temperature

-25 degrees to +70 degrees

Humidity

10% to 95%
Competitive 4CH Full D1 128GB SD Card Mobile DVR With Optional GPS 3G

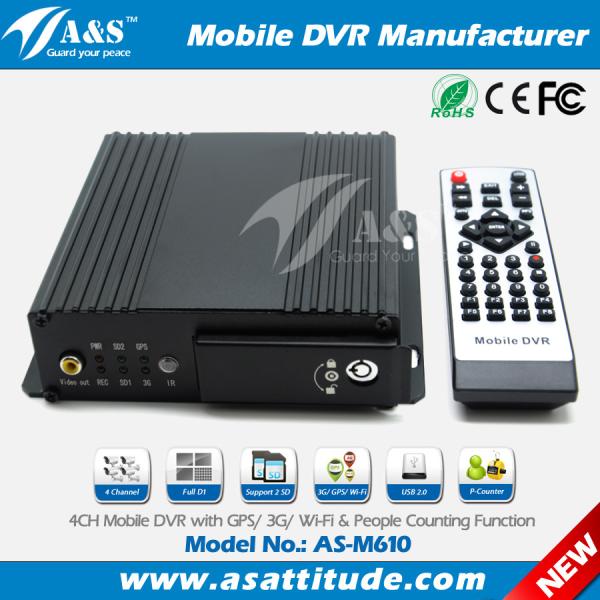

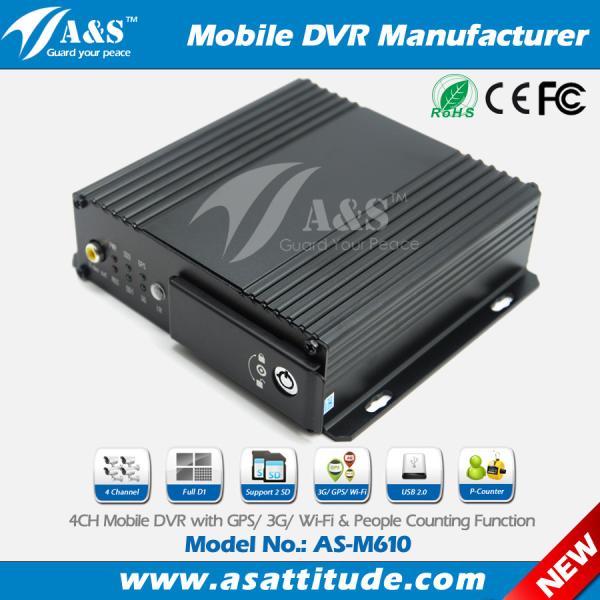

Product Showcase

Competitive 4CH Full D1 128GB SD Card Mobile DVR With Optional GPS 3G

Player Software

Competitive 4CH Full D1 128GB SD Card Mobile DVR With Optional GPS 3G

Client Software

Competitive 4CH Full D1 128GB SD Card Mobile DVR With Optional GPS 3G

Successful Cases

Competitive 4CH Full D1 128GB SD Card Mobile DVR With Optional GPS 3G Competitive 4CH Full D1 128GB SD Card Mobile DVR With Optional GPS 3G
