7.0 Inch TFT LCD Display 1024X600 TFT Touch Screen Module 50 Pin RGB Interface
7.0 Inch TFT LCD Display 1024X600 TFT Touch Screen Module 50 Pin RGB Interface
7.0 Inch TFT LCD Display 1024X600 TFT Touch Screen Module 50 Pin RGB Interface
7.0 Inch TFT LCD Display 1024X600 TFT Touch Screen Module 50 Pin RGB Interface
7.0 Inch TFT LCD Display 1024X600 TFT Touch Screen Module 50 Pin RGB Interface
7.0 Inch TFT LCD Display 1024X600 TFT Touch Screen Module 50 Pin RGB Interface
Specifications
Brand Name :
AISON
Model Number :
Z070WS03
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable based on quantity
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Carton/Blister Package
Name :
TFT LCD Display
Resolution :
1024X600
Outline dimension :
164.9*100*3.5mm
Active area :
154.21 x 85.92mm
Interface :
RGB
Brightness :
400 cd/m2
LCD Type :
TFT, Normally White, Transmissive
Contrast Ratio :
800:1
Operating temperatures :
-20℃ To +70℃
Storage temperatures :
-30℃ To +80℃
Description

7.0 inch 1024X600 TFT LCD Module, TN Display RGB Interface 50 Pin

General Description

This 7.0-inch TFT LCD with a TN display, featuring a resolution of 1024x600 pixels and an RGB interface. This display offers reliable performance and clear visuals, making it suitable for a wide range of applications.

The display features an aspect ratio of 16:9. The power voltage (DVDD) ranges from 3.0V to 3.6V, with a typical value of 3.3V. It includes an anti-glare surface panel, with an viewing direction 75/70/75/75. The brightness ranges from 400 nits to 450 nits.


This 7 inch TFT Displays Operating temperatures range from -20°C to +70°C, with storage temperatures from -30°C to +80°C. This TFT display model is suitable for various industrial control product applications.

It is designed to be versatile and easy to integrate into various devices and systems. Its compact size and lightweight construction make it ideal for portable devices, automotive displays, home appliances, and more.

We also can offer the option of a custom solution with either a capacitive or resistive touchscreen.

General Data

Model Name 7 inch 1024x620 TFT Display
Resolution 1024x600 mm
Model Size (W*H*T) 164.9*100*3.5 mm
Display Area (W*H) 154.21 x 85.92
Interface RGB
Display Mode Normally White,Transmissive
Viewing 12 o'clock
Brightness 400 cd/m2
Pin number 50 pin
Contrast Ratio 800:1
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree

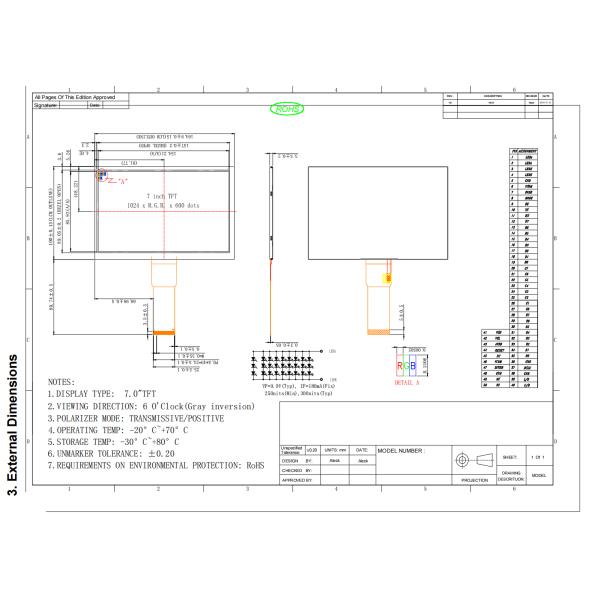

Drawing

7.0 Inch TFT LCD Display 1024X600 TFT Touch Screen Module 50 Pin RGB Interface

Product Details

7.0 Inch TFT LCD Display 1024X600 TFT Touch Screen Module 50 Pin RGB Interface7.0 Inch TFT LCD Display 1024X600 TFT Touch Screen Module 50 Pin RGB Interface

TFT Applications:

This 7 inch TFT LCD module is well-suited for applications in industrial control equipment, testing devices, medical equipment, and smart home devices, among others. Due to its versatility, this TFT LCD module is suitable for a variety of application scenarios.

7.0 Inch TFT LCD Display 1024X600 TFT Touch Screen Module 50 Pin RGB Interface
