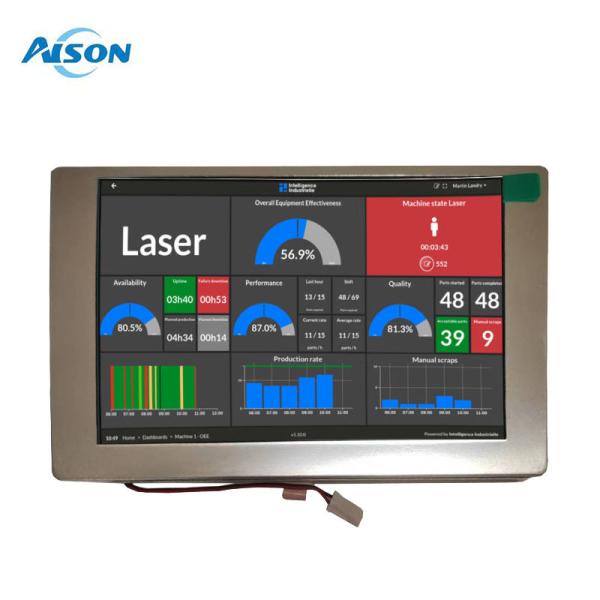

5.7 TFT LCD Display 320x240 Industrial LCD Panel 750 Nits 18 Bit RGB Interface
5.7 TFT LCD Display 320x240 Industrial LCD Panel 750 Nits 18 Bit RGB Interface
5.7 TFT LCD Display 320x240 Industrial LCD Panel 750 Nits 18 Bit RGB Interface
5.7 TFT LCD Display 320x240 Industrial LCD Panel 750 Nits 18 Bit RGB Interface
5.7 TFT LCD Display 320x240 Industrial LCD Panel 750 Nits 18 Bit RGB Interface
5.7 TFT LCD Display 320x240 Industrial LCD Panel 750 Nits 18 Bit RGB Interface
Specifications
Brand Name :
AISON
Model Number :
Z057Q01
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
38~60usd/pc
Payment Terms :
T/T
Supply Ability :
200k/month
Delivery Time :
3-4 weeks for mass production
Packaging Details :
Blister Package/Carton
Name :
TFT LCD Display
Resolution :
320x240
Outline dimension :
46x116.5x3.03mm
Active area :
39.18 x 94.032mm
Interface :
18 Bit RGB
Viewing angle :
70/70/60/40
Brightness :
750cd/m2
Display mode :
TFT,Normally White
Viewing Direction :
12 o'clock
Driver IC :
HX8218C04+HX8615C
Description

5.7 inch TFT LCD Display 18 Bit RGB Interface 750 nits for Industrial Application

Display General Description

Z057Q01 is a 5.7-inch diagonal 320x240 standard TFT LCD display module. The view direction is 12 o'clock, grayscale inversion is at 6 o'clock, and the aspect ratio is 4:3.


Measuring 144×104.6 mm, with an active area of 115.2×86.40 mm,the TFT display module integrates HX8218 and HX8615 driver ICs, supporting a 18-bit RGB Interface. Its 5.7-inch TFT LCD panel boasts a brightness of 750 cd/m2 and a contrast ratio (typical value) of 300:1. Thanks to its anti-glare display surface, reflections are minimized, ensuring superior image quality.


Operating within a temperature range of -20 to +70℃, and with a storage temperature spanning from -30 to +80℃, this module is built to withstand diverse environmental conditions.

General Data

Model Name 5.7 inch TFT LCD Display
Resolution 320x240
Model Size (W*H*T)mm 144.00*104.6*13.00mm
Display Area (W*H)mm 115.20*86.40mm
Interface 18 bit RGB
Display Mode Normally White TN,Transmissive
Viewing 12:00 o'clock
Brightness 750 cd/m2
Pin number 33
Drive IC HX8218C04+HX8615C
BACKLIGHT TYPE 21-DIES WHITE LED
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree

Drawing

5.7 TFT LCD Display 320x240 Industrial LCD Panel 750 Nits 18 Bit RGB Interface

Product Details

5.7 TFT LCD Display 320x240 Industrial LCD Panel 750 Nits 18 Bit RGB Interface5.7 TFT LCD Display 320x240 Industrial LCD Panel 750 Nits 18 Bit RGB Interface

TFT Applications

This TFT LCD module is versatile and suitable for a wide range of applications:
Mixing Consoles
Medical Monitoring Equipment
Industrial Equipment Control Panels

5.7 TFT LCD Display 320x240 Industrial LCD Panel 750 Nits 18 Bit RGB Interface
