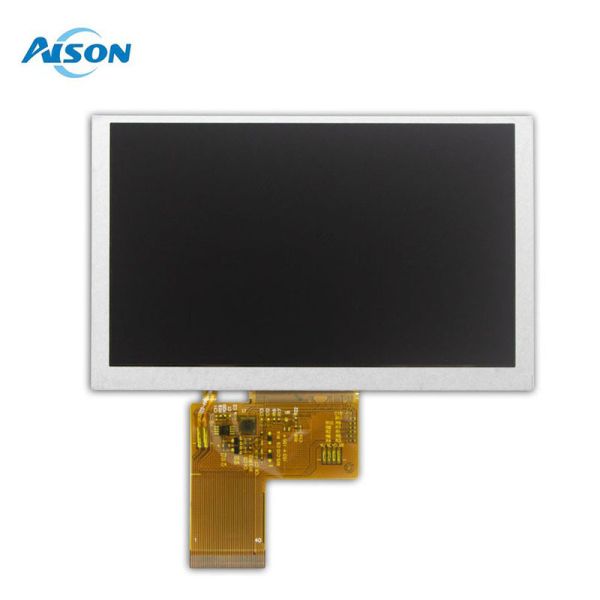

5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
Specifications
Brand Name :
AISON
Model Number :
Z050WV21
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
Name :
5 inch LVDS TFT Module Display
Resolution :
800x480
Outline dimension :
120.7*75.8*2.9mm
Active area :
108 x 64.80 mm
Interface :
LVDS
Brightness :
500cd/m2
Display mode :
TFT, Normally Black, Transmissive
Viewing Direction :
ALL/IPS
Operating temperatures :
-30 to 80 ℃
Storage temperatures :
-35 to 85 ℃
Description

5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2

Display General Description
Z050WV21 is a 5 inch IPS TFT LCD panel display featuring IPS panel technology and a resolution of 800 x 480 pixels. The TFT-LCD module supports a LVDS interface. It boasts a brightness of 500 nits (typical) and a high contrast ratio of 1000:1 (typical). Additionally, it offers a wide operating temperature range from -30°C to +80°C, with a storage temperature range of -35°C to +85°C.
This 5” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value). The supply voltage of Z050WV21 model is from 3.1 to 3.6V, aspect ratio 5:3, normally black, transmissive LCD type, Anti-glare surface glass.

General Data

Model Name 5 Inch IPS TFT LCD Display
Resolution 800x480
Model Size (W*H*T)
120.7*75.8*2.9 mm
Display Area (W*H)
108 x 64.80 mm
Interface LVDS
Display Mode Normally Black,Transmissive
Viewing Angels 85/85/85/85
Brightness 500 cd/m2
Pin number 40
Contrast Ratio
 1000:1
BACKLIGHT TYPE 12 WHITE LED
Operating temperatures -30 to 80 ℃
Storage temperatures -35 to 85 ℃

Drawing

5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2

Product Details

5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M25'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2

TFT Applications

The 5 inch IPS LVDSTFT Displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.

5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
