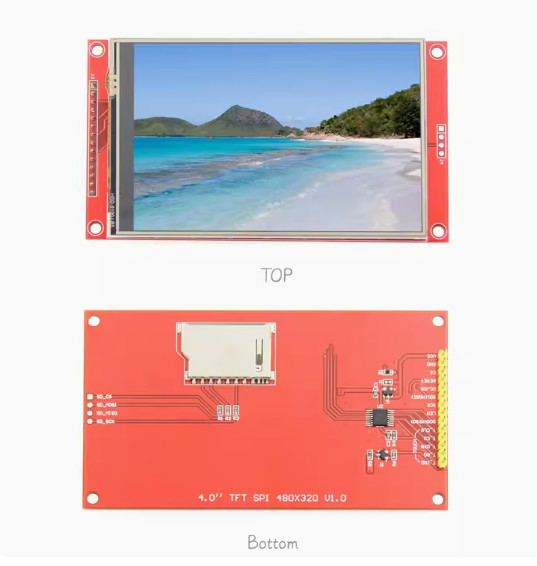

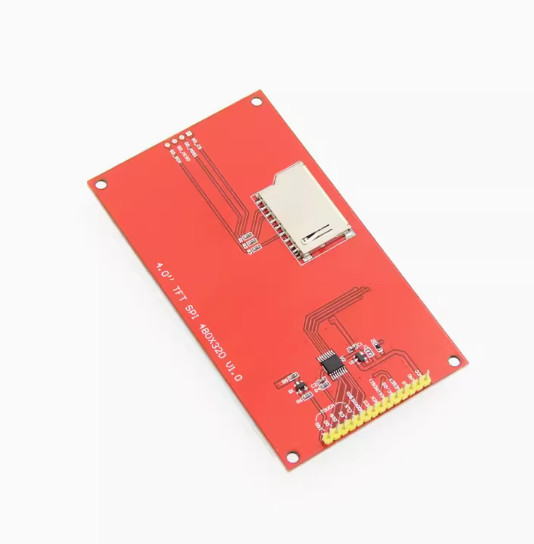

4 Inch SPI LCD Module 3.3V - 5V 320x480 Display With PCB Board
4 Inch SPI LCD Module 3.3V - 5V 320x480 Display With PCB Board
4 Inch SPI LCD Module 3.3V - 5V 320x480 Display With PCB Board
4 Inch SPI LCD Module 3.3V - 5V 320x480 Display With PCB Board
4 Inch SPI LCD Module 3.3V - 5V 320x480 Display With PCB Board
4 Inch SPI LCD Module 3.3V - 5V 320x480 Display With PCB Board
4 Inch SPI LCD Module 3.3V - 5V 320x480 Display With PCB Board
4 Inch SPI LCD Module 3.3V - 5V 320x480 Display With PCB Board
4 Inch SPI LCD Module 3.3V - 5V 320x480 Display With PCB Board
4 Inch SPI LCD Module 3.3V - 5V 320x480 Display With PCB Board
Specifications
Brand Name :
AISON
Model Number :
MSP4020
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Carton
Name :
SPI LCD Module
Resolution :
320x480
Module PCB Size :
61.74*108.04mm
Active area :
55.68x83.52mm
Interface :
SPI 4-line
Viewing Angle :
55/65/65/65
Display Mode :
TFT,Normally White
Operating temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Description

4 inch SPI TFT LCD Module ST7796 with PCB Board


Display General Description

1. 4.0-inch color screen,support 65K color display,display rich colors.
2. 480X320 resolution, optional resistive touch function.
3. Using the SPI serial bus, it only takes a few IOs to illuminate the display.
4. Easy to expand the experiment with SD card slot.
5. Provide a rich sample program.
6. Military-grade process standards, long-term stable work.
7. Provide underlying driver technical support.

General Data

Model Name 4 inch SPI TFT LCD Module
Resolution 320x480
Module PCB Size
61.74*108.04mm
Display Area
55.68x83.52mm
Interface 4 Line SPI
Display Mode Normally White,Transmissive
Viewing angles
 55/65/65/65
Driver IC ST7796
Voltage 3.3~5V
Operating temperatures
 -20 to 70 degree
Storage temperatures -30 to 80 degree
PCB Board With
Touch Screen Optional



Product Details
4 Inch SPI LCD Module 3.3V - 5V 320x480 Display With PCB Board4 Inch SPI LCD Module 3.3V - 5V 320x480 Display With PCB Board4 Inch SPI LCD Module 3.3V - 5V 320x480 Display With PCB Board4 Inch SPI LCD Module 3.3V - 5V 320x480 Display With PCB Board4 Inch SPI LCD Module 3.3V - 5V 320x480 Display With PCB Board4 Inch SPI LCD Module 3.3V - 5V 320x480 Display With PCB Board
