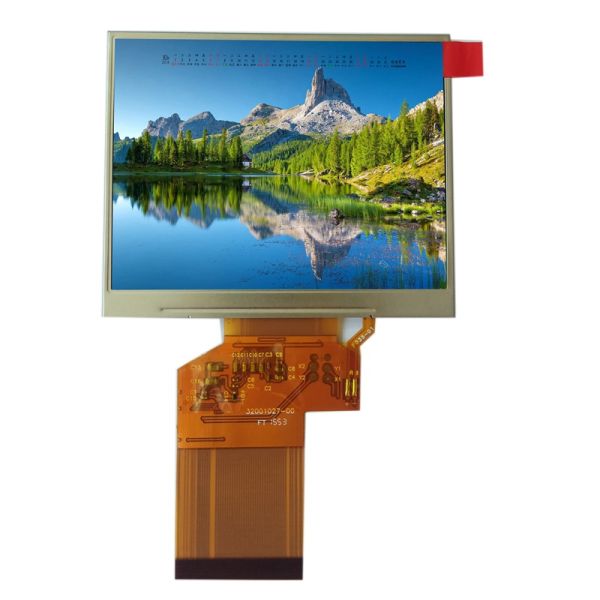

350cd/M2 TFT Display Module 3.5 Inch 320x240 LCD Display TN With RGB 24 Bit 54pin Interface
350cd/M2 TFT Display Module 3.5 Inch 320x240 LCD Display TN With RGB 24 Bit 54pin Interface
350cd/M2 TFT Display Module 3.5 Inch 320x240 LCD Display TN With RGB 24 Bit 54pin Interface
350cd/M2 TFT Display Module 3.5 Inch 320x240 LCD Display TN With RGB 24 Bit 54pin Interface
350cd/M2 TFT Display Module 3.5 Inch 320x240 LCD Display TN With RGB 24 Bit 54pin Interface
350cd/M2 TFT Display Module 3.5 Inch 320x240 LCD Display TN With RGB 24 Bit 54pin Interface
Specifications
Brand Name :
AISON
Model Number :
Z035NC111
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Carton/Blister
Name :
TFT Display Module
Resolution :
320x240
Outline dimension :
76.90*63.9*3.26mm
Active area :
70.08 x 52.56mm
Interface :
24 Bit RGB
Brightness :
350cd/m2
Operating temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Description

3.5 Inch TFT Display Module 320x240 TN With RGB 24 Bit 54pin Interface

Display General Description
The AISON TFT Z035NC111 is a versatile and high-performance color display module featuring a 3.5-inch TN TFT LCD screen with a resolution of 320x240 RGB pixels and a typical brightness of 350 cd/m2. It is equipped with the HX8238D driver IC and supports a 24-bit RGB interface, ensuring compatibility with a wide range of MCUs including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi.

Designed for seamless integration, the TFT Z035NC111 features a 54-pin Flexible Printed Circuit (FPC) and FPC-connector mode, allowing easy and reliable connections to your PCB's ZIF connector. This eliminates the need for complex wiring and saves valuable time during the integration process.

The AISON Z035Q08 is suitable for various applications, including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.

AISON Technology offers a diverse range of options tailored to your needs, including customized FPCs, integrated cover lenses, touch screens, and driver boards. Our goal is to provide you with an optimized display solution that perfectly matches your unique preferences. Additionally, we are committed to accommodating customer requests for customized demo kits, ensuring that your experience with our products is exceptional.

General Data

Product Name 3.5 inch LCD Module
Number of Pixel 320x240
Interface RGB
Luminance(cd/m2) 350cd/m2
Active area 70.08 x 52.56mm
LCM (W x H x D) 76.90*63.9*3.26mm
Viewing Direction(eye) 12 O'clock
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree

Drawing
350cd/M2 TFT Display Module 3.5 Inch 320x240 LCD Display TN With RGB 24 Bit 54pin Interface

Product Details

350cd/M2 TFT Display Module 3.5 Inch 320x240 LCD Display TN With RGB 24 Bit 54pin Interface

350cd/M2 TFT Display Module 3.5 Inch 320x240 LCD Display TN With RGB 24 Bit 54pin Interface

TFT Applications

This 3.5 inch 320x240 tft display is suitable for industrial control, medical equipment, and consumer electronics applications.

350cd/M2 TFT Display Module 3.5 Inch 320x240 LCD Display TN With RGB 24 Bit 54pin Interface
