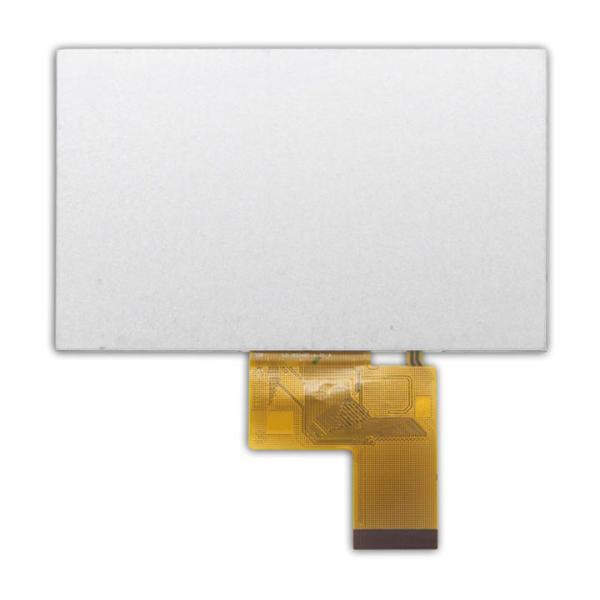

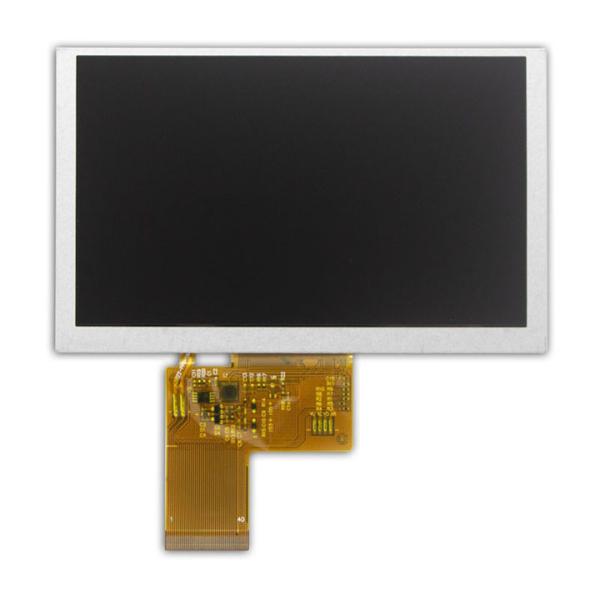

5.0 Inch LVDS LCD Module 1000 Cd/M2 Industrial Touch Display 800x480
5.0 Inch LVDS LCD Module 1000 Cd/M2 Industrial Touch Display 800x480
5.0 Inch LVDS LCD Module 1000 Cd/M2 Industrial Touch Display 800x480
5.0 Inch LVDS LCD Module 1000 Cd/M2 Industrial Touch Display 800x480
5.0 Inch LVDS LCD Module 1000 Cd/M2 Industrial Touch Display 800x480
5.0 Inch LVDS LCD Module 1000 Cd/M2 Industrial Touch Display 800x480
Specifications
Brand Name :
AISON
Model Number :
Z050WV21J
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Carton/Blister
Name :
LVDS LCD Module
Resolution :
800x480
Outline dimension :
120.7*75.8*2.9mm
Active area :
108x64.8 mm
Interface :
LVDS
Brightness :
1000 cd/m2
Operating temperatures :
-30 to 80 degree
Storage temperatures :
-35 to 85 degree
Description

5.0 Inch LVDS IPS TFT LCD Module 1000cd/M2 800x480, LVDS Interface For Industrial Application

General Description

Z050WV21J is 5 inch 800x480 resolution LCD display with LVDS interface, standard brightness is 1000cd/m2. For this 5 inch TFT LCD module, driver IC is ST7262A, Wide working temp. from -30 to +80,storage temperatures -35 to 85 degree, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for industrial grade and automotive application.

The 5.0-inch TFT LCD Panel is a versatile display solution designed to excel in a variety of demanding applications. With a brightness of 500cd/m² and a resolution of 800 x 480 pixels, this panel ensures that visuals are vibrant and easily readable, even in bright outdoor conditions.


Its LVDS interface facilitates smooth integration into diverse systems, making it an excellent choice for everything from outdoor digital signage and kiosks to industrial control panels and rugged handheld devices. The ultra-wide temperature range of -35°C to +85°C allows for reliable performance in extreme environments, making it suitable for applications in transportation, medical devices, and military equipment.


Whether you're developing a portable device that needs to withstand tough conditions or an outdoor display that requires high visibility, the 5.0-inch TFT LCD Panel delivers the durability and performance you need. Explore how this display can elevate your next innovative project.


We can also offer the option of a custom solution with either a capacitive or resistive touchscreen.

General Data

Product Name 5 Inch LVDS TFT Module
Number of Pixel 800x480
Interface LVDS
Luminance(cd/m2) 1000 cd/m2
Active area
120.7*75.8*2.9 mm
LCM (W x H x D)
108x64.8 mm
Viewing Direction(eye) IPS/ALL
Operating temperatures -30 to 80 degree
Storage temperatures -35 to 85 degree

Drawing

5.0 Inch LVDS LCD Module 1000 Cd/M2 Industrial Touch Display 800x480

Product Details

5.0 Inch LVDS LCD Module 1000 Cd/M2 Industrial Touch Display 800x4805.0 Inch LVDS LCD Module 1000 Cd/M2 Industrial Touch Display 800x480

TFT Applications

The 5 inch IPS 800x480 LVDS TFT Displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.
