15.6 Inch TFT Capacitive Touch Screen 1920x1080 PCAP Touch Display Industrial
15.6 Inch TFT Capacitive Touch Screen 1920x1080 PCAP Touch Display Industrial
15.6 Inch TFT Capacitive Touch Screen 1920x1080 PCAP Touch Display Industrial
15.6 Inch TFT Capacitive Touch Screen 1920x1080 PCAP Touch Display Industrial
15.6 Inch TFT Capacitive Touch Screen 1920x1080 PCAP Touch Display Industrial
15.6 Inch TFT Capacitive Touch Screen 1920x1080 PCAP Touch Display Industrial
15.6 Inch TFT Capacitive Touch Screen 1920x1080 PCAP Touch Display Industrial
15.6 Inch TFT Capacitive Touch Screen 1920x1080 PCAP Touch Display Industrial
Specifications
Brand Name :
AISON
Model Number :
Z156FH03-CT
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Carton/Blister
Name :
TFT Capacitive Touch Screen
Resolution :
1920x1080
Outline dimension :
384.16*253.58*11.6 mm
Active area :
344.16 (H) ×193.59 (V) mm
Interface :
LVDS
Brightness :
900 cd/m2
Operating temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Display Mode :
TFT,Normally Black
Touch :
with Captouch
Description

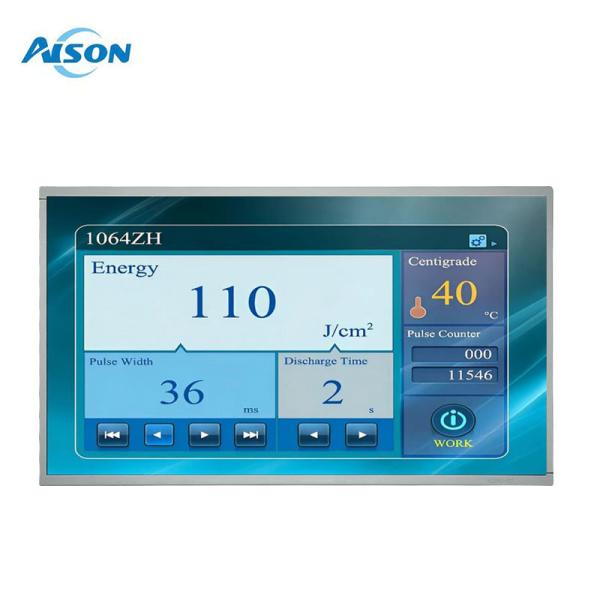

15.6 inch LVDS PCAP Touch TFT LCD Display 1920x1080 for Industrial Application

General Description

Z156FH03-CT is a 15.6-inch high resolution TFT LCD display module boasting a resolution of 1920x1080 pixels and PCAP touch functionality. This high resolution TFT LCD display module features a built-in TC2055G driver IC and supports LVDS interface. With outline dimensions of 384.16*253.58 mm and an active area size of 344.16 x 193.59 mm, it utilizes IPS technology to deliver a wider viewing angle of 85 degrees in all directions (Left: 85 / Right: 85 / Up: 85 / Down: 85).


With a high contrast ratio of 800:1 (typical value) and a brightness of 1000 nits (typical value), this model ensures vivid and clear visuals, enhancing the user experience. Additionally, the module adopts a projected capacitive touch panel (PCAP) with ILI2511 IC, which supports USB and I2C interfaces and 10-point touch, further elevating its usability and functionality.


Operating within a power voltage range of 3.0V to 3.6V (typical value: 3.3V), this module is designed to withstand various environmental conditions. Its operating temperature ranges from -20°C to +70°C, while the storage temperature extends from -30°C to +80°C, making it suitable for a wide range of applications. From industrial machinery and equipment to HMI (Human-Machine Interface) systems, POS (Point of Sale) terminals, and outdoor vending systems, this high resolution TFT LCD display module offers excellent performance and reliability.

General Data

Model Name 15.6 inch LVDS PCAP Touch TFT LCD Display
Resolution 1920x1080
Model Size (W*H*T)
384.16*253.58*11.6 mm
Display Area (W*H) 344.16 (H) ×193.59 (V) mm
Interface LVDS
Display Mode Normally Black,Transmissive
Viewing Angles 85/85/85/85
Brightness 1000 cd/m2
Pin number 30 pin
Touch
with Capacitive Touch Panel
Operating temperatures -20 to 70 ℃
Storage temperatures -30 to 80 ℃

Drawing

15.6 Inch TFT Capacitive Touch Screen 1920x1080 PCAP Touch Display Industrial15.6 Inch TFT Capacitive Touch Screen 1920x1080 PCAP Touch Display Industrial

Product Details

15.6 Inch TFT Capacitive Touch Screen 1920x1080 PCAP Touch Display Industrial15.6 Inch TFT Capacitive Touch Screen 1920x1080 PCAP Touch Display Industrial15.6 Inch TFT Capacitive Touch Screen 1920x1080 PCAP Touch Display Industrial

TFT Applications

From industrial machinery and equipment to HMI (Human-Machine Interface) systems, POS (Point of Sale) terminals, and outdoor vending systems, this high resolution TFT LCD display module offers excellent performance and reliability.
