Specifications
Brand Name :
AISON
Model Number :
Z070TN92-T
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable based on quantity
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Carton/Blister Package
Name :
7 inch TFT Display with RTP
Resolution :
800x480
Outline dimension :
164.9*100.0*6.9 mm
Active area :
154.08 x 85.92mm
Interface :
24 bit RGB
Brightness :
300 cd/m2
Operating Temperature :
-20~70℃
Storage Temperature :
-30~80℃
Description

7 Inch 800X480 Resistive Touch Panel 50 Pin RGB 24 Bit 7 inch RTP Display

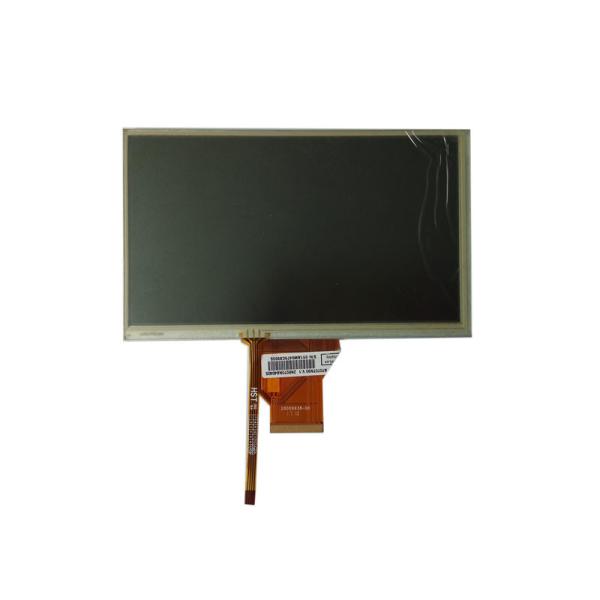

General Description
The Z070TN92-T is a 7-inch TFT LCD module with a resistive touch panel (RTP) and WVGA resolution of 800x480 pixels. This TFT module incorporates EK79713CA and EK73202AB2 driver ICs and supports a 24-bit RGB interface with a typical brightness of 300 nits.

The supply voltage for logic (VCC) of the Z070TN92-T ranges from 3.0V to 3.6V, with a typical value of 3.3V. It has a viewing direction of 12 o'clock, gray scale inversion at 6 o'clock, and an aspect ratio of 16:9. The contrast ratio is 800:1 (typical value). The module operates within a temperature range of -20°C to +70°C and can be stored at temperatures from -30°C to +80°C.

This product has a wide range of applications and is suitable for use in embedded systems, medical instruments, GPS navigation, surveillance systems, and various industrial control products.

General Data

Model Name 7 inch RTP TFT LCD Display
Resolution 800*(RGB)*480
Model Size (W*H*T)mm 164.9*100*6.9 mm
Display Area (W*H)mm 154.08 x 85.92mm
Interface RGB
Display Type Normally White TN,Transmissive
Viewing 12:00 o'clock
Brightness 300 cd/m2
Pin number 50
Interface RGB
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree

Drawing

7 Inch 800X480 Resistive Touch Panel 50 Pin RGB 24 Bit 7 inch RTP Display

Product Details

7 Inch 800X480 Resistive Touch Panel 50 Pin RGB 24 Bit 7 inch RTP Display7 Inch 800X480 Resistive Touch Panel 50 Pin RGB 24 Bit 7 inch RTP Display

TFT Applications:

This product has a wide range of applications and is suitable for use in embedded systems, medical instruments, GPS navigation, surveillance systems, and various industrial control products.
