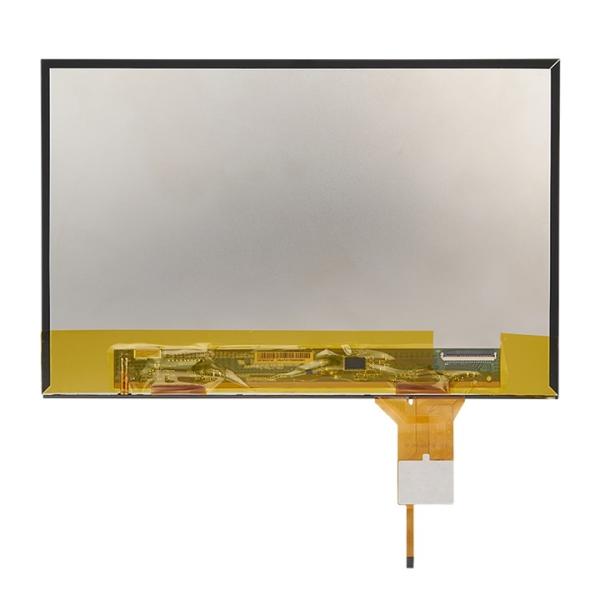

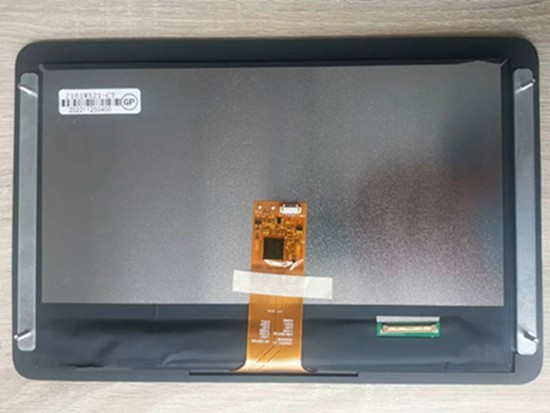

10.1 inch LVDS IPS Touch Screen Display 1280x800 TFT Display With Captouch Screen
10.1 inch LVDS IPS Touch Screen Display 1280x800 TFT Display With Captouch Screen
10.1 inch LVDS IPS Touch Screen Display 1280x800 TFT Display With Captouch Screen
10.1 inch LVDS IPS Touch Screen Display 1280x800 TFT Display With Captouch Screen
10.1 inch LVDS IPS Touch Screen Display 1280x800 TFT Display With Captouch Screen
10.1 inch LVDS IPS Touch Screen Display 1280x800 TFT Display With Captouch Screen
10.1 inch LVDS IPS Touch Screen Display 1280x800 TFT Display With Captouch Screen
10.1 inch LVDS IPS Touch Screen Display 1280x800 TFT Display With Captouch Screen
Specifications
Brand Name :
AISON
Model Number :
Z101WX21-CT
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
Name :
10.1 inch USB Touch Screen Display
Resolution :
1280X800
Outline dimension :
260X169*5.7mm
Active area :
216.96X135.6mm
Interface :
LVDS
Display Mode :
Normally Black, Transmissive
Brightness :
300 cd/m2
Operating temperatures :
-20 to 70 degree
Contrast Ratio :
1000:1
Description

10.1 inch LVDS IPS Touch Screen Display 1280x800 TFT Display With Captouch Screen

Display General Description

The Z101WX21-CT is a remarkable 10.1-inch LVDS TFT LCD featuring a Projected Capacitive Touch Panel (PCAP), specifically designed for a wide range of applications, including industrial control panels, testing equipment, medical devices, vending machines, and automatic payment machines.

Z101WX21-CT is a 10.1-inch IPS TFT LCD Panel with high resolution of 1280 x 800 pixels. This module is built-in with EK79202B1 driver IC, and it supports LVDS interface. Z101WX21-CT is adopted IPS panel which is having the advantage of wider view angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical), contrast ratio 1000:1 (typical value), brightness 350 nits (minimum value), anti-glare surface panel, aspect ratio 16:10.

Z101WX21-CT model is also available in projected capacitive touch screen (PCAP) and resistive touch screen (RTP) and we can support all kinds of custom solutions for customer.

The supply voltage (VCC) of Z101WX21-CT is from 3.0V to 3.5V, the typical value of 3.3V. It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.This 10.1 inch IPS lcd module is built to withstand diverse environmental conditions.


General Data

Model Name 10.1 inch LVDS IPS Touch Screen Display
Resolution 1280X800
Model Size (W*H*T)mm
260X169*5.7
Display Area (W*H)mm
216.96X135.6
Interface LVDS
Display Mode Normally Black,Transmissive
Viewing IPS/ALL
Brightness 300 cd/m2
Pin number 40
Viewing Angle 85/85/85/85
BACKLIGHT TYPE 36 WHITE LED
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree


Drawing

10.1 inch LVDS IPS Touch Screen Display 1280x800 TFT Display With Captouch Screen

Product Details

10.1 inch LVDS IPS Touch Screen Display 1280x800 TFT Display With Captouch Screen


TFT Applications
The Z101WX21-CT is a remarkable 10.1-inch LVDS TFT LCD featuring a Projected Capacitive Touch Panel (PCAP), specifically designed for a wide range of applications, including industrial control panels, testing equipment, medical devices, vending machines, and automatic payment machines.
