1.6 Inch 400x400 Customized Circle TFT Display 230 cd/m2 ST77903 QSPI Interface
1.6 Inch 400x400 Customized Circle TFT Display 230 cd/m2 ST77903 QSPI Interface
1.6 Inch 400x400 Customized Circle TFT Display 230 cd/m2 ST77903 QSPI Interface
1.6 Inch 400x400 Customized Circle TFT Display 230 cd/m2 ST77903 QSPI Interface
1.6 Inch 400x400 Customized Circle TFT Display 230 cd/m2 ST77903 QSPI Interface
1.6 Inch 400x400 Customized Circle TFT Display 230 cd/m2 ST77903 QSPI Interface
Specifications
Brand Name :
AISON
Model Number :
Z016WQ01
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package
Name :
1.6 inch Circular TFT Display
Resolution :
400X400
Outline dimension :
42.92*45.87*2.2mm
Active area :
39.840*39.840mm
Interface :
QSPI
Viewing angle :
85/85/85/85
Brightness :
230 cd/m2
Display mode :
TFT, Normally Black, Transmissive
Operating temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Description

1.6 Inch 400x400 Circular TFT Display ST77903 QSPI Interface Round Display

General Description

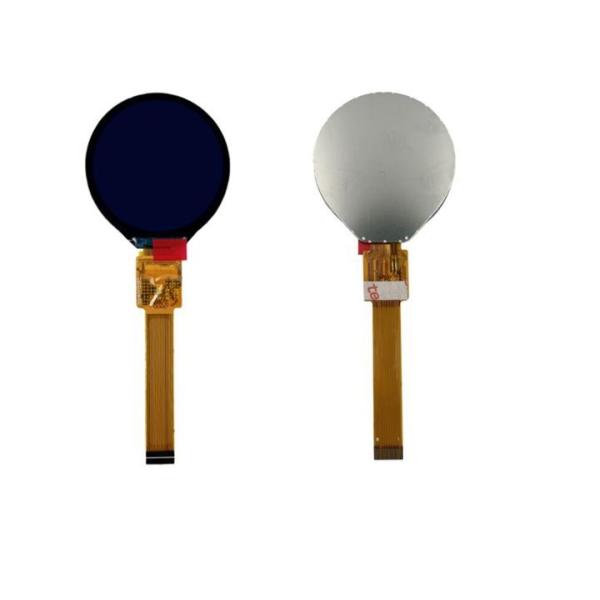

The Z016WQ01 is a circular module with a 1.6-inch IPS TFT LCD display. Manufactured by AISON, this module showcases a 400x400 RGB pixel resolution on a black backdrop, offering an attractive visual encounter. It offers clear visibility under various lighting conditions. Equipped with the ST77903 driver IC and supporting the QSPI interface, this module ensures dependable performance.

The Z016WQ01 is compatible with a variety of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This broad compatibility makes it suitable for a wide array of applications, such as embedded systems, industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, and handheld devices.

The module's Flexible Printed Circuit (FPC) is designed with zif connector, allowing for effortless and direct connection to the zif connector on your PCB. This simplifies the integration process and ensures a secure and reliable connection.

AISON Technology offers customization options to meet specific requirements. We provide tailored solutions,
including customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility allows customers to receive an optimized display solution that perfectly matches their unique needs and preferences. Additionally, AISON can provide customized demo kits upon customer request.

General Data
Model Name 1.6 inch circular tft display
Resolution 400x400
Model Size (W*H*T)
42.92*45.87*2.2mm
Display Area (W*H) 39.840*39.840mm
Interface QSPI
Display Mode Normally Black,Transmissive
Viewing Angle 85/85/85/85
Brightness 230 cd/m2
LCD Pin number 16 pin
Driver IC
 ST77903
Operating temperatures -20 to 70 ℃
Storage temperatures -30 to 80 ℃

Drawing
1.6 Inch 400x400 Customized Circle TFT Display 230 cd/m2 ST77903 QSPI Interface
Product Details
1.6 Inch 400x400 Customized Circle TFT Display 230 cd/m2 ST77903 QSPI Interface1.6 Inch 400x400 Customized Circle TFT Display 230 cd/m2 ST77903 QSPI Interface1.6 Inch 400x400 Customized Circle TFT Display 230 cd/m2 ST77903 QSPI Interface
1.6 Inch 400x400 Customized Circle TFT Display 230 cd/m2 ST77903 QSPI Interface
TFT Applications

This 1.6 inch round lcd module is perfect for use in smart home systems, wearables, and medical devices.
