This high-performance module is designed to meet the demands of modern applications with its robust features and reliable performance.

Key Features:
- Display Size: Experience a spacious 7.0" display that commands attention and provides ample viewing real estate.
- Resolution: With a resolution of 280 (horizontal) x 1424 (vertical), this BAR LCD Display delivers sharp images and text.
- Interface: MIPI interface ensures high-speed data transfer and seamless integration with modern devices.
- Color Depth: A color depth of 16.7M ensures a vibrant and lifelike display.
- Technology: Advanced a-Si technology with a pixel pitch of 0.12x0.12mm for crisp and clear visuals.
- Pixel Configuration: R.G.B. Vertical Stripe configuration for accurate color reproduction.
- Display Mode: Normally Black display mode for excellent contrast and readability.
- Mechanical Design: The module dimensions are 38.20*181.47*3.5 mm, with an active area of 33.6 x 170.88 mm, making it compact yet powerful.
- LED Backlight: Equipped with 8 LEDs for uniform brightness across the display.

Electrical Characteristics:
- Power Voltage: Operates on a voltage range of 3 to 3.6V, with a typical digital operation current of 8.6 mA.
- Gate On/Off Power: VGH of 15V and VGL of -10.0V ensure stable operation.
- Vcom: TBD, ensuring optimal display performance.

Optical Performance:
- Viewing Angles: Enjoy a wide viewing angle of up to 80 degrees, both horizontally and vertically.
- Contrast Ratio: A high contrast ratio of 800-1000:1 for deep blacks and bright whites.
- Response Time: Fast response times of 30-40ms at 25°C for smooth motion display.
- Color Gamut: Covers 60% of the NTSC color space, providing a broad spectrum of colors.
- Luminance: A brightness of 250-300 nits for visibility in various lighting conditions.

Reliability and Durability:
The Z070FH01 undergoes stringent environmental and reliability tests, including high and low-temperature operations, thermal shock, and electrostatic discharge tests, ensuring its longevity and dependability.

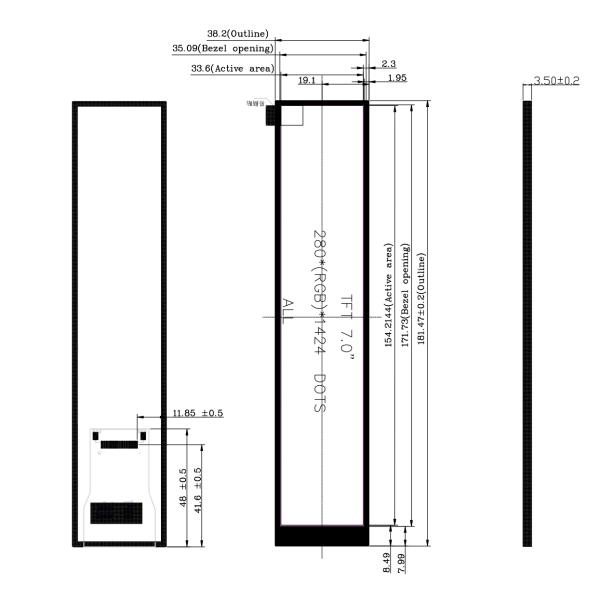

Mechanical Drawings and Packaging
Detailed mechanical drawings are provided for precise installation, and our packaging methods are designed to protect the module during transit.

Usage Precautions:
- Handle with care to avoid mechanical shock and damage.
- Store in conditions avoiding direct sunlight and harmful gases.
- Ensure proper grounding to prevent static damage during handling and assembly.

Brightness, PIN defination, Coverglass,Touch Panel, Driver board, etc can be also customized.
