2.8 inch Circular TFT Display 480x480 RGB 40 Pin for Smart Home
2.8 inch Circular TFT Display 480x480 RGB 40 Pin for Smart Home
2.8 inch Circular TFT Display 480x480 RGB 40 Pin for Smart Home
2.8 inch Circular TFT Display 480x480 RGB 40 Pin for Smart Home
2.8 inch Circular TFT Display 480x480 RGB 40 Pin for Smart Home
2.8 inch Circular TFT Display 480x480 RGB 40 Pin for Smart Home
2.8 inch Circular TFT Display 480x480 RGB 40 Pin for Smart Home
2.8 inch Circular TFT Display 480x480 RGB 40 Pin for Smart Home
Specifications
Brand Name :
AISON
Model Number :
Z028-40RB-A1
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package
Name :
2.8 inch Circular TFT Display
Resolution :
480x480
Outline dimension :
73.03x76.48x2.3 mm
Active area :
70.128x70.128 mm
Interface :
RGB
Viewing angle :
85/85/85/85
Brightness :
300 cd/m2
Display mode :
TFT, Normally Black, Transmissive
Operating temperatures :
-20 to 70 degree
Storage temperatures :
-30 to 80 degree
Description

2.8 inch Circular TFT Display 480x480 RGB 40 Pin for Smart Home

General Description
  • High Resolution Display: This 2.8 inch round tft display boasts a high-resolution 480x480 display, ensuring crisp and clear visuals for any application.
  • Compact Design: With a size of 2.76 inches, this LCD module is perfect for compact devices and applications where space is limited, as requested by a customer looking for a small display solution.
  • Wide Viewing Angle: The display offers a wide viewing angle, allowing users to view the screen from any direction without compromising image quality.
  • Durable and Versatile: With operating and storage temperatures ranging from -20 to 70°C and -30 to 80°C respectively, this LCD module can withstand various environmental conditions, making it suitable for various applications.
  • Customizable: As an OEM supplier, we can provide customized solutions for customers, tailoring the display to meet specific requirements and needs, as requested by a customer seeking a bespoke display solution.

General Data
Model Name 2.8 inch circular lcd module
Resolution 480X480
Model Size (W*H*T)
73.03x76.48x2.3 mm
Display Area (W*H) 70.128x70.128 mm
Interface RGB
Display Mode Normally Black,Transmissive
Viewing Angle 85/85/85/85
Brightness 300 cd/m2
LCD Pin number 40 pin
Driver IC
 ST7701
Operating temperatures -20 to 70 ℃
Storage temperatures -30 to 80 ℃

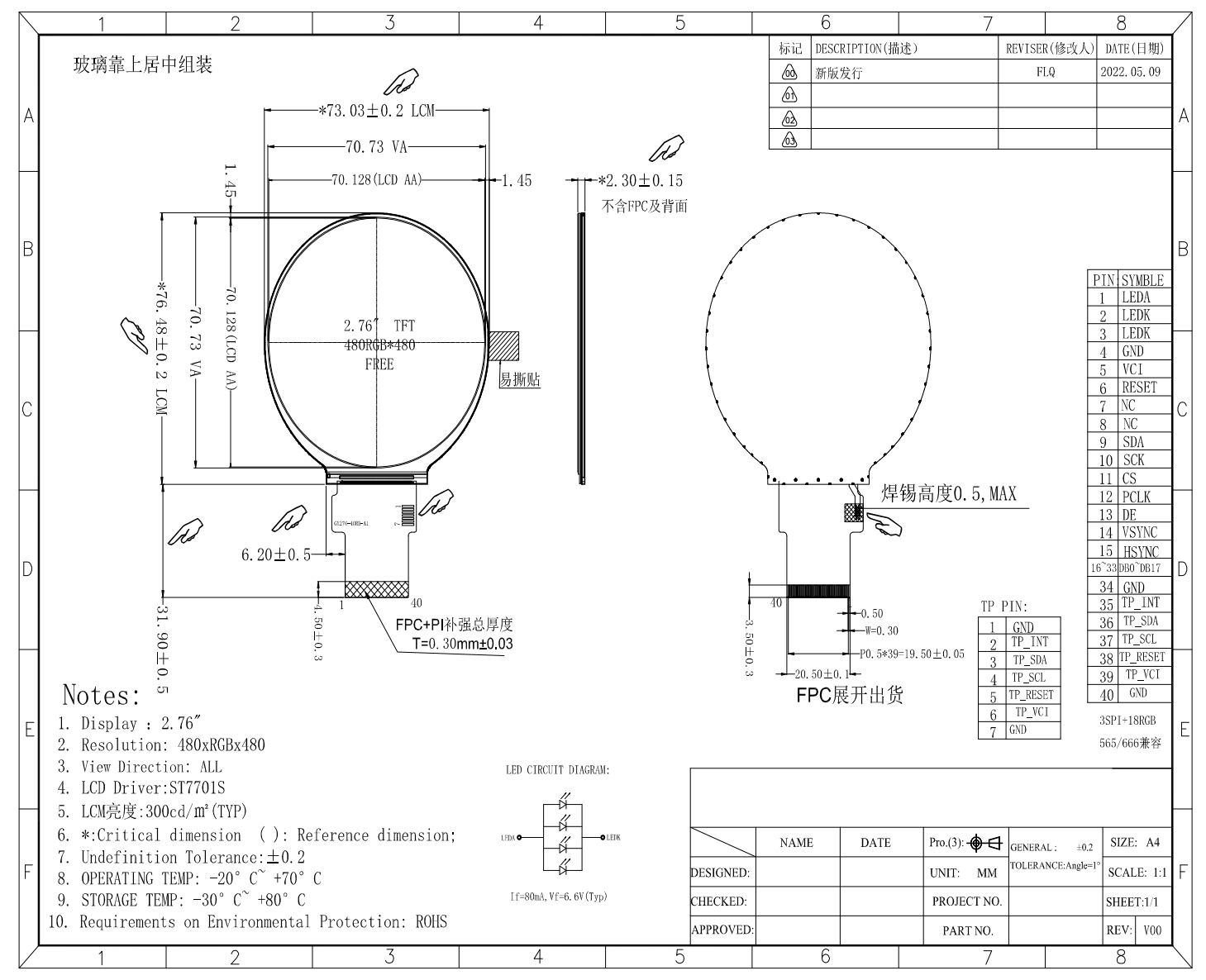

Drawing
2.8 inch Circular TFT Display 480x480 RGB 40 Pin for Smart Home
Product Details
2.8 inch Circular TFT Display 480x480 RGB 40 Pin for Smart Home2.8 inch Circular TFT Display 480x480 RGB 40 Pin for Smart Home
TFT Applications

This 2.8 inch round lcd module is perfect for user-friendly applications in smart home devices, instruments, systems, wearables,

medical devices and consumer electronics.
