High Pressure Micro Air Pump 6V/12V/24V DC Diaphragm
High Pressure Micro Air Pump 6V/12V/24V DC Diaphragm
High Pressure Micro Air Pump 6V/12V/24V DC Diaphragm
High Pressure Micro Air Pump 6V/12V/24V DC Diaphragm
High Pressure Micro Air Pump 6V/12V/24V DC Diaphragm
High Pressure Micro Air Pump 6V/12V/24V DC Diaphragm
Specifications
Brand Name :
AJK
Model Number :
AJK-B2706
Certification :
RoHS
Place of Origin :
Xiamen China
MOQ :
1PCS
Price :
USD 2-4USD/PCS
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
500000PCS/MONTH
Packaging Details :
300PCS/CARTON (395*315*360MM)
Structure :
Diaphragm
Application :
Medical device; health care equipment; household appliance
Description

High Pressure Micro Air Pump

A Miniature Air Pump with stable performance and good dry running characteristics. It is compact, lightweight and customizable.

  • Item No.:

    AJK-B2706 (6-24V)

  • Free Flow:

    2.5 L/min

  • Max Pressure:

    110 kPa

  • DC Voltage:

    6/12/24 V

  • Applications:

    Medical equipment, healthcare equipment, household appliances
Product Details:

AJK DC 6V 12V 24V Micro Diaphragm Pump for Air/Gas B2706 is a compact 27 mm wide pump that delivers up to 2.5 L/min of flow. Customization is available on your specific needs and life expectations.

Features:

1.High pressure, stable performance, high efficiency and long life.

2.Our micro gas pumps are designed with low vibration, low noise and low power consumption.

3.100% oil free small air pumps that maintain the purity of your system and are commonly used in FDA-approved systems.

4.ISO9001, CB, FDA, PAHs, REACH, RoHS compliant.

Typical Applications:

Blood pressure monitor

Coffee maker

Bubble machine

Massage chair

Intelligent toilet

...

Model Rated Voltage Rated Current Free Flow Max Pressure Noise Media
AJK-B2706 DC 6.0 V < 500 mA 2.5 L/min 110 kPa < 60 dB Air/Gas
DC 12.0 V < 300 mA 2.5 L/min 110 kPa < 60 dB Air/Gas
DC 24.0 V < 200 mA 2.5 L/min 110 kPa < 60 dB Air/Gas

Dimension Drawing:

High Pressure Micro Air Pump 6V/12V/24V DC Diaphragm

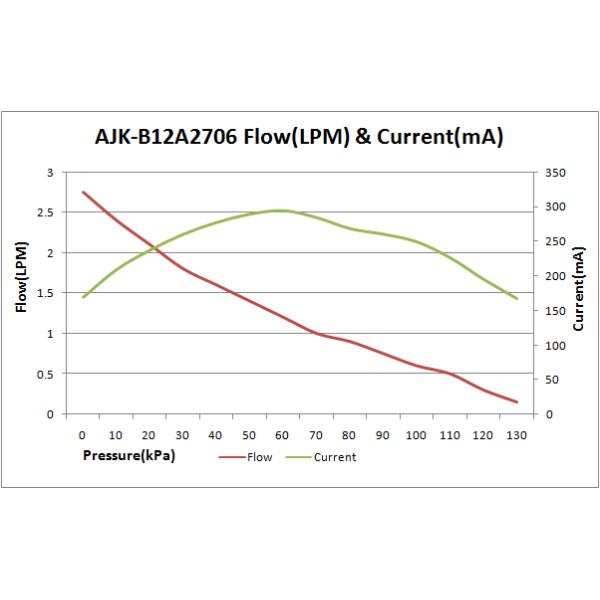

Curve:

High Pressure Micro Air Pump 6V/12V/24V DC Diaphragm
