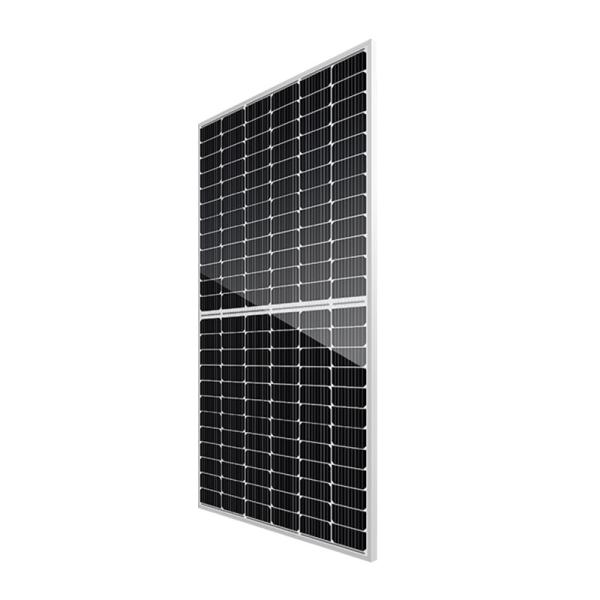

550 Watt Sunport Solar Panel 535w 540w 545w 550w 555w Eff. 21.5% Solar Pv Panels
550 Watt Sunport Solar Panel 535w 540w 545w 550w 555w Eff. 21.5% Solar Pv Panels
550 Watt Sunport Solar Panel 535w 540w 545w 550w 555w Eff. 21.5% Solar Pv Panels
550 Watt Sunport Solar Panel 535w 540w 545w 550w 555w Eff. 21.5% Solar Pv Panels
550 Watt Sunport Solar Panel 535w 540w 545w 550w 555w Eff. 21.5% Solar Pv Panels
550 Watt Sunport Solar Panel 535w 540w 545w 550w 555w Eff. 21.5% Solar Pv Panels
550 Watt Sunport Solar Panel 535w 540w 545w 550w 555w Eff. 21.5% Solar Pv Panels
550 Watt Sunport Solar Panel 535w 540w 545w 550w 555w Eff. 21.5% Solar Pv Panels
550 Watt Sunport Solar Panel 535w 540w 545w 550w 555w Eff. 21.5% Solar Pv Panels
550 Watt Sunport Solar Panel 535w 540w 545w 550w 555w Eff. 21.5% Solar Pv Panels
Specifications
Brand Name :
Sunport
Model Number :
AH7H
Certification :
CGC，ISO9001:2015，TUV SUD，PV，CNAS，
Place of Origin :
Jiangsu, China
MOQ :
30pcs
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200000 Watt/Watts per Week
Delivery Time :
To be negotiated
Packaging Details :
pallet
Product name :
MWT Full Black Solar Panles
Cell size :
144(24x6) / 10BB Mono / Half-cell
Panel Efficiency :
21.7%
Installation Module Dimension :
2278mm*1133mm*35mm
Type :
PERC, Half Cell
Description

Sunport Power SSD AH7H / 10BB 535W-560W Monocrystalline High-Efficiency Bifacial Solar Module Classic Solar Panel

The introduction of Sunport Solar Panels has dramatically changed the solar energy industry with their advanced and highly efficient solar panels. These innovative panels capture the power of sunlight and transform it into clean, renewable electricity that can be used for various applications. Sunport's focus on delivering eco-friendly and cost-effective solutions has established them as a leader in the solar energy field. Their pioneering solar panel technology combines high efficiency with an attractive design, making it a popular choice for both residential and commercial installations.

Specification

Power Class
530
535
540
550
Module Efficiency(%)
20.5
20.7
20.9
21.1
Tolerance(W)
0~+5
0~+5
0~+5
0~+5
Test Environment
STC
NOTC
STC
NOTC
STC
NOTC
STC
NOTC
Maximum Power Pmax(W)
530
395
535
398
540
400
545
405
Open Circuit Voltage Voc(V)
49
46.3
49.2
46.4
49.3
46.6
49.5
46.7
Short Circuit Current Isa(A)
13.8
11.14
13.88
11.21
13.97
11.28
14.05
11.35
Maximum Power Voltage Vm(V)
40.5
37.6
40.6
37.8
40.7
37.9
40.9
38
Maximum Power Current Im(A)
13.09
10.5
13.18
10.53
13.27
10.55
13.33
10.66
Cell Type (mm)
182*91(10BB Mono-Crystaline Silicon)
Cell Orientation (Pcs)
144(6*24)
Maximum System Voltage (V)
DC1500
Temp.Coeff.of Voc (%/℃)
-0.285
Temp.Coeff.of Isc (%/℃)
0.055
Temp.Coeff.of Pm (%/℃)
-0.365
Operating Temperature (℃)
-40 to 85
Nominal Operating Cell Temperature(NOCT) (℃)
45 ±2
Max.Series Fuse (A)
20
Pressure Bearing (Pa)
5400
Wind Bearing (Pa)
2400
STC: Irradiance 1000W/m2, Cell temperature 25 ℃, AM1.5NOCT: Irradiance 800W/m2, Ambient temperature 20 ℃, Wind
speed 1m/s
MATERIAL DETAILS
Frame
Anodized aluminum
Glass
3.2mm low-iron tempered suede
glass
Cell
6*20pcs 182*91mm mono solar cellmm mono solar cell
Junction Box
IP≥68, 3 diodes
Diode quantity
3
Cable&Connector
4mm², EVO2 or EVO2 compatible
Cable length
300mm or as customer’s requirements
PACKING DETAILS
Dimension
2278*1133*35mm
Weight
28kg

550 Watt Sunport Solar Panel 535w 540w 545w 550w 555w Eff. 21.5% Solar Pv Panels

550 Watt Sunport Solar Panel 535w 540w 545w 550w 555w Eff. 21.5% Solar Pv Panels550 Watt Sunport Solar Panel 535w 540w 545w 550w 555w Eff. 21.5% Solar Pv Panels

TECHNOLOGY COMPARISON
Compared with conventional module, MWT modules reduce 3% shaded area with no busbars. MWT module technology replaces string ribbon by conductive back sheet, abandoning strain, micro-crack and results power degradation, greatly improving stability and reliability.
— Structural Feature —
MWT
Positive and negative electrodes are both on the rear side of solar cell
Conventional
Positive and negative electrodes are located on opposite sides of the cell
— Cell Structure —
MWT
Busbar-free design exhibits higher power output by decreasing shading area up to 3 %
Conventional
Conventional design covers more cell surface from the main busbars, therefore the power output is limited
— Module Encapsulation —
Replace conventional soldering with conductive foil and 2D encapsulation structure
Conventional Cells connected by string ribbons

550 Watt Sunport Solar Panel 535w 540w 545w 550w 555w Eff. 21.5% Solar Pv Panels

550 Watt Sunport Solar Panel 535w 540w 545w 550w 555w Eff. 21.5% Solar Pv Panels550 Watt Sunport Solar Panel 535w 540w 545w 550w 555w Eff. 21.5% Solar Pv Panels

FAQ
Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
