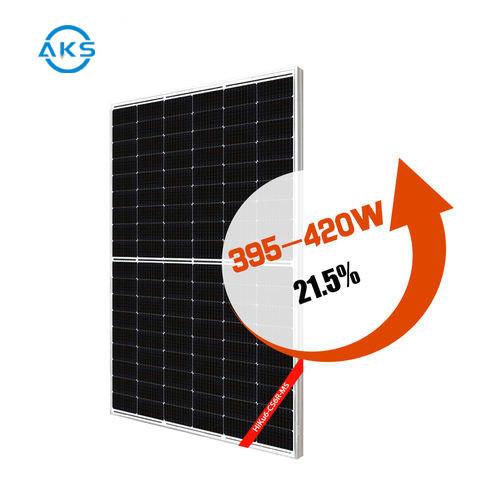

395W 400W Panel Canadian Solar 415W 420W High Efficiency Canadian Solar Bifacial
395W 400W Panel Canadian Solar 415W 420W High Efficiency Canadian Solar Bifacial
Specifications
Model Number :
HiKu6 (All-Black)-CS6R-MS
Place of Origin :
Jiangsu, China
MOQ :
30pcs
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200000 Watt/Watts per Week
Delivery Time :
To be negotiated
Packaging Details :
pallet
Brand Name :
HiKu6-CS6R-MS
Certification :
CGC，ISO9001:2015，TUV SUD，PV，CNAS，
Cell size :
182mmx182mm
Panel Dimensions :
1722x1134x30 mm
Frame :
Anodized Aluminum Alloy
Front Cover :
3.2 mm tempered glass with anti-reflective coating
Cell Type :
Mono-crystalline
Certificate :
TUV CGC CE
Panel Efficiency :
21.50%
Description

Canadian 395W 400W 405W 410W 415W 420W High Efficiency Bifacial Solar Panel Hjt Solar Cell PV Panels Mono Perc Panel

A monocrystalline solar panel is a solar panel comprising monocrystalline solar cells. The panel derives its name from a cylindrical silicon ingot grown from single-crystal silicon of high purity in the same way as a semiconductor. As the cell is constituted of a single crystal, it provides the electrons more space to move for a better electricity flow. The cylindrical ingot is sliced into wafers forming cells. To maximize the utility of the cells, the circular wafers are wire cut to an octagonal-shaped wafer. These cells have a unique look because of their octagonal shape. They also have a uniform color.

High Power Dual Cell PERC Module

· 210 mm wafer + 132 / 120 dual cell + PERC technology
· Module power up to 670 W
· 0.4% more energy yield in module lifetime


Lower BOS cost & LCOE cost

· Reduce 5.7% BOS cost
· 3.5% lower LCOE
· Compatible with mainstream inverters


Enhanced reliability

· Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
· Excellent hot spot performance
· Better shading tolerance

Model No. CS6R-395MS CS6R-400MS CS6R-405MS CS6R-410MS CS6R-415MS CS6R-420MS
Warranty
Product Warranty 25 Years
Power Warranty 25 Years of 84.8% Output Power
Electrical Data at STC
Maximum Power (Pmax) 395 Wp 400 Wp 405 Wp 410 Wp 415 Wp 420 Wp
Voltage at Maximum Power (Vmpp) 30.6 V 30.8 V 31 V 31.2 V 31.4 V 31.6 V
Current at Maximum Power (Impp) 12.91 A 12.99 A 13.07 A 13.15 A 13.23 A 13.31 A
Open Circuit Voltage (Voc) 36.6 V 36.8 V 37 V 37.02 V 37.4 V 37.6 V
Short Circuit Current (Isc) 13.77 A 13.85 A 13.93 A 14.01 A 14.09 A 14.17 A
Panel Efficiency 20.20% 20.50% 20.70% 21% 21.30% 21.50%
Power Tolerance (Positive) 2.50% 2.50% 2.50% 2.50% 2.50% 2.50%
Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax) 296 Wp 300 Wp 304 Wp 307 Wp 311 Wp 315 Wp
Voltage at Maximum Power (Vmpp) 28.7 V 28.9 V 29.1 V 29.2 V 29.4 V 29.6 V
Current at Maximum Power (Impp) 10.33 A 10.39 A 10.45 A 10.52 A 10.58 A 10.65 A
Open Circuit Voltage (Voc) 34.6 V 34.8 V 35 V 35.1 V 35.3 V 35.5 V
Short Circuit Current (Isc) 11.09 A 11.15 A 11.21 A 11.28 A 11.34 A 11.41 A
Temperature 41±3 °C
Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range 40~85 °C
Temperature Coefficient of Pmax 0.34 %/°C
Temperature Coefficient of Voc 0.26 %/°C
Temperature Coefficient of Isc 0.05 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 25 A
Material Data
Panel Dimension (H/W/D) 1722x1134x30 mm
Weight 21.3 kg
Cell Type PERC
Cell Number 108
Glass Type Anti-reflection Coating, Tempered
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium Alloy
Junction Box Diodes 3
Junction Box Protection Class IP 68
Connector Type MC4
Cable Crossection 4 mm2
Cable Length 410 mm

395W 400W Panel Canadian Solar 415W 420W High Efficiency Canadian Solar Bifacial395W 400W Panel Canadian Solar 415W 420W High Efficiency Canadian Solar Bifacial

395W 400W Panel Canadian Solar 415W 420W High Efficiency Canadian Solar Bifacial

395W 400W Panel Canadian Solar 415W 420W High Efficiency Canadian Solar Bifacial

395W 400W Panel Canadian Solar 415W 420W High Efficiency Canadian Solar Bifacial395W 400W Panel Canadian Solar 415W 420W High Efficiency Canadian Solar Bifacial

FAQ
Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
