420W 425W Solar Panels Canadian 430W 435W Full Black Solar Module High Performance
420W 425W Solar Panels Canadian 430W 435W Full Black Solar Module High Performance
Specifications
Model Number :
TOPHiKu6-TOPCon(420W-435W)
Place of Origin :
Jiangsu, China
MOQ :
30pcs
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200000 Watt/Watts per Week
Delivery Time :
To be negotiated
Packaging Details :
pallet
Brand Name :
TOPHiKu6-TOPCon(420W-435W)
Certification :
CGC，ISO9001:2015，TUV SUD，PV，CNAS，
Cell size :
182*182mm
Panel Dimensions :
1722x1134x30 mm
Function :
Power Support
Solar cell :
108 CELLS
Application :
Solar Power System
Panel Efficiency :
22.30%
Description

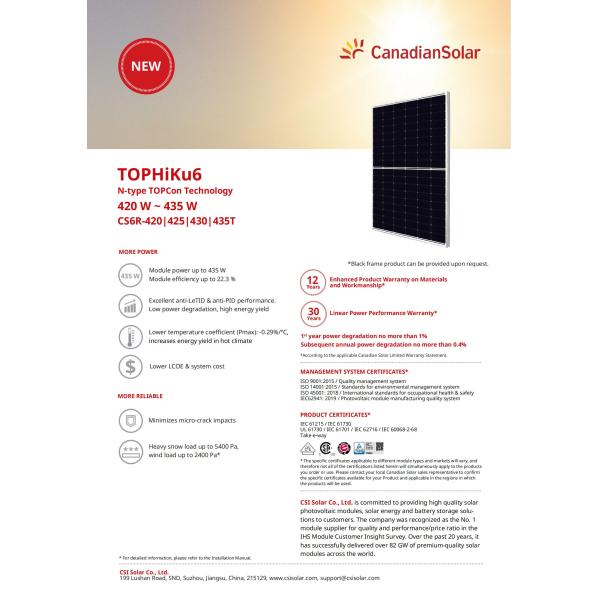

Canadian 420W 425W 430W 435W Full Black Module High Performance Full Black Solar Panel

The growing demand for clean and renewable energy sources has led to increased government support and incentives for homeowners and businesses who choose to invest in solar energy systems like monocrystalline solar panels. These incentives can include tax credits, rebates, and feed-in tariffs that help offset the initial costs associated with installing a solar energy system.

Bifacial module up to 695W

· 210 mm wafer 132/120 dual cell N-type TOPCon technology
· Front side power up to 695W
· Up to 85% power bifaciality, more power from the back side


Higher energy yield, lower LCOE

· Low temperature coefficient (Pmax): -0.29%/℃, more energy in hot climate
· 2% higher energy generation than PERC
· About 2.3% lower LCOE than PERC


Enhanced reliability

· Minimize cell micro-crack impacts to module
· Snow loads up to 5,400Pa, wind loads up to 2,400Pa

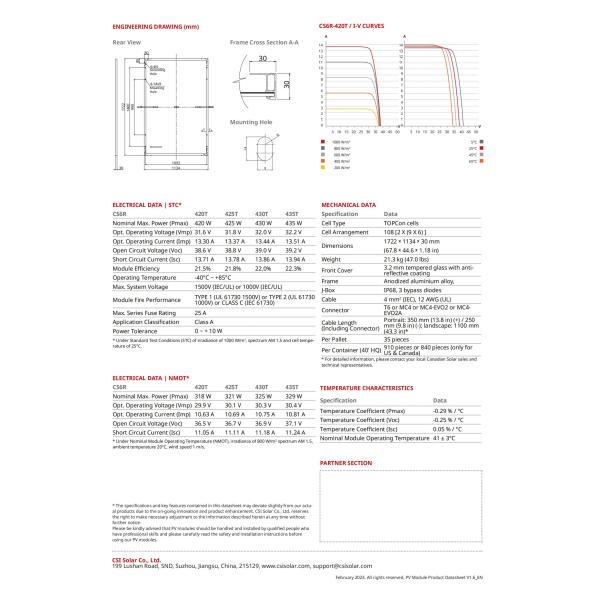

ELECTRICAL DATA | STC*
CS6R 		420T 425T 430T 435T
Nominal Max. Power (Pmax) 420 W 425 W 430 W 435 W
Opt. Operating Voltage (Vmp) 31.6 V 31.8 V 32.0 V 32.2 V
Opt. Operating Current (Imp) 13.30 A 13.37 A 13.44 A 13.51 A
Open Circuit Voltage (Voc) 38.6 V 38.8 V 39.0 V 39.2 V
Short Circuit Current (Isc) 13.71 A 13.78 A 13.86 A 13.94 A
Module Efficiency 21.5% 21.8% 22.0% 22.3%
Operating Temperature -40°C ~ +85°C
Max. System Voltage 1500V (IEC/UL) or 1000V (IEC/UL)
Module Fire Performance TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730
1000V) or CLASS C (IEC 61730)
Max. Series Fuse Rating 25 A
Application Classification Class A
Power Tolerance 0 ~ + 10 W

MECHANICAL DATA

Specification Data
Cell Type TOPCon cells
Cell Arrangement 108 [2 X (9 X 6) ]
Dimensions 1722 ˣ 1134 ˣ 30 mm
(67.8 ˣ 44.6 ˣ 1.18 in)
Weight 21.3 kg (47 0 lbs)
Front Cover 3.2 mm tempered glass with anti-
reflective coating
Frame Anodized aluminium alloy,
J-Box IP68, 3 bypass diodes
Cable 4 mm2 (IEC), 12 AWG (UL)
Connector T6 or MC4 or MC4-EVO2 or MC4-
EVO2A
Cable Length
(Including Connector)		 Portrait: 350 mm (13.8 in) (+) / 250
mm (9.8 in) (-); landscape: 1100 mm
(43 3 in)*
Per Pallet 35 pieces
Per Container (40' HQ) 910 pieces or 840 pieces (only for
US & Canada)

ELECTRICAL DATA | NMOT*
CS6R 420T 425T 430T 435T
Nominal Max. Power (Pmax)

318 W

 321 W 325 W 329 W
Opt. Operating Voltage (Vmp) 29.9 V 30.1 V 30.3 V 30.4 V
Opt. Operating Current (Imp) 10.63 A 10.69 A 10.75 A 10.81 A
Open Circuit Voltage (Voc) 36.5 V 36.7 V 36.9 V 37.1 V
Short Circuit Current (Isc) 11.05 A 11.11 A 11.18 A 11.24 A
* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5,
ambient temperature 20°C, wind speed 1 m/s.

TEMPERATURE CHARACTERISTICS

Specification		 Data
Temperature Coefficient (Pmax) -0.29 % / °C
Temperature Coefficient (Voc) -0.25 % / °C
Temperature Coefficient (Isc) 0.05 % / °C
Nominal Module Operating Temperature 41 ± 3°C

420W 425W Solar Panels Canadian 430W 435W Full Black Solar Module High Performance420W 425W Solar Panels Canadian 430W 435W Full Black Solar Module High Performance

420W 425W Solar Panels Canadian 430W 435W Full Black Solar Module High Performance

420W 425W Solar Panels Canadian 430W 435W Full Black Solar Module High Performance

420W 425W Solar Panels Canadian 430W 435W Full Black Solar Module High Performance420W 425W Solar Panels Canadian 430W 435W Full Black Solar Module High Performance

FAQ
Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
