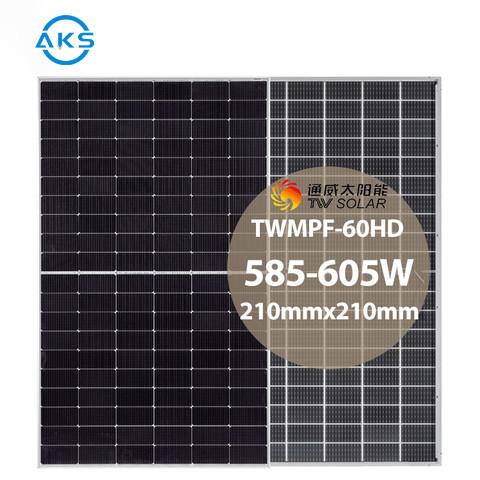

600W TW Solar Panels High Power Bifacial Solar Modules 595W 605W 585W 590W
600W TW Solar Panels High Power Bifacial Solar Modules 595W 605W 585W 590W
Specifications
Brand Name :
AKS
Model Number :
TWMPF-60HD
Place of Origin :
Jiangsu, China
MOQ :
30pcs
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200000 Watt/Watts per Week
Delivery Time :
To be negotiated
Packaging Details :
pallet
Certification :
CGC，ISO9001:2015，TUV SUD，PV，CNAS，
Type :
PERC, Half Cell, Bifacial, Double-glass
Cell size :
210mmx210mm
Panel Dimensions :
2172X1303X35mm
Cells :
Monocrystalline silicon cell
Panel Efficiency :
21.40%
Description

Tongwei Solar 600W High Power PV Modules 595 WATTS Bifacial 605W Solar Panels 585WP P Type Panneau Solaires 590W

The high efficiency of monocrystalline solar panels can also result in reduced installation costs for those who choose this type of renewable energy source. Because fewer panels are needed to generate the same amount of power as other types of solar panels, the overall installation costs can be lower. This can make monocrystalline solar panels an attractive option for those who want to minimize the upfront costs associated with transitioning to solar energy.

Model No. TWMPF-60HD585 TWMPF-60HD590 TWMPF-60HD595 TWMPF-60HD600 TWMPF-60HD605
Warranty
Product Warranty 12 Years
Power Warranty 30 Years of 84.95% Output Power
Electrical Data at STC
Maximum Power (Pmax) 585 Wp 590 Wp 595 Wp 600 Wp 605 Wp
Voltage at Maximum Power (Vmpp) 33.95 V 34.15 V 34.35 V 34.55 V 34.75 V
Current at Maximum Power (Impp) 17.23 A 17.28 A 17.32 A 17.37 A 17.41 A
Open Circuit Voltage (Voc) 41.04 V 41.24 V 41.44 V 41.64 V 41.84 V
Short Circuit Current (Isc) 18.3 A 18.36 A 18.41 A 18.46 A 18.52 A
Panel Efficiency 20.70% 20.80% 21% 21.20% 21.40%
Power Tolerance (Positive) 1% 1% 1% 1% 1%
Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax) 442.6 Wp 446.4 Wp 450.2 Wp 454 Wp 457.7 Wp
Voltage at Maximum Power (Vmpp) 31.67 V 31.86 V 32.05 V 32.23 V 32.42 V
Current at Maximum Power (Impp) 13.97 A 14.01 A 14.05 A 14.09 A 14.12 A
Open Circuit Voltage (Voc) 38.66 V 38.84 V 39.03 V 39.22 V 39.41 V
Short Circuit Current (Isc) 14.76 A 14.8 A 14.84 A 14.88 A 14.93 A
Temperature 45±2 °C
Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range 40~85 °C
Temperature Coefficient of Pmax 0.34 %/°C
Temperature Coefficient of Voc 0.28 %/°C
Temperature Coefficient of Isc 0.05 %/°C
Maximum Ratings
Maximum System Voltage 150 V
Series Fuse Rating 35 A
Material Data
Panel Dimension (H/W/D) 2172x1303x35 mm
Weight 34.8 kg
Cell Type Bifacial
Cell Number 120
Glass Type Tempered
Glass Thickness 2 mm
Frame Type Anodized Aluminium Alloy
Junction Box Diodes 3
Junction Box Protection Class IP 68
Cable Crossection 4 mm2

600W TW Solar Panels High Power Bifacial Solar Modules 595W 605W 585W 590W

600W TW Solar Panels High Power Bifacial Solar Modules 595W 605W 585W 590W

600W TW Solar Panels High Power Bifacial Solar Modules 595W 605W 585W 590W

600W TW Solar Panels High Power Bifacial Solar Modules 595W 605W 585W 590W600W TW Solar Panels High Power Bifacial Solar Modules 595W 605W 585W 590W

FAQ
Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
