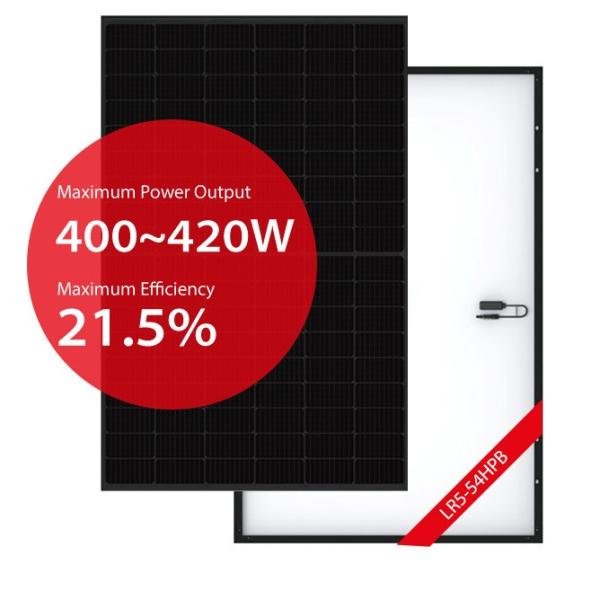

108 Half Cell Longi Solar Panel Mono Black Solar Panels 400W 405W 410W 415W 420W
108 Half Cell Longi Solar Panel Mono Black Solar Panels 400W 405W 410W 415W 420W
Specifications
Model Number :
LR5-54HPB
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200000 Watt/Watts per Week
Delivery Time :
To be negotiated
Packaging Details :
pallet
Brand Name :
Longi
Certification :
CGC，ISO9001:2015，TUV SUD，PV，CNAS，
Material :
Monocrystalline Silicon
Panel Dimensions :
1722X1134X30mm
Cell size :
182*182mm
Type :
PERC, Half Cell, All Black
Panel Efficiency :
21.5%
Certificate :
CE TUV IEC, TUV CE IEC
Description

Longi Solar Panel Full Black Mono 108 Half Cell Original 400W 405W 410W 415W 420W Solar Panels Pv Modules

➤ Suitable for distributed projects
➤ Advanced module technology delivers superior moducle efficiency
➤ Excellent outdoor power generation performance high module quality ensures long-term reliability
➤ Based on M10 wafer, best choice forultra-large power plants
➤ Advanced module technology delivers superiormodule efficiency
➤ Excellent outdoor power generation performance

➤ High module quality ensures long-term reliability

➤ 12 year Warranty for Materials and processing

Model No. LR5-54HPB-400M LR5-54HPB-405M LR5-54HPB-410M LR5-54HPB-415M LR5-54HPB-420M
Warranty
Product Warranty 12 Years
Power Warranty 15 Years of 90.3% Output Power, 25 Years of 84.8% Output Power
Electrical Data at STC
Maximum Power (Pmax) 400 Wp 405 Wp 410 Wp 415 Wp 420 Wp
Voltage at Maximum Power (Vmpp) 30.94 V 31.18 V 31.42 V 31.66 V 31.9 V
Current at Maximum Power (Impp) 12.93 A 12.99 A 13.05 A 13.11 A 13.17 A
Open Circuit Voltage (Voc) 36.9 V 37.15 V 37.4 V 37.65 V 37.89 V
Short Circuit Current (Isc) 13.72 A 13.78 A 13.84 A 13.91 A 13.97 A
Panel Efficiency 20.50% 20.70% 21% 21.30% 21.50%
Power Tolerance (Positive) 3% 3% 3% 3% 3%
Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax) 299 Wp 302.7 Wp 306.5 Wp 310.2 Wp 313.9 Wp
Voltage at Maximum Power (Vmpp) 28.74 V 28.96 V 29.19 V 29.41 V 29.63 V
Current at Maximum Power (Impp) 10.4 A 10.45 A 10.5 A 10.5 A 10.59 A
Open Circuit Voltage (Voc) 34.7 V 34.93 V 35.17 V 35.4 V 35.63 V
Short Circuit Current (Isc) 11.09 A 11.14 A 11.19 A 11.24 A 11.3 A
Temperature 45±2 °C
Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range 40~85 °C
Temperature Coefficient of Pmax 0.34 %/°C
Temperature Coefficient of Voc 0.265 %/°C
Temperature Coefficient of Isc 0.05 %/°C
Maximum Ratings
Maximum System Voltage 1000 V
Series Fuse Rating 25 A
Material Data
Panel Dimension (H/W/D) 1722x1134x30 mm
Weight 20.8 kg
Cell Type Monocrystalline
Cell Size 182x182 mm
Cell Number 108
Glass Type Tempered
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium Alloy
Junction Box Diodes 3
Junction Box Protection Class IP 68
Cable Crossection 4 mm2
Cable Length 1200 mm

108 Half Cell Longi Solar Panel Mono Black Solar Panels 400W 405W 410W 415W 420W108 Half Cell Longi Solar Panel Mono Black Solar Panels 400W 405W 410W 415W 420W

108 Half Cell Longi Solar Panel Mono Black Solar Panels 400W 405W 410W 415W 420W

108 Half Cell Longi Solar Panel Mono Black Solar Panels 400W 405W 410W 415W 420W

108 Half Cell Longi Solar Panel Mono Black Solar Panels 400W 405W 410W 415W 420W108 Half Cell Longi Solar Panel Mono Black Solar Panels 400W 405W 410W 415W 420W

FAQ
Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
