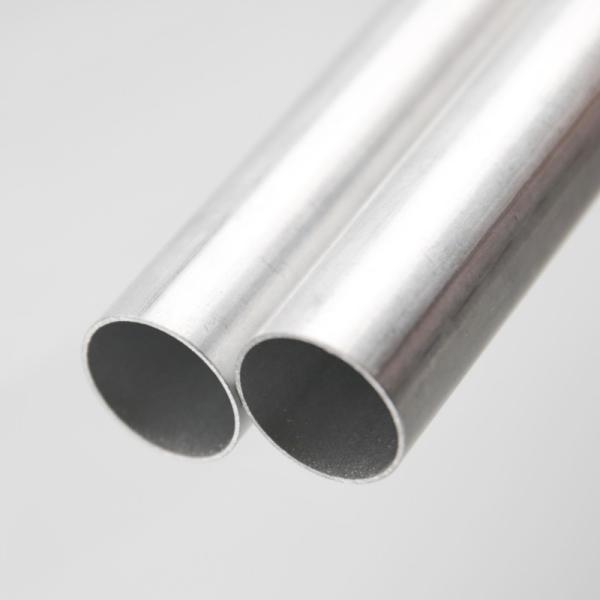

Corrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D25mm WT2.54mm
Corrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D25mm WT2.54mm
Corrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D25mm WT2.54mm
Corrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D25mm WT2.54mm
Corrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D25mm WT2.54mm
Corrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D25mm WT2.54mm
Specifications
Brand Name :
Yun Neng
Model Number :
1050A
Certification :
ISO9001 ISO14001 ISO45001
Place of Origin :
Changzhou China
MOQ :
3 tons
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
50,000 mt per year
Delivery Time :
30 working days after received your down payment
Packaging Details :
Standard export packaging
Product Name :
Power Plant Air Cooling Tube
Application :
Large peak cooler, surface condenser,Air-conditioner, Refrigerator
Material :
Aluminum 1050A
Tensile Strength /MPa :
115-150
non-proportional elongation strength :
≥ 75Mpa
elongation after break :
A50mm ≥ 14%
External diameter /mm :
25 ± 0.1/-0.3
Wall Thickness/mm :
2.54± 0.35
Weight (g/m) :
376
Maximum Length/m :
15
Description

Corrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D25mm WT2.54mm

Product Description:
Large heat exchangers for big power plants are designed to release waste heat into the atmosphere so that the machinery that generates electricity may continue to operate.
Corrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D25mm WT2.54mm

http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html

Industrial pure aluminum has great plasticity, corrosion resistance, and strong electrical and thermal conductivity, but it has low strength, cannot be increased by heat treatment, and has poor cuttability; nonetheless, it can be welded. Gas welding.

Features:

Extruded Aluminum Tubes


It is weaker in strength and structure than seamless aluminum tubes, but it may be made at a lower cost because to its superior production efficiency and comparatively lesser manufacturing challenges.
In comparison to other comparable goods, processing flexibility and longitudinal (extrusion direction) mechanical characteristics are greatly improved.


Applications:


Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.

Technical Parameters:
The properties of industrial pure aluminum include excellent plasticity, resistance to corrosion, strong electrical and thermal conductivity, but low strength; it cannot be reinforced by heat treatment and has poor cuttability. However, it may be welded by contact. gas welding.

1- Appearance Aluminium tubes without defect, without blow on its surface, without scratches, without pollution like grease or oil.
2- Alloy Grade 1050A

3- Composition of alloy (%)

Fe

Mg

Mn

Ti

Al

Autres (others)

0.40

0.05

0.05

0.05

99.50

0.05

Model

Name

Model

Number

Outside

Diameter /mm

Wall Thickness/mm

Maximum

Length/m

Length/mm

Tensile Strength /MPa

Non-

proportional

Elongation Strength /MPa

Elongation After Break A50/mm

Main Size

Series 1,

Series 3

20-32

0.8-2.0

5000-15000

Example

1050A

28

1.0

18

7969

100~135

≥80

≥5.00

25

0.9

6959

23

1.5

9365

32

1.3

12266

H12 -- tensile strength value corresponds to the intermediate value between the annealed state O and the 1/2 hard state, called the 1/4 hard state.

Main Product:
Corrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D25mm WT2.54mmCorrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D25mm WT2.54mm

How to order:

You can then download a form from this website and fill it out with basic details.

Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.


http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html


Alternatively, you can download the Technical Data Requirements Sheet directly.

Yuneng Product Requirements Table.docx


FAQ:
http://mao.ecer.com/test/al-tubes.com/cases/faq-15908.html

Corrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D25mm WT2.54mmCorrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D25mm WT2.54mmCorrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D25mm WT2.54mm
