3003 T5 Corrosion Resistant Aluminium Round Tube for Power Stations D20mm WT1.64mm
3003 T5 Corrosion Resistant Aluminium Round Tube for Power Stations D20mm WT1.64mm
3003 T5 Corrosion Resistant Aluminium Round Tube for Power Stations D20mm WT1.64mm
3003 T5 Corrosion Resistant Aluminium Round Tube for Power Stations D20mm WT1.64mm
3003 T5 Corrosion Resistant Aluminium Round Tube for Power Stations D20mm WT1.64mm
3003 T5 Corrosion Resistant Aluminium Round Tube for Power Stations D20mm WT1.64mm
Specifications
Brand Name :
Yun Neng
Model Number :
3003
Certification :
ISO9001 ISO14001 ISO45001
Place of Origin :
Changzhou China
MOQ :
3 tons
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
50,000 mt per year
Delivery Time :
30 working days after received your down payment
Packaging Details :
Standard export packaging
Product Name :
Power Plant Air Cooling Tube
Application :
Large peak cooler, surface condenser,Air-conditioner, Refrigerator
Material :
Aluminum Alloy 3003
Tensile Strength /MPa :
135-165
non-proportional elongation strength :
≥ 110Mpa
External diameter /mm :
20 ± 0.1/-0.3
Wall Thickness/mm :
1.64± 0.28
Maximum Length/m :
10
Description

3003 T5 Corrosion Resistant Aluminium Round Tube for Power Statio D20mm WT1.64mm

Product Description:

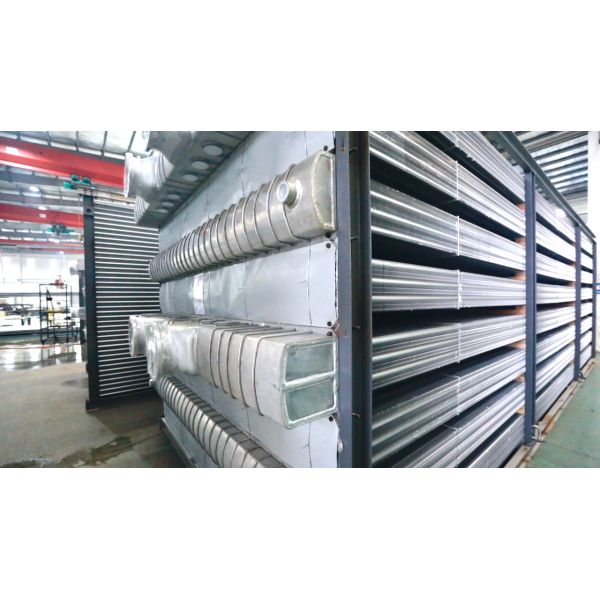

Large heat exchangers for big power plants are designed to release waste heat into the atmosphere so that the machinery that generates electricity may continue to operate.

http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html

Features:

3003 aluminum alloy for AL-Mn system alloy, is one of the most widely used anti-corrosion aluminum, this alloy's strength is not high (slightly higher than industrial pure aluminum), can not be heat treatment to strengthen.

Therefore, the use of cold working methods to improve its mechanical properties: high plasticity in the annealed state, in the semi-cold hardening plasticity is still good, cold hardening plasticity is low, good corrosion resistance, good weldability, cutting performance is poor.

Performance Features.pdf


Applications:

Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.

Technical Parameters:

1- Appearance Aluminium tubes without defect, without blow on its surface, without scratches, without pollution like grease or oil.
2- Alloy Grade 3003

3- Composition of alloy (%)

Si

Fe

Cu

Mn

Zn

Autres (others)

0.60

0.70

0.05-0.20

1.0-1.5

0.10

Production Method

 Model Number State Shape Size and Tolerance
Specification(D) Tolerance


Nominal Wall Thickness(δ)

 Tolerance

Extruded

Aluminum

Tubes

 3003/3103 O

Coil

or Straight Pipe

 D＜6 ±0.05

δ≤0.60

 ±0.04
φ6≤D≤10 ±0.06 δ≤0.8 ±0.05
0.8<δ≤1.5 ±0.06
φ10≤D≤20 ±0.07 1<δ≤2 ±0.08
T5 Straight Pipe D≤25 ±0.15 1<δ≤3 ±0.1
Φ25＜D≤50 ±0.2 ±0.15
Φ50＜D≤80 ±0.25

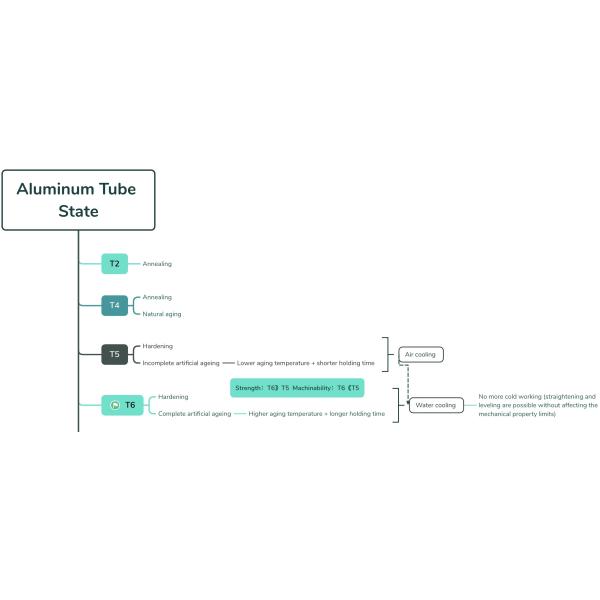

T5: Applies to products that are cooled by the high-temperature molding process and then artificially aged without cold working (straightening and flattening can be carried out without affecting the limits of mechanical properties).
3003 T5 Corrosion Resistant Aluminium Round Tube for Power Stations D20mm WT1.64mm

Main Product:

3003 T5 Corrosion Resistant Aluminium Round Tube for Power Stations D20mm WT1.64mm

How to order:

You can then download a form from this website and fill it out with basic details.

Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.


http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html


Alternatively, you can download the Technical Data Requirements Sheet directly.

Yuneng Product Requirements Table.docx


FAQ:
http://mao.ecer.com/test/al-tubes.com/cases/faq-15908.html

3003 T5 Corrosion Resistant Aluminium Round Tube for Power Stations D20mm WT1.64mm3003 T5 Corrosion Resistant Aluminium Round Tube for Power Stations D20mm WT1.64mm3003 T5 Corrosion Resistant Aluminium Round Tube for Power Stations D20mm WT1.64mm
