GSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm System
GSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm System
Specifications
Place of Origin :
Guangdong China (Mainland)
Brand Name :
Beyond
Certification :
CE,FCC,RoSH
Model Number :
CX-PGSM4
Alarm dialing mode :
GSM&PSTN
Emitting frequency :
868Mhz
GSM Frequency :
3-Band(900/1800/1900MHZ)
Screen Display :
LCD Screen Display
Host Color :
White/Black
MOQ :
1 Set/Sets accept paypal
Price :
$110~$126/set
Packaging Details :
Each set with one gift box,10sets/Carton, Host dimension : 180*120*38 (mm) Product dimension:320*226
Delivery Time :
3 working days for sample/Tow weeks for bulk order
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
8000 Set/Sets per Month
Usage :
Shops, Supermarkets, Engineering security and other commercial establishments
Description

GSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm System

Model:CX-PGSM4

GSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm System

Wireless 868mhz Alarm System Detailed Product Description
GSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm System

Wireless 868mhz Alarm System Basic Functions:

  • Touch keypad: LCD displays Date, Day of the week, Time and current Armed Status
  • 3 Band GSM/PSTN dual net-work. Support phone call alarm and SMS alarm, automatically switch to GSM dailing when telephone line is cut
  • 29 wireless zones (each zone supports up to 4 sensors) and 2 dedicated zones for remotes (supports up to 4 remotes or wireless keypads per zone).
  • Support 8 more wired zones.
  • Can preset up to 5 phone numbers and dial in sequence.
  • Intelligent logic analysis techology, corresponding zone number and sensor name can be displayed.
  • Record up to a 10 second greeting for the auto-dialer, then play the greeting back.
  • Arm/Disarm the system by 5 ways: SMS, Main Host(Keypad), Wireless keypad, Keychain Remotes, or even remotely by phones. (PSTN alarm don't support SMS)
  • Availabel in AC/DC With Low-voltage Indicators
  • Learning sensors to alarm host, very easy operation
  • Non-volatile chip, information stored automatically when off power
  • Check door/window status automatically (This is when the system is disarmed only, if a door is opened, it will sound fast "bi bi bi")
  • Support CID uploading to CMS (Center Monitoring Station), can user our GSM CID connector to have this function.
  • Disconnection alarm, auto priority to occupy the telephone and monitoring function to hear what is happening.
  • Built-in Li-ion backup battery, it will alert when low power or without external power supply
  • Store upt o 100 alarm records and 100 arm/diarm records

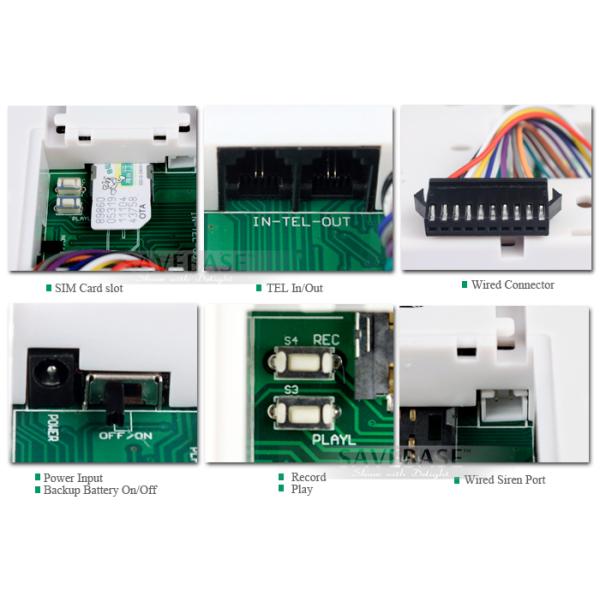

Wireless 868mhz Alarm System Panel Description

GSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm SystemGSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm SystemGSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm System

Wireless 868mhz Alarm System Working Principle

GSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm System

GSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm System

Wireless 868mhz Alarm System Technical Parameters:

GSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm System

Main Panel

Specifications:

  • Network: GSM/PSTN (Phone line cable)
  • Working Power: AC=110~230V, DC=12V 1A
  • Stactic Current: <50mA (when not charging)
  • Alarm Current: < 500mA
  • Built-in Backup Battery:3.7V 1200mAH(rechargeable)
  • Standby: around 8 hours
  • Full Charging time: 12 hours
  • 3-band GSM: GSM 900/1800/1900MHz
  • GSM Transmit Power:2W
  • Receiving and emitting frequency: 868MHz
  • Working Condition: Temperature:-10°C~50°C
    Humidity:<80%
GSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm System

Wireless Door/Window Detector

Features:

  • Generally set as Perimeter zone
  • If any door or window is opened, it will transmit the alarm signals to the alarm host

Specifications:

  • Operating power: 23A 12V alkaline battery
  • Emission Frequency: 868MHz
  • Static Current: ≤20 mA
  • Transmission Current: ≤15mA
  • Transmission Distance: 30m
  • Internal Distance: 15 mm
  • Working Condition: Temperature –10℃~+ 40 ℃
  • Humidity ≤ 90% rh
GSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm System

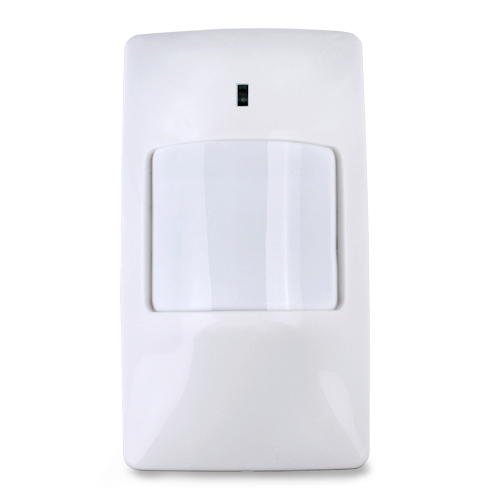

Wireless PIR Detector

Features:

  • Mainly monitor and control indoor space, generally set as Motion zone
  • When human body enters into detecting area, the sensor will transmit alarm signals to the alarm host

Specifications:

  • Opeation Power: 9V alkaline battery
  • Static Current: ≤100 mA
  • Transmission Current: ≤20mA
  • Transmission Frequency: 868MHZ±0.5MHZ
  • Transmission Distance: 30m
  • Detective Speed: 0.3 - 3m/s
  • Detective Distance: Maximun 10m
  • Detective Range: Horizontal 110° Vertical 60°
  • Working Condition: Temperature –10 ℃~+ 40 ℃
  • Humidity ≤ 90 rh
GSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm System

Remote Control

Features:

  • To control the alarm host to arm and disarm
  • With the emergency key for urgent help

Specifications:

  • Operating power: 12V 27A alkaline battery
  • Emitting distance: 30m
  • Emission Current:12≤15 mA
  • Emission Frequency:f=868±0.2 MHz
  • Emission Speed:T≤1 second
  • Working Environment: Temperature -10℃～+40℃
  • Humidity≤90%
GSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm System

Wireless Flash Siren

Specification
Model: Wireless Flash Siren
Function: Blue Light and sound when triggered
Frequency: 868MHz
Installation: Indoor and NOT waterproof
Volumn: 85dB
Transmission Distance: 30m
Dimension: 100*62*34mm
Note: EU UK US is Blue light (defaulted)
AU is Red light (defaulted)

GSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm System

Wireless 868mhz Alarm System Accessories in standard package:

1. alarm host *1pc

2. wireless wide-range PIR detector *1pc

3. wireless door magnet *1pc

4. wireless indoor siren *1pc

5. remote control/key chain * 2pcs

6. power adaptor *1pc

Wireless 868mhz Alarm System Optional Accessories:

1.Gas alarm

2.Smoke alarm

3.Wireless out door siren

4.Wireless keypad

5.Wireless curtain PIR sensor

6.Wireless intelligent door sensor

7.Wireless doorbell

Wireless 868mhz Alarm System Packing Figure:

GSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm SystemGSM &PSTN LCD Screen Display Touch Keypad Wireless 868mhz Alarm System
