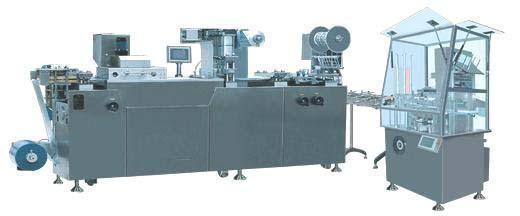

BZH -250A Blister & Cartoning Packing Line
BZH -250A Blister & Cartoning Packing Line
Specifications
Description
Application:
  1. BZH-250 Medicine Packing Connected Line consists of blister packing machine model DPP -250F1 /F2 /F3 , photograph checking system on line, linked machine, automatic encasing machine type XWZ90, etc.
  2. It accomplishes following actions automatically; blister packing, unfilled tablet detecting rejecting, directions folded and feeded together with the blister plate.
  3. Automatic rejecting for un-encasing blister plate and directions and automatic waiting without blister plate.
  4. Each unit of equipment has independent dymamic source and PLC control system, which has perfect function and reliable running.
  5. One blister packing machine can equip with several encasing machines. It can improve the capacity greatly if there's only one blister plate in one box.
Technical parameters
  1. Max. Capacity: 90boxes/min (180boxes/min for 2 packing machine
  2. Power Supply: 3-phases 4-wires 380V 50Hz(220V 60Hz)
  3. Total Power:8KW
  4. Dimension (L*W*H):BZH -250A 6500*1200* 1650mm
  5. BZH-250B 4500*3000* 1650mm
  6. Total Weight: BZH -250A 2600Kg
  7. BZH-250B 2500Kg
  8. Non-oil Air Compressor (Arranged by user): Pressure 0.8 Mpa
  9. Air Exhaust: 25m 3 /hour (Reference specification; WW-0.6/7 Power: 5.5KW
