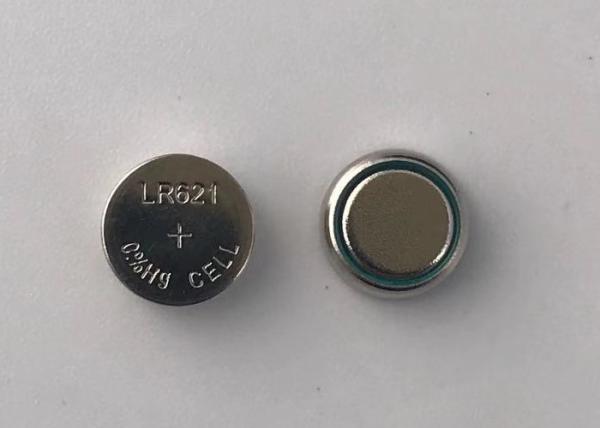

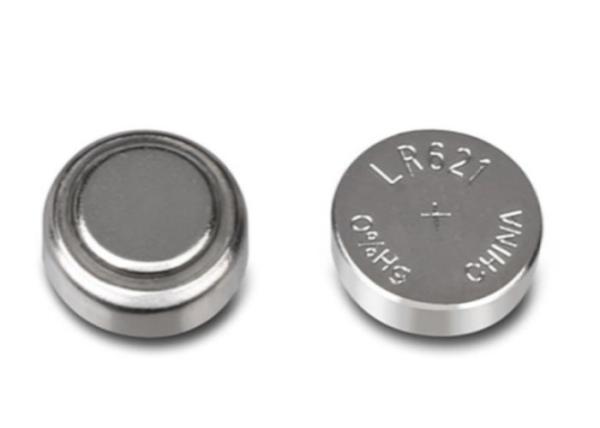

Eco Friendly Alkaline Button Battery 1.5 V Alkaline Button Cell AG1 LR62 SR621SW 364 LR60 164
Eco Friendly Alkaline Button Battery 1.5 V Alkaline Button Cell AG1 LR62 SR621SW 364 LR60 164
Eco Friendly Alkaline Button Battery 1.5 V Alkaline Button Cell AG1 LR62 SR621SW 364 LR60 164
Eco Friendly Alkaline Button Battery 1.5 V Alkaline Button Cell AG1 LR62 SR621SW 364 LR60 164
Eco Friendly Alkaline Button Battery 1.5 V Alkaline Button Cell AG1 LR62 SR621SW 364 LR60 164
Eco Friendly Alkaline Button Battery 1.5 V Alkaline Button Cell AG1 LR62 SR621SW 364 LR60 164
Eco Friendly Alkaline Button Battery 1.5 V Alkaline Button Cell AG1 LR62 SR621SW 364 LR60 164
Eco Friendly Alkaline Button Battery 1.5 V Alkaline Button Cell AG1 LR62 SR621SW 364 LR60 164
Specifications
Brand Name :
Neutral or OEM
Model Number :
AG1 LR62 SR621SW 364 LR60 164
Certification :
CE ROHS MSDS REACH SGS MSDS
Place of Origin :
China
MOQ :
500000
Payment Terms :
L/C, T/T
Supply Ability :
1000000pec per Month
Delivery Time :
7-15 work days
Packaging Details :
Standard export package or according to Customer requirement
Nominal Capacity :
13mAh (Continuous Discharging Under 22kΩ load to 0.9V End-Voltage at 20℃)
Nominal Voltage :
1.5V
Size :
Φ6.8mm*2.1mm
Weight :
0.29g
Rechargeable :
No
Applications :
calculators, clocks, watches, computers, camcorders, remote controls, electronic instruments, digital voice recorders, blood glucose meters, cholesterol testing meters, LED lights and others
Warranty :
1 year
Description

1.5V AG1 LR62 SR621SW 364 LR60 164 Alkaline Batteries Button Coin Cells Watch battery digital calipers

Description:

Coin cell batteries are thin, circular batteries often used to power hearing aids, wristwatches, key fobs, digital calipers and test instruments, and small flashlights. Commonly called button batteries or watch batteries, they have a low self-discharge to hold their charge for a long shelf and service life. These batteries can be discarded when their charge runs out.

Applications:

calculators, clocks, watches, computers, camcorders, remote controls, electronic instruments, digital voice recorders, blood glucose meters, cholesterol testing meters, LED lights and others

Specifications:

Nominal Voltage 1.5V
Nominal Capacity (Continuous Discharging Under 22kΩ load to 0.9V End-Voltage at 20℃) 13mAh
Operating temperature range -20℃~70℃
Eco Friendly Alkaline Button Battery 1.5 V Alkaline Button Cell AG1 LR62 SR621SW 364 LR60 164 diameter(A) 6.8(±0.05)mm

height

(B)

 2.1(-0.4)mm
Mass Approx 0.29g
Open-circuit Voltage 1.5V
Appearance and poles Appearance should be smooth, clear mark, no deformation, rust, and leakage
Minimum Average Discharge Time(22kΩ) Initial test (New battery) 240h
After 12 months 216h
Leakage Characteristics (Over discharge) No Leakage

Discharge Curve:

(Condition: Continuous Discharging Under 22kΩ load to 0.9V End-Voltage at 20℃)Eco Friendly Alkaline Button Battery 1.5 V Alkaline Button Cell AG1 LR62 SR621SW 364 LR60 164Eco Friendly Alkaline Button Battery 1.5 V Alkaline Button Cell AG1 LR62 SR621SW 364 LR60 164Eco Friendly Alkaline Button Battery 1.5 V Alkaline Button Cell AG1 LR62 SR621SW 364 LR60 164

Model # Cross Reference Nominal Voltage (V) Capacity (mAh)

Dimension (mm)

[Dia. x Height]
AG0 L521 1.5V 9 5.75 x 2.2
AG1 L621 364 1.5V 13 6.8 x 2.1
AG2 L726 397 1.5V 23 7.9 x 2.6
AG3 LR41 L736 392 1.5V 40 7.9 x 3.6
AG4 LR66 L626 377 1.5V 18 6.8 x 2.6
AG5 L754 393 1.5V 60 7.9 x 5.4
AG6 LR69 L921 371 1.5V 27 9.5 x 2.1
AG7 L926/L927 395 1.5V 42 9.5 x 2.7
AG8 LR1120 L1121 391 1.5V 43 11.6 x 2.1
AG9 L936 394 1.5V 53 9.5 x 3.6
AG10 LR1130 L1131 389 1.5V 83 11.6 x 3.1
AG11 L721 362 1.5V 17 7.9 x 2.1
AG12 LR43 L1142 886 1.5V 100 11.6 x 4.2
AG13 LR44 L1154 357 1.5V 170 11.6 x 5.4

Competitive Advantage:

1) Environmental friendly,Light weight
2) High density of energy
3) Low self-discharge
4) Low internal resistance
5) No memory effect
6) Free of mercury
7) Safety assurance : No fire, No explosion, No leakage

Tag:Alkaline button battery,coin cell,watch battery
