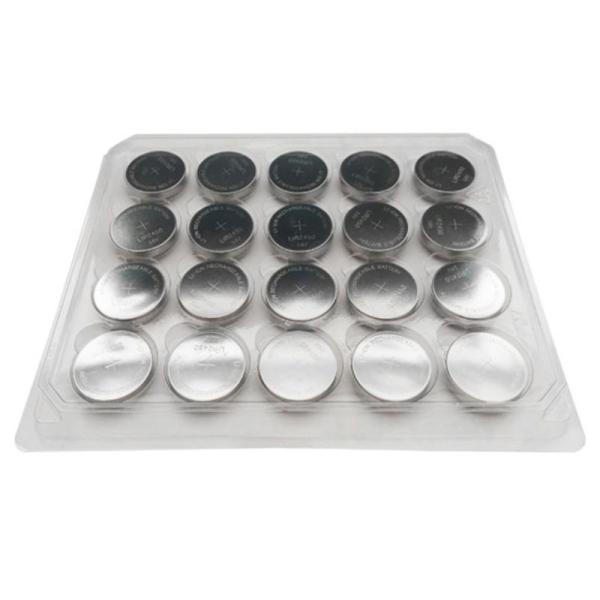

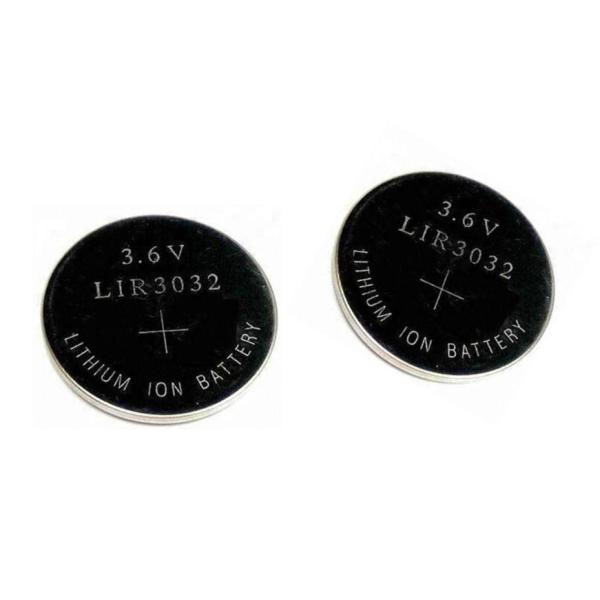

Rechargeable LIR3032 Li Ion Button Battery 110mAh Low Power Consumption
Rechargeable LIR3032 Li Ion Button Battery 110mAh Low Power Consumption
Rechargeable LIR3032 Li Ion Button Battery 110mAh Low Power Consumption
Rechargeable LIR3032 Li Ion Button Battery 110mAh Low Power Consumption
Rechargeable LIR3032 Li Ion Button Battery 110mAh Low Power Consumption
Rechargeable LIR3032 Li Ion Button Battery 110mAh Low Power Consumption
Rechargeable LIR3032 Li Ion Button Battery 110mAh Low Power Consumption
Rechargeable LIR3032 Li Ion Button Battery 110mAh Low Power Consumption
Specifications
Brand Name :
Neutral or OEM
Model Number :
LIR3032
Certification :
CE ROHS MSDS REACH SGS
Place of Origin :
China
MOQ :
10000PCS
Payment Terms :
L/C, T/T
Supply Ability :
1000000Pcs Per Month
Delivery Time :
15-20 work days
Packaging Details :
Standard export package or customized
Nominal Voltage :
3.7V
Nominal Capacity :
110mAh
Size :
Φ230mm*3.2mm
Weight :
6.5g
Rechargeable :
yes
Application :
Smart wearable device,PDA,Hand charger, clock, bluetooth wireless products, PDA, IC card, small memory, counter
Warranty :
1 year
Description

LIR3032 3.7V Li-ion Button Battery/3.6V Coin Cell Rechargeable 110mAh Smart wearable device

Description:
The 3.7V Li-ion Button Cell is a rechargeable battery, and used for electric products and Car Key Automobile remote control key The battery has a low power consumption and is energy-saving. With no pollution, no infrared and no thermal radiation, It is also easy to install, affordable, and a high quality Battery!

Applications:
Smart wearable device,Blood glucose meter,pet collar,Hand charger, clock, bluetooth wireless products, Laptop computers,PDA, IC card, small memory, counter,Miniature instruments, medical instruments, electronic scales, electronic dictionaries, various digital products backup power.



Specifications:

Model number LIR2025 LIR1220 LIR1620 LIR1632 LIR2016 LIR2032 LIR2032H LIR2430 LIR2440 LIR2450 LIR2450H LIR3032
Nominal capacity 30mAh 7mAh 15mAh 25mAh 15mAh 45mAh 70mAh 60mAh 90mAh 120mAh 200mAh 110mAh
Nominal Voltage 3.7V 3.7V 3.7V 3.7V 3.7V 3.7V 3.7V 3.7V 3.7V 3.7V 3.7V 3.7V
Standard Discharge current 0.2C 0.2C 0.2C 0.2C 0.2C 0.2C 0.2C 0.2C 0.2C 0.2C 0.2C 0.2C
Maximum Discharge current 0.5C 0.5C 0.5C 0.5C 0.5C 0.5C 0.5C 0.5C 0.5C 0.5C 0.5C 0.5C
Overcharge protection voltage 4.275V±0.025 4.275V±0.025 4.275V±0.025 4.275V±0.025 4.275V±0.025 4.275V±0.025 4.275V±0.025 4.275V±0.025 4.275V±0.025 4.275V±0.025 4.275V±0.025 4.275V±0.025
Overdischarge protection voltage 2.3V±0.05 2.3V±0.05 2.3V±0.05 2.3V±0.05 2.3V±0.05 2.3V±0.05 2.3V±0.05 2.3V±0.05 2.3V±0.05 2.3V±0.05 2.3V±0.05 2.3V±0.05
Size Φ20mm *2.5mm Φ12.5mm *2.0mm Φ16mm *2.0mm Φ16mm *3.2mm Φ20mm *1.6mm Φ20mm *3.2mm Φ20mm *3.2mm Φ24.5mm *3.0mm Φ24.5mm *4.0mm Φ24.5mm *5.0mm Φ24.5mm *5.0mm Φ30mm *3.2mm
Weight 2.5g 0.82g 1.35g 1.75g 1.8g 2.6g 3.15g 4.2g 4.4g 5.3g 6.92g 6.5g
rechargeable Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes


Competitive Advantage:
1. Excellent charge-discharge cycle characteristics, more than 500 cycles.
2. Stable and reliable work, longer service life.
3. Excellent safety performance.
4. Supports long - term constant pressure floating charge, no memory effect.
5. Small size and high output power, can work normally at -20°C - +60°C, low self-discharge rate.
6. The operating voltage is high (3.6v) and the output current is relatively large.
