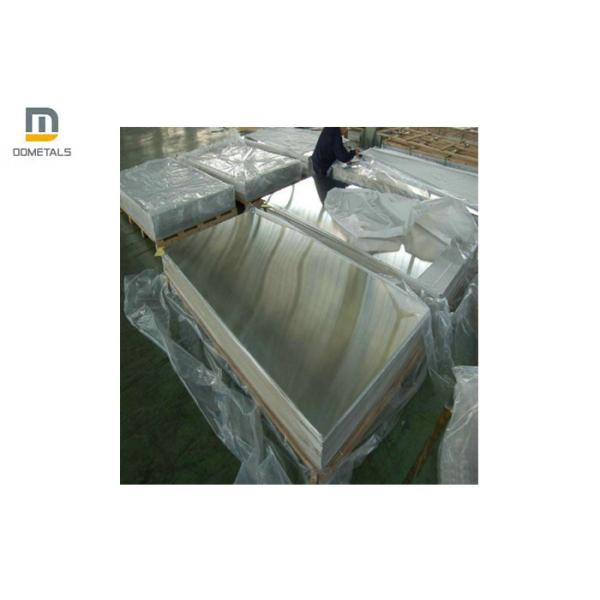

Hot Stamping AZ31 Magnesium Alloy Plate Sheet For Aerospace Etching Engrving
Hot Stamping AZ31 Magnesium Alloy Plate Sheet For Aerospace Etching Engrving
Hot Stamping AZ31 Magnesium Alloy Plate Sheet For Aerospace Etching Engrving
Hot Stamping AZ31 Magnesium Alloy Plate Sheet For Aerospace Etching Engrving
Specifications
Brand Name :
DOME
Model Number :
DM004
Certification :
ISO9001,CE,SGS
Place of Origin :
Zhengzhou,China
MOQ :
10Pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-25 work days
Packaging Details :
In carton, wooden case
Product name :
Magnesium Alloy Plate
Chemical Composition :
Al Zn Mn Mg
Alloy Or Not :
Alloy
Shape :
Sheet Plate Bar Board
Extrusion plate thickness :
5mm-105 mm
Extrusion plate width :
10 mm-400 mm
Rolled plate thickness :
0.3mm-5mm
Rolled plate width :
10mm-500mm
Description

Hot Stamping AZ31 Magnesium Alloy Plate Sheet for Aerospace Etching Engrving

Magnesium alloy plate can be used in all kinds of field.
1. Magnesium alloy plate are used to make satellites, lunar landing aircraft bases, exterior panel of missile and rocket and the empennage of missile and plane.
2. Magnesium alloy middle board are used to make the auxiliary tank ,side board and other structure of battleplane.
3. Cast sheet of magnesium alloy:
* The magnesium alloy are used on the train for vibration attenuation, seat and couchette framework lining board and goods shelf.
* The wide width usually requests between 1200-1800mm,and thickness between 1 and 1.5mm on cars’ front and rear panels, door
panels .
* The shell of 3C product, computer, mobile hard disk, CD, camea, acoustics, cell phone.
* Magnesium etching has replaced copper plate in printing and printing plate industry, and average thickness of the plate is 5mm.
* Magnesium has been continuously used in electric tool and sport equipment.

Precision Magnesium Alloy Plates are lightweight, fast etching and environmentally friendly. They are used for foil stamping,
embossing, thermal dies, flexography, plaques, awards, rubber stamp masters, fabric and leather embossing. Etching magnesium
plate, nitric acid corrosion, the surface can generate a layer of dense, continuous oxide layer, to prevent the internal magnesium
metal to continue the reaction. long-term placed in the air, will not corrode.

Technology of Magnesium Alloy Plate:

Model
Chemical Component(%):
Type
Mg
Al
Zn
Mn
Si
Fe
Cu
AX31B
residual
2.5-3.5
0.60-1.4
0.20-1.0
≤0.08
≤0.003
≤0.001
AZ61A
residual
5.8-7.2
0.40-1.5
0.15-0.50
≤0.10
≤0.005
≤0.005
AZ80A
residual
7.8-9.2
0.20-0.80
0.12-0.50
≤0.10
≤0.005
≤0.005
AZ91D
residual
8.5-9.5
0.45-0.90
0.17-0.40
≤0.08
≤0.004
≤0.00
Hot Stamping AZ31 Magnesium Alloy Plate Sheet For Aerospace Etching Engrving
Advantage of Magnesium Alloy Plate:
• Process: Semi-Casting & Hot Rolling, Hot Rolling.
• Size: 1.5mm - 10mm thickness, Width 580mm, Length 1000mm or can customized.
• Surface Treatment: Water Polishing & Machining, Perfect Clean & Bright & Flatness.
• Inspection of inner quality: By imported ultrasonic flaw detection inspection equipment UI-25.

Alloy Designation Mechanical Properties
New Code Old Code Thickness (mm) Tensile Strength Rm (N/mm²) Yield Strength Rp0.2 (N/mm²) Elongation (A%) 50mm
AZ31B 0.3-3.0 260 170 24.0
3.0-10.0 230 140 18.0
M2M MB1 0.80-3.00 190 110 6.0
3.00-5.00 180 100 5.0
5.00-10.00 170 90 5.0
AZ40M MB2 0.50-3.00 280 180 17.0
3.00-5.00 260 160 14.0
AZ41M MB3 0.80-3.00 290 190 17.0
3.00-5.00 270 170 14.0
ME20M MBB 0.80-3.00 250 170 21.0
3.00-10.00 220 140 15.0

Hot Stamping AZ31 Magnesium Alloy Plate Sheet For Aerospace Etching Engrving
