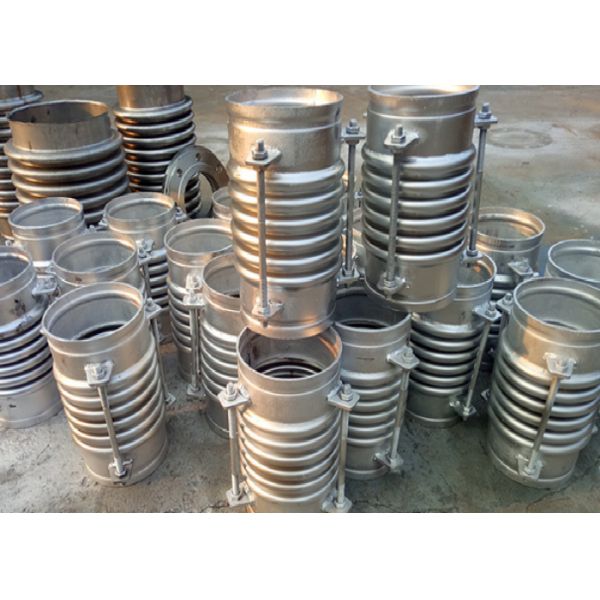

316 Metal Expansion Bellow
316 Metal Expansion Bellow
316 Metal Expansion Bellow
316 Metal Expansion Bellow
Specifications
Brand Name :
OEM
Model Number :
DN15-DN5000
Certification :
CNAS ,PED ,CE,ISO
Place of Origin :
Cangzhou ,Hebei Pro ,China
MOQ :
5pcs
Price :
Negiotion
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
7000 Piece/Pieces per Month expansion bellow compensator Specialised Pipe And Fittings
Delivery Time :
According to PO QTY
Packaging Details :
Carton Box, Pallet , or Plywood Case No Unacceptable Packaging Material or Bamboo Products been Used as Packing
parts :
Flange, bellows, internal sleeve, tie-rod, pipe end, nut
Normal Specification :
ID40~600mm,overall length:300~400mm
Axial Movement: :
+10mm -40mm
Application temperature :
Application temperature
Head Code :
square
OEM/ODM :
Allowed
Working Pressure :
150lb-2500lb
Shape :
Equal
Explosion pressure :
2 times of working pressure
MOQ :
5PCS
Description

Products decription :

Stainless steel flexible metal expansion bellow compensator Specialised Pipe And Fittings

Application

Expansion Joint Bellows Compensator is made of SUS304 material, multiply bellows with features of lower elasticity coefficient, high-temperature and high-pressure resisiting, applied to absorb the expansion or copression of the HTM fluid pipeline. It can make a long service life in piping system.

Construction

ITEM PARTS MATERIAL REMARK
1 Bellows SUS304 SUS316/321
2 Flanges SS400 SUS304/316/321
3 Tube End SS400 SUS304
4 Internal Sleeve SUS304 SUS316
5 Tie Rods SS400 SUS304

Specification

Nominal Bore Total Length Bellows O.D. Force to Compress Effective Area Axial Movement Rated Working Pressure
mm ins mm mm kg cm2 mm kg/cm2
40 1 1/2 350 58 75 17.6 +10 -40 16
50 2 350 76 110 30.4 +10 -40 16
65 2 1/2 350 92 205 43.8 +10 -40 16
80 3 350 106 261 62.8 +10 -40 16
100 4 350 133 303 107.7 +10 -40 16
125 5 350 163 630 162.9 +10 -40 16
150 6 350 190 1154 227.5 +10 -40 16
200 8 350 252 1905 385.3 +10 -40 16
250 10 350 315 1932 670.1 +10 -40 16
300 12 350 366 2353 923.5 +10 -40 16
350 14 400 398.1 2192 1102 +10 -40 16
400 16 400 462.8 2689 1464 +10 -40 16
500 20 450 564 3322 2235 +10 -40 16
600 24 500 666 3956 3167 +10 -40 16

*Specifications stated abvoe are the standard. We can design and manufacture according to customer's requirement

*Flange Standard: JIS, ANSI, DIN, B.S. JB etc

Features

1. Excellent Welding Technology, like a fish swimming in water.

2. Omega Bellows, More flexible and longer service life.

Normal Specification ID40~600mm,

overall length:300~400mm

material Sus304,321,310S,316L,etc.

1) Material Sus304,321,310S,316L,etc.
2)parts Flange, bellows, internal sleeve, tie-rod, pipe end, nut
3)Size available Φ25mm~φ7000mm
4)bellows layers 1-6 layers
5)Threads DIN, BSPT, BSP, NPS, NPT, Metric, (ISO7/1, DIN 2999, ANSI B1.20.1)
6)Flange Drilled JIS,JB,BS, DIN, ANSI, or others provided drawing samples
7)Surface Carbon steel flange galvanized or AL painted
8)Normal Specification ID40~600mm,overall length:300~400mm
9)Usage For the chemical industry, metallurgy, electricity, shipbuilding, construction and other industries
10)Application temperature -50~300°C
11)feature

Easy cleaning and maintenance

To resolve minor deviation because of pipe connection and eliminate the pipeline residual stress
Company Profiles

Our Focus on the total needs of our client and our emphasis is on the services and prompt solutions for all their critical purchasing requirements
.
We have an efficient and experienced team of staffs in China and regions concentrating on the trading of engineering steels and its related part and equipments .We have the capacity to execute large and important orders,yet we are conscientious enough to pay attention to the smallest requestments

Our experienced engineers and in house QC engineers also provide technical support on top of their general sales service,

We focus on the total needs of our clients from a particular industry,This reduces the need for most buyer to cope with multiple dealers for products of different size ,Variety ,Several different sources or products from various part of the world ,We also reduce the need for most buyers to deal with different salespeople and departments within the same trading company

Our Strength lies in Our People ,Our resources ,Our flexibility and our tireless commitment to serving our customers

OUR BUSINESS COVERAGE :

Oil&Gas Industry --(Exploration &Prodcution)

Petrochemical /Refinery Industry

Chemical /Pharmaceutical Plants

Marine&Offshore Industry

Precision Engineering Equipment Such as Pressure Vessel ,Heat Exchanges ,Columns ,Tower ,Tanks,etc

Nuclear Power Generation Industry

Clean Energy Generation (Windmill,solar ,Geo - Thermal)

Cross -country Pipe line

Industrial Plants

Pulp&Paper Industry

Waste &Desalination Plant

Smelting Plants /Steel Plants

Packaging & Shipping

1.Air express(FedEx,UPS,DHL&EMS);

2.Air transport;

3.Sea transport;

4.Sea-land transport.
