16Mpa LNG Alloy Pipe Fittings , 3PE Coating Surface Cryogenic Storage Tank
16Mpa LNG Alloy Pipe Fittings , 3PE Coating Surface Cryogenic Storage Tank
16Mpa LNG Alloy Pipe Fittings , 3PE Coating Surface Cryogenic Storage Tank
16Mpa LNG Alloy Pipe Fittings , 3PE Coating Surface Cryogenic Storage Tank
Specifications
Brand Name :
OEM
Model Number :
DN50-DN5000
Certification :
CNAS ,PED ,CE,ISO
Place of Origin :
Cangzhou ,Hebei Pro ,China
MOQ :
1 pc
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 set /month Alloy Pipe Fittings
Delivery Time :
To be negotiated
Packaging Details :
Standard export packaging (Plywood Case Of Outside,Plastic Cloth Of Inside
shape :
equal
Working pressure :
10-16Mpa
Service :
OEM
Material :
Alloy steel .stainless steel
length :
customized
Processing Service :
Bending, Welding, Decoiling, Punching, Cutting
Tolerance :
±5%
Technique :
Hot Rolled
Surface :
3PEcoating
Testing :
BV;SGS,
Description

Product Introduction:

Natural Gas Storage Tank LNG Cryogenic Storage Tank Alloy Pipe Fittings

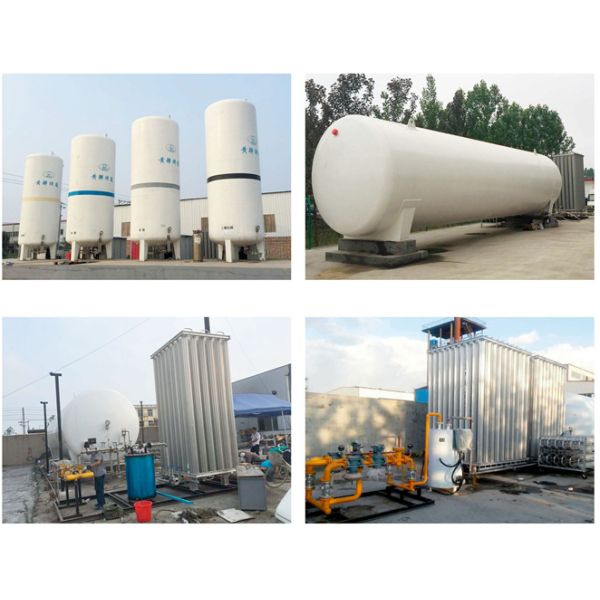

LN2 low temperature storage tank (vertical) detailed description:

With the rapid development of my country's economy and industry, more and more cryogenic liquid storage tanks are used in enterprise production. As a special type of pressure vessel, cryogenic liquid storage tanks are mainly used to store cryogenic liquids such as liquid oxygen, liquid nitrogen, liquid argon, etc. The structure of the container is mainly jacketed vacuum powder insulation, and the inner The pressure of the cartridge is increased to deliver the liquid to the user. The cryogenic liquid storage tank is mainly composed of a tank body, a pipe instrument system, accessories and a booster. The tank structure is a jacketed vacuum container, which is composed of an inner cylinder and an outer cylinder. The inner cylinder is made of austenitic stainless steel, and the outer cylinder is made of carbon steel.
The guarantee of the insulation performance of the low-temperature storage tank mainly depends on the vacuum degree of the interlayer. Therefore, when using medium and low temperature liquid storage tanks, the abnormal problems that occur are often related to the quality of the vacuum to a large extent.
Due to the special structure of the cryogenic liquid storage tank, the main pressure-bearing part is the inner cylinder without manholes, and the outer cylinder is under negative pressure. The inner cylinder cannot be inspected during the inspection. Therefore, its regular inspection should focus on the outer cylinder, accessories and environmental inspection.

type Size Sealing vacuum degree pa Static evaporation %/ specification Total Weight (KG)
LN2 Diameter X length X thickness weight
Vertical 5/0.8 ≤2 0.650 Innert:DN1400X3672X6 OD:DN1900X5115X8 ~4160kg
5/1.6 ≤2 0.650 Innert:DN1400X3672X8 OD:DN1900X5115X8 ~4650kg
10/0.8 ≤2 0.550 Innert:DN1700X4705X6 OD:DN2200X6035X8 ~6035kg
10/1.6 ≤2 0.550 Innert:DN1700X4705X10 OD:DN2200X6035X8 ~6850kg
15/0.8 ≤3 0.530 Innert:DN1800X6214X6 OD:DN2300X7730X8 ~8196kg
15/1.6 ≤3 0.530 Innert:DN1800X6214X11 OD:DN2300X7730X8 ~9780kg
20/0.8 ≤3 0.500 Innert:DN2100X6146X7 OD:DN2600X7655X8 ~9715kg
20/1.6 ≤3 0.500 Innert:DN2100X6146X12 OD:DN2600X7655X8 ~11450kg
30/0.8 ≤3 0.440 Innert:DN2100X9046X8 OD:DN2600X10605X8 ~13270kg
30/1.6 ≤3 0.440 Innert:DN2100X9046X14 OD:DN2600X10605X8 ~15790kg
50/0.8 ≤3 0.350 Innert:DN2600X9885X9 OD:DN3200X11670X10 ~21725kg
50/1.6 ≤3 0.350 Innert:DN2600X9885X16 OD:DN3200X11670X10 ~26500kg
100/0.8 ≤5 0.250 Innert:DN3000X14670X11 OD:DN3600X16550X14 ~43386kg
100/1.6 ≤5 0.250 Innert:DN3000X14670X20 OD:DN3600X16550X14 ~53300kg
150/0.8 ≤8 0.225 Innert:DN3200X19308X12 OD:DN3800X22000X14 ~61500kg
200/0.8 ≤8 0.200 Innert:DN3400X22624X14 OD:DN4000X25300X14 ~76800kg

FAQ

Q:When the products will be shipped ?
A:Within 7-15 days after receing the prepayment.


Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.


Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.


Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.


Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.

Company Profile

Our Focus on the total needs of our client and our emphasis is on the services and prompt solutions for all their critical purchasing requirements
.
We have an efficient and experienced team of staffs in China and regions concentrating on the trading of engineering steels and its related part and equipments .We have the capacity to execute large and important orders,yet we are conscientious enough to pay attention to the smallest requetments

Our experienced engineers and in house QC engineers also provide technical support on top of their general sales service,

We focus on the total needs of our clients from a particular industry,This reduces the need for most buyer to cope with multiple dealers for products of different size ,Variety ,Several different sources or products from various part of the world ,We also reduce the need for most buyers to deal with different salespeople and departments within the same trading company

Our Strength lies in Our People ,Our resources ,Our flexibility and our tireless commitment to serving our customer

Packing & Delivery

Packing Details : Small Boxes put inside Cartons put on pallets, bulk packaging in Cartons or bags put on pallet

Delivery Details : 25-30 days after receipt of advance

Special package: sealed plastic bag, zipper plastic bag, pearl cotton box, blister card, white box or as your required.

Delivery:

From Tianjin Port or Shanghai /Da lian/Qingdao/Guangzhou Port.

We can delivery the goods within 15 days after getting the deposit
