ATI BS EN10242 Octagonal Metal O RING Gasket Sealing Oval OEM
ATI BS EN10242 Octagonal Metal O RING Gasket Sealing Oval OEM
ATI BS EN10242 Octagonal Metal O RING Gasket Sealing Oval OEM
ATI BS EN10242 Octagonal Metal O RING Gasket Sealing Oval OEM
Specifications
Brand Name :
OEM
Model Number :
DN15-DN5000
Certification :
CE,API,PED,ABS,CCS,ISO9001
Place of Origin :
Cangzhou ,Hebei Pro,China
MOQ :
1Set(12pcss)
Price :
Negotiate
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
90000 Piece/Pieces per Month
Delivery Time :
in 7 Days
Packaging Details :
Each pack of gaskets is covered bubbles and anti-shake materials within carton box
Feature: :
waterproof,anti-aging,anti-static,oil resistance
teperature :
30-250℃,just according to yours
color :
different colors
package :
Each pack of gaskets is covered bubbles and anti-shake materials within carton box
Model :
RX
Standard :
ASME B16.20
Wall thickness :
3.2mm 4.5mm 6.3mm 7.2mm
Service :
OEM
MATERIAL :
EPDM Rubber
Description

Products description:

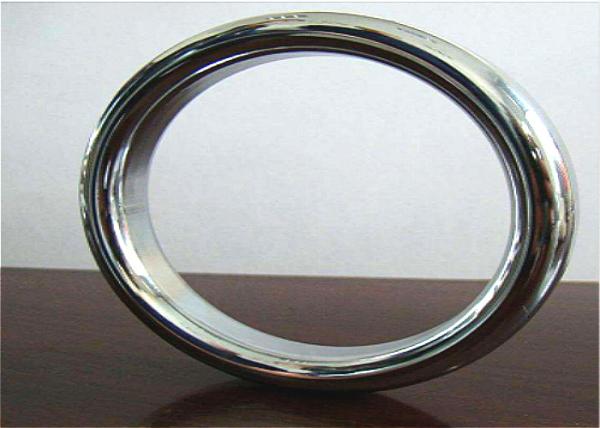

Sealing Oval Octagonal Metal RTJ Flange Ring Joint Gasket O-RING Gasket

Oval octagonal gasket ; RTJ gasket;style RX O-RING gasket

The Style RX is an adaptation of the standard Style R which is energized when the assembly is pressurised. The RX is designed to fit the same groove design as a standard Style R, making the joints interchangeable, however consideration should be given to the difference in finished make up distance.

The geometry of this modified design induces a pressure energising effect when the assembly is pressurised, improving the efficiency of the seal.

Surface finish of the Style RX Ring Type Joint sealing faces (23° angled faces) shall not be greater than 1.6 μm Ra /63 μin RMS

Maximum Hardness
Material
Uns number
Brinell*
Rockwell b+
Identification
Soft Iron
90
56
D
Low Carbon Steel
120
68
S
4-6%Chrome 1/2% Moly
K42544
130
72
F5
Type 304 Stainless Steel
S30400
160
83
S304
Type 316 Stainless Steel
S31600
160
83
S316
Type 347 Stainless Steel
S34700
160
83
S347
Type 410 Stainless Steel
S41000
170
86
S410
Titanium Grade 2
R50400
Alloy 600
N06600
200
Alloy 625
N06625
200
Alloy 800
N08800
200
Alloy 825
N08825
160
Hastelloy
N10001
200
Alloy C276
N1076
200
SMO 254
S32154
180
Zeron 100
200
Super Duplex
S31803

Octagonal Metal Ring

•Metal ring gasket is used in pipe flanges, valves, pressure vessels, submarine, high-speed joint surface, high temperature and high pressure valve cover and other pressure joint sealing.

Octagonal Metal Ring:

Payment D/P,T/T,Western Union
Lead time 7days after sample confirmed
Certification: ISO9001; CE; BV;API
Our Seivice The delivery time and the technical services of the customer requirement arrive ahead of the scheduled time.
Even its in the midnight, if the customer need a small o-ring, it will be send regardless of the cost.
It only complete 50% of the sales when the installation finished.
Stability of the product in use will be concerned after the installation, whether the product is stable in the operation process.
24 hours service will be followed if there is any question.
In the first period whether its customer’s mistake or own’s mistake, solve the problem firstly.
Free to Surveying and mapping ,provide reasonable advice in the process of sealing.
We can do technical transformation for the unreasonable seal.
