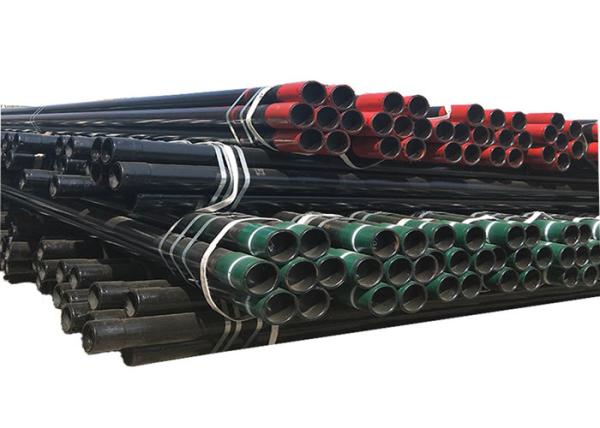

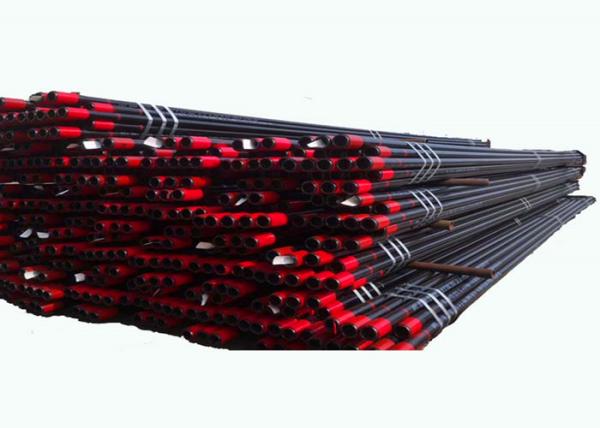

API 5CT Oilfield Casing Welded Galvanized Steel Pipe 5.8m Length
API 5CT Oilfield Casing Welded Galvanized Steel Pipe 5.8m Length
API 5CT Oilfield Casing Welded Galvanized Steel Pipe 5.8m Length
API 5CT Oilfield Casing Welded Galvanized Steel Pipe 5.8m Length
Specifications
Brand Name :
OEM
Model Number :
41/2 " 7", 7 5/8", 7 3/4", 8 5/8", 9 5/8", 10 3/4", 11 3/4", 13 3/8".20"
Certification :
CNAS, CE,ISO,
Place of Origin :
Cangzhou,Hebei Pro ,China
MOQ :
20ton
Price :
negotion
Payment Terms :
L/C, L/C, T/T, Western Union, MoneyGram
Supply Ability :
15000ton/month
Delivery Time :
within 30 days
Packaging Details :
Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end
used :
Construction Structure
size :
1/2"-48" (DN15mm-1200mm)
Tolerance :
±5%
Length :
5.8m-12m or as your reques
type :
Welded Steel Pipe
inspection :
third party
packing :
Package with 20 ft or 40 ft container, fixing spiral steel pipe in the container with steel cable
shape :
Hollow Section Tube
End protector :
Plastic Pipe Cap
Description

Product Description:

Oilfield Oilwell Casing Pipe API 5CT Casing And Tubing Pipe Galvanized Steel Pipe

Oilfield Oilwell Casing Pipe API 5CT Casing And Tubing Pipe Galvanized Steel Pipe

The casing we provided that their grade are K55,J55,N80,L80,P110,H-40,M-65,C-95,C-90,T-95,Q-125 and so on..

The size designation are 41/2 " 7", 7 5/8", 7 3/4", 8 5/8", 9 5/8", 10 3/4", 11 3/4", 13 3/8".20"

API 5CT Oil Casing Pipe
Outer Diameter Wall Thickness Grade Thread Length
in mm kg/m lb/ft
4 1/2" 114.3 14.14-22.47 9.50-15.10 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
5" 127 17.11-35.86 11.50-24.10 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
5 1/2" 139.7 20.83-34.23 14.00-23.00 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
6 5/8" 168.28 29.76-35.72 20.00-24.00 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
7" 177.8 25.30-56.55 17.00-38.00 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
7 5/8" 193.68 35.72-63.69 24.00-42.80 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
8 5/8" 219.08 35.72-72.92 24.00-49.00 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
9 5/8" 244.48 48.07-86.91 32.30-58.40 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
10 3/4" 273.05 48.73-97.77 32.75-65.70 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
11 3/4" 298.45 62.50-89.29 42.00-60.00 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
13 3/8" 339.72 71.43-107.15 48.00-72.00 J55/N80/P110/K55 LTC/STC/BTC R1/



Deatails:

Usage:Applicable to the general structure, mechanical structure, water wall panel, economizer, super heater, boiler and heat exchanger with seamless steel tubes, and to transport liquid, gas, oil etc.

Standard:API 5L, API 5CT, ASTM A106/A53, ASTM A519, JIS G 3441, JIS G3444, JIS G3445 DIN 2391, EN10305, EN10210, ASME SA106, SA192, SA210, SA213, SA335, DIN17175, ASTM A179...

Out Diameter:1/8 - 30 inch (10.3-762mm)

Wall Thickness:0.049" - 2.5" (1.24- 63.5mm)

Length:Random Length, Fixed Length, SRL, DRL

Steel Grade:API 5L: GR B, X42, X46, X56, X60, X65, X70

ASTM A53/A106: GR A, GR B, GR C

ASME SA106: GR.A, GR.B, GR.C

ASME SA192: SA192

ASME SA209M: T1, T1a

ASME SA210: GR.A-1, GR.C

ASME SA213: T2, T5, T9, T11, T12, T22

ASME SA335: P2, P5, P9, P11, P12, P22, P91

DIN17175:ST35.8, ST45.8, 15Mo3, 13CrMo44

Heat treatment:Annealed: Bright annealed,Spheroidize annealed, Normalized, Stress relieved, Cold finished, Quenched and Tempered

Company Profile:

Our Focus on the total needs of our client and our emphasis is on the services and prompt solutions for all their critical purchasing requirements
.
We have an efficient and experienced team of staffs in China andregions concentrating on the trading of engineering steels and its related part and equipments .We have the capacity to execute large and important orders,yet we are conscientious enough to pay attention to the smallest requetments

Our experienced engineers and in house QC engineers also provide technical support on top of their general sales service,

We focus on the total needs of our clients from a particular industry,This reduces the need for most buyer to cope with multiple dealers for products of different size ,Variety ,Several different sources or products from various part of the world ,We also reduce the need for most buyers to deal with different salespeople and departments within the same trading company

Our Strength lies in Our People ,Our resources ,Our flexibility and our tireless commitment to serving our customers

API 5CT Oilfield Casing Welded Galvanized Steel Pipe 5.8m Length

API 5CT Oilfield Casing Welded Galvanized Steel Pipe 5.8m Length

API 5CT Oilfield Casing Welded Galvanized Steel Pipe 5.8m Length
