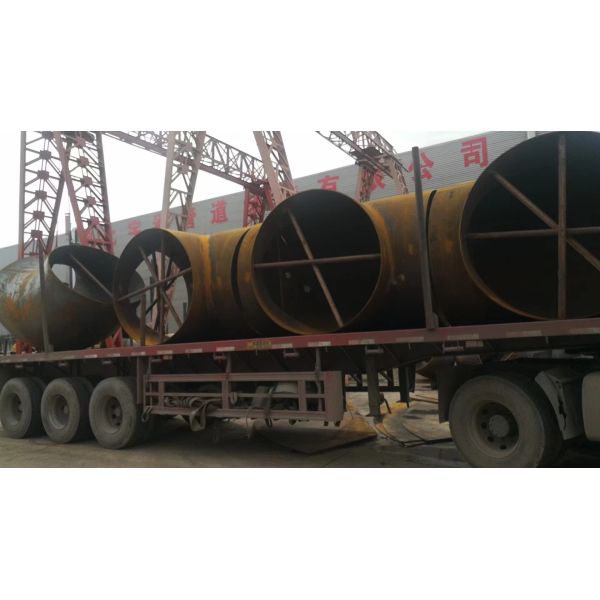

ASME B16.9 LSAW CS and alloy steel WELD 100% X-RAY 48inch xs Equal tee
ASME B16.9 LSAW CS and alloy steel WELD 100% X-RAY 48inch xs Equal tee
ASME B16.9 LSAW CS and alloy steel WELD 100% X-RAY 48inch xs Equal tee
ASME B16.9 LSAW CS and alloy steel WELD 100% X-RAY 48inch xs Equal tee
Specifications
Brand Name :
PLS
Model Number :
DN15-DN5000
Certification :
CE and ISO 9001:2008
Place of Origin :
Cangzhou,Hebei ,Pro,China
MOQ :
1PC
Price :
negotiate
Payment Terms :
different payment terms against different Client
Supply Ability :
500/pieces per Month
Delivery Time :
7- 15 days after Purchase Order ,have stock
Packaging Details :
in wooded cases or pallets, or as for clients' requirements
Connection :
Welding
Shape :
Equal
Size :
DN15-DN5000
Wall thickness :
Sch5S-Sch XXS
standard :
ANSI B16.9, ASME, JIS, DIN, EU, BS
Customized :
OEM, ODM
Surface treatment :
black painting, anti-rust oil
test :
X-ray detector,Ultrasonic flaw
Packaging :
In wooded cases or pallets, or as for clients' requirements
Applications :
Petroleum, chemical, power, gas,
Description

Product Description:

ASME B16.9 LSAW CS and alloy steel WELD 100% X-RAY Equal tee

ASME B16.9 Equal tee ;LSAW ttee CS qual tee ; alloy steel tee ;WELD 100% X-RAY Equal tee

Product Name LSAW WELD 100% X-RAY tee
Size

Seamless(SMLS) tee : 1/2"-24" ,DN15-DN600

Butt Welded Elbows (seam) :24”-96",DN600-DN1800
Type

LR 30,45,60,90,180 degree SR 30,45,60,90,180 degree

1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
Thickness

SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80.,

SCH100, SCH120, SCH140,SCH160, XXS
Standard ASME,ANSI B16.9;
DIN2605,2615,2616,2617,
JIS B2311 ,2312,2313;
EN 10253-1 ,EN 10253-2
Material ASTM

A234WP12,A234WP11,A234WP22,A234WP5,A420WPL6

A335 P1/P5/P9/P11/P12/P22/P91
DIN 1.7335,1.7380,1.0488(1.0566)
JIS PA22,PA23,PA24,PA25,PL380
GB

10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,

12CrMo, 12CrMoG, 12Cr1Mo

Surface

treatment

 Sand Rolling, Sand Blasting, Acid Cleaning,
Packing In wooded cases or pallets, or as for clients' requirements
Applications

Petroleum, chemical, machinery, boiler,electric power,

shipbuilding, papermaking, construction,etc.
Certification CE and ISO 9001:2008
Third part inspect BV,SGS,etc accept
Delivery time 7- 15 days after Purchase Order ,have stock
Special design as your drawing
Test Direct-reading Spectrograph,Hydrostatic testing machine, X-ray detector,Ultrasonic flaw detector,Magnetic particle detector,etc
Equipment

Press machine ,Bending machine,Pushing Machine,

electric bevelling machine Sand-blasting machine,etc
Product Name Carbon steel reducing tee 100 % x -ray
Size

Seamless(SMLS) Tee : 1/2"-24" ,DN15-DN600

Butt Welded Tees (seam) :24”-96",DN600-DN1800
Type

Equal tee , reducing tee

Thickness

SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80.,

SCH100, SCH120, SCH140,SCH160, XXS
Standard ASME,ANSI B16.9;
DIN2605,2615,2616,2617,
JIS B2311 ,2312,2313;
EN 10253-1 ,EN 10253-2
Material ASTM

A234WP12,A234WP11,A234WP22,A234WP5,A420WPL6

A335 P1/P5/P9/P11/P12/P22/P91
DIN 1.7335,1.7380,1.0488(1.0566)
JIS PA22,PA23,PA24,PA25,PL380
GB

10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,

12CrMo, 12CrMoG, 12Cr1Mo

Surface

treatment

 Sand Rolling, Sand Blasting, Acid Cleaning,
Packing In wooded cases or pallets, or as for clients' requirements
Applications

Petroleum, chemical, machinery, boiler,electric power,

shipbuilding, papermaking, construction,etc.
Certification CE and ISO 9001:2008
Third part inspect BV,SGS,etc accept
Delivery time 7- 15 days after Purchase Order ,have stock
Special design as your drawing
Test Direct-reading Spectrograph,Hydrostatic testing machine, X-ray detector,Ultrasonic flaw detector,Magnetic particle detector,etc
Equipment

Press machine ,Bending machine,Pushing Machine,

electric bevelling machine Sand-blasting machine,etc

DIMENSIONAL TOLERANCES STRAIGHT TEES ASME B16.9

Nominal Pipe Size 1/2 to 2½ 3 to 3½ 4 5 to 8 10 to 18 20 to 24 26 to 30 32 to 48
Outside Dia
at Bevel (D)		 +1.6
-0.8		 1.6 1.6 +2.4
-1.6		 +4
-3.2		 +6.4
-4.8		 +6.4
-4.8		 +6.4
-4.8
Inside Dia at End 0.8 1.6 1.6 1.6 3.2 4.8 +6.4
-4.8		 +6.4
-4.8
Center to End (C / M) 2 2 2 2 2 2 3 5
Wall Thk (t) Not less than 87.5% of Nominal Wall Thickness

Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.

Note:
MSS SP-43 only covers stainless steel buttweld fittings made for use with Schedule 5S and 10S pipe and Stub Ends suitable for use with Schedule 40S pipe, as defined in ASME B36.19. The dimensions and dimensional tolerances defined in MSS SP-43 are substantially the same as those in ASME B16.9 specifications from NPS 1/2 - NPS 24. Except with regard to the outside diameter at the bevel.

Company profile:

Our Focus on the total needs of our client and our emphasis is on the services and prompt solutions for all their critical purchasing requirements
.
We have an efficient and experienced team of staffs in China and regions concentrating on the trading of engineering steels and its related part and equipments .We have the capacity to execute large and important orders,yet we are conscientious enough to pay attention to the smallest requestments

Our experienced engineers and in house QC engineers also provide technical support on top of their general sales service,

We focus on the total needs of our clients from a particular industry,This reduces the need for most buyer to cope with multiple dealers for products of different size ,Variety ,Several different sources or products from various part of the world ,We also reduce the need for most buyers to deal with different salespeople and departments within the same trading company

Our Strength lies in Our People ,Our resources ,Our flexibility and our tireless commitment to serving our customers

OUR BUSINESS COVERAGE :

Oil&Gas Industry --(Exploration &Prodcution)

Petrochemical /Refinery Industry

Chemical /Pharmaceutical Plants

Marine&Offshore Industry

Precision Engineering Equipment Such as Pressure Vessel ,Heat Exchanges ,Columns ,Tower ,Tanks,etc

Nuclear Power Generation Industry

Clean Energy Generation (Windmill,solar ,Geo - Thermal)

Cross -country Pipe line

Industrial Plants

Pulp&Paper Industry

Waste &Desalination Plant

Smelting Plants /Steel Plants
